RK31114B by WIDIA
Call For Price
- Part Number: 1025459
- UPC: 00000027112809
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
RETENTION KNOB
Specifications
Details
Category:
Cutting Tools
Subcategory:
Cutting Tools Spare Parts and Blanks
Subtype:
Cutting Tool Spare Parts
Category Level 4:
Misc. Spare Parts
Adapter Style Machine Side-Marcom Calc:
EMPTY
ANSI Catalog Number:
RK31114B
Catalog Wrench Reference:
RKW40
Coolant Supply:
No
Hardware Type:
retention knob
Hdw System Size Workpiece Side:
40
ISO Catalog Number:
RK31114B
MAKTX (SAP Description):
RETENTION KNOB
SAP Material Number:
1025459

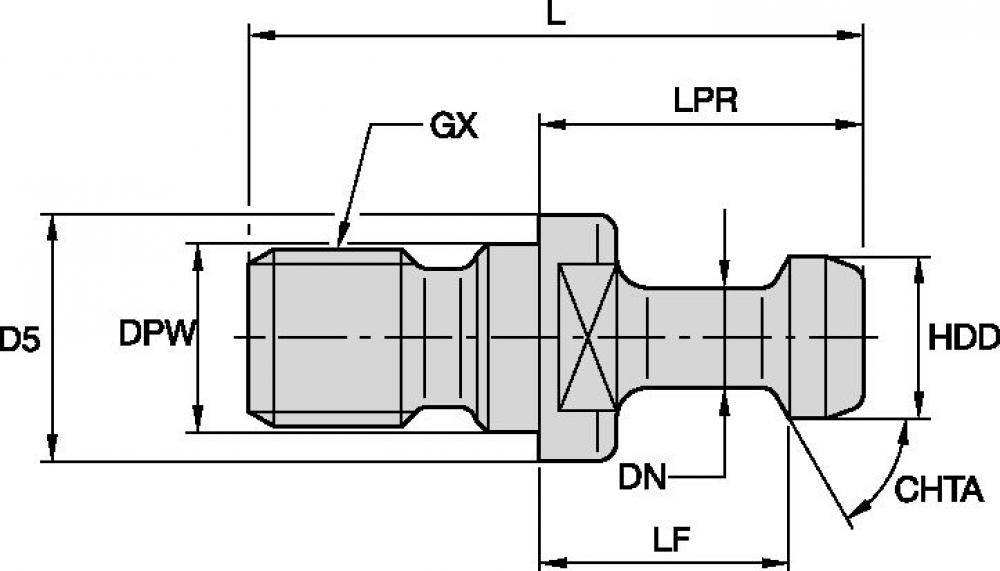

[CHTA]Conn Half Taper Angle:
90.000
[CUBMS]Unit of Tool:
IN - Inch
[D5]Body Dia. Machine Side In:
0.9380
[D5]Body Dia. Machine Side mm:
23.8250
[DN]Neck Diameter Inch:
0.3920
[DN]Neck Diameter Metric:
9.9570
[DPW]Pilot Dia Wkpc Side Inch:
0.6360
[DPW]Pilot Dia Wkpc Side mm:
16.1540
[GX]CL_CONN_THD_SIZE_WS_EXT:
5/8 - 11
[HDD]Head Diameter Inch:
0.5890
[HDD]Head Diameter Metric:
14.9610
[LF]Functional Length Inch:
0.9880
[LF]Functional Length Inch_156:
0.9880
[LF]Functional Length Metric:
25.0950
[LF]Functional Length Metric_157:
25.0950
[LPR]Protruding Length Inch:
1.2640
[LPR]Protruding Length Inch_164:
1.2640
[LPR]Protruding Length Metric:
32.1060
[LPR]Protruding Length Metric_165:
32.1060
[L] Overall Length Inch:
2.2500
[L] Overall Length Inch_101:
2.2500
[L] Overall Length Metric:
57.1500
[L] Overall Length Metric_102:
57.1500
[WF] Width of Flat Inch:
0.7500
[WF] Width of Flat Inch_206:
0.7500
[WF] Width of Flat Metric:
19.0500
[WF] Width of Flat Metric_207:
19.0500
Manufactured By:
WIDIA
