M370D200Z04S075WO12 by WIDIA
$
471
02
/ 1
- Part Number: 5352397
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

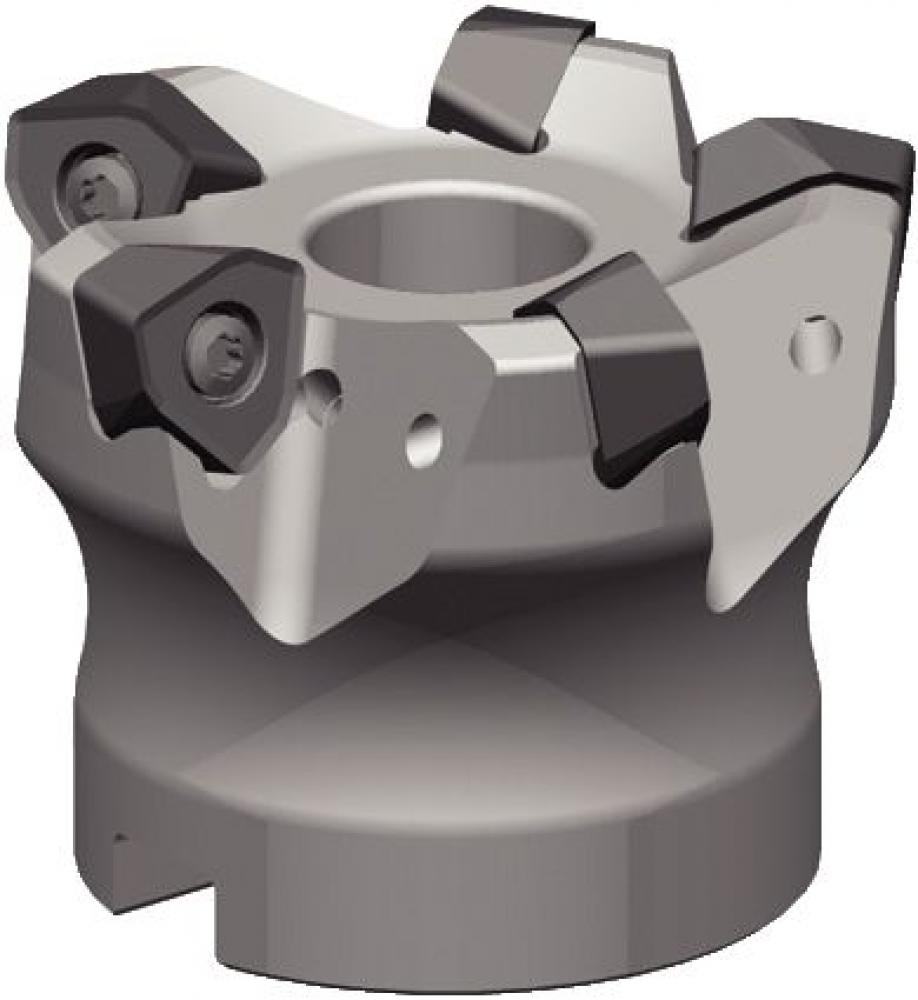

M370 CUTTER D=2.00 Z=4 SHELL MILL
M370D200Z04S075WO12 M370 CUTTER D=2.00 Z=4 SHELL MILL EDP# 5352397
M370D200Z04S075WO12 M370 CUTTER D=2.00 Z=4 SHELL MILL EDP# 5352397
Specifications
Details
Category:
Cutting Tools
Milling
Insert Shape:
X-Trigon WO_J 101.5
Number of Flutes:
4
Adapter Style Machine Side:
A-Socket Head Cap Screw
Adapter Style Machine Side-Marcom Calc:
A-Socket Head Cap Screw
Adapter Type Machine Side:
Shell Mill
ANSI Catalog:
M370D200Z04S075WO12
ANSI Catalog Number:
M370D200Z04S075WO12
Body Material Group:
Steel
Brand:
Widia
Catalog Gage Insert 1:
WOEJ120713_R__
Center Cutting Tool:
No Center Cutting
Clamping Type:
S - Screw Clamping
Collection:
M370 WO12 CT SM IN
Coolant Supply:
Yes
Engineering Tool Family:
M370 12
Hand of Tool:
R - Right
Helix Hand:
R - Right Hand Helix/Flute
Insert Shape - Marcom Calc:
Trigon WO_J 101.5
IntFace Catalog Gage Insert 1:
WOEJ120713_R__
ISO Catalog Number:
M370D200Z04S075WO12
Item Quantity:
1
MAR_PLATFORM_WID:
M370 Series
Max RPM:
19380
Maximum Ramping Angle:
3.6
Milling Type:
F-Face Mill (Shell Mill)
Number of Adjustable Inserts:
0
Number of Center Cutting Edges:
0
Number of Inserts:
4
[A1]Coolant Hole Dia. Exit In:
0.118
[A1]Coolant Hole Dia. Exit mm:
3
[AP1MAX]1st Max Cut Depth In:
0.078
[AP1MAX]1st Max Cut Depth mm:
2
[CUBMS]Unit of Tool:
IN - Inch
[CUBWS]Units of Tool (Extract):
IN - Inch
[D1MAX]Maximum Cutting Dia in:
2
[D1MAX]Maximum Cutting Dia mm:
50.8
[D1]Effective Cutting Dia In:
1.335
[D1]Effective Cutting Dia mm:
33.91
[D2]Body Diameter Max Inch:
1.883
[D2]Body Diameter Max Metric:
47.82
[D6] Hub Diameter Inch:
1.75
[D6] Hub Diameter Metric:
44.45
[D]Adapter/Shank/Bore Dia Frac:
3/4
[D]Adapter/Shank/Bore Dia Inch:
0.75
[D]Adapter/Shank/Bore Dia mm:
19.1
[GAMMAF] Radial Rake Angle:
9
[GAMMAP] Axial Rake Angle:
-11
[KRA] Lead Angle ANSI:
75
[KRI] Lead Angle ISO:
15
[L1]Gage Length Inch:
1.575
[LF]Functional Length Inch:
1.575
[LF]Functional Length Metric:
40
[LTA]Tool Assembly Length Inch:
1.575
[LTA]Tool Assembly Length mm:
40
[L] Overall Length Inch:
1.575
[L] Overall Length Metric:
40
[RT]Theoretical Cor Rad Prog I:
0.13
[RT]Theoretical Cor Rad Prog M:
3.2
Manufactured By:
WIDIA
