KM40CLNSEF

KM40CLNSEF by WIDIA

Call For Price

Part Number: 1024679
UPC: 00000027112809
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

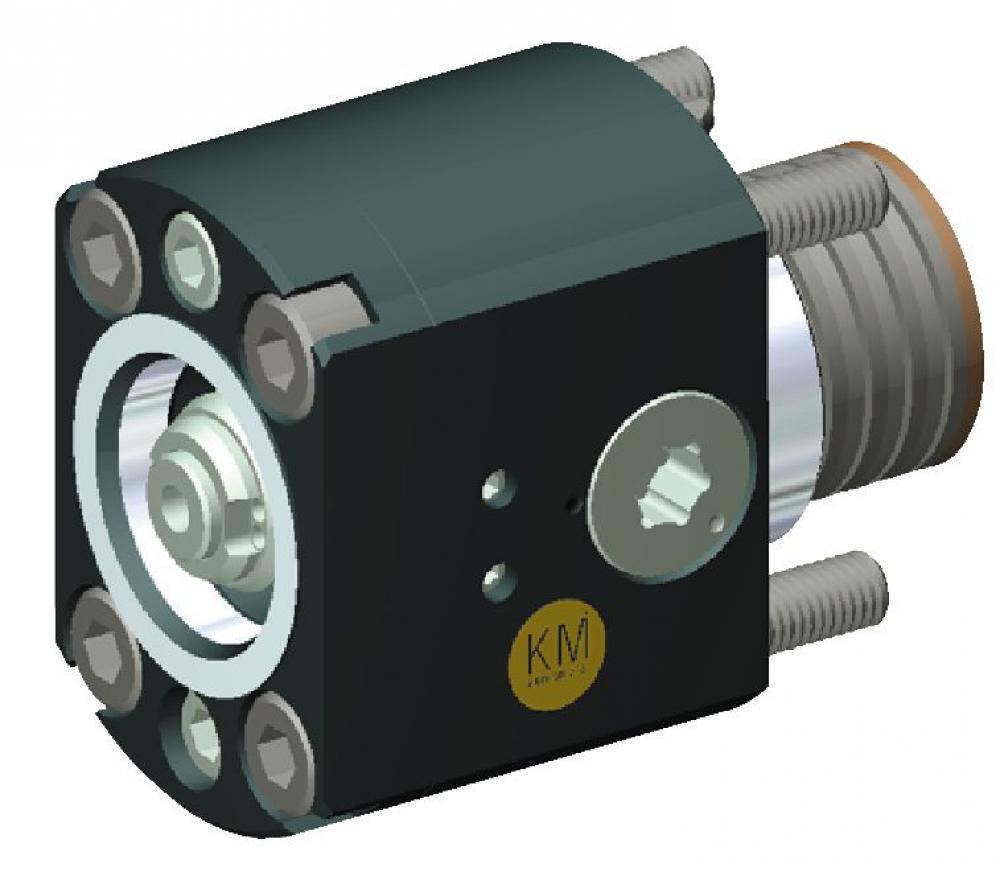

KM40 CLNS-EF FLANGE MOUNT-SIDE ACCESS

Specifications

Details

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

End Mill Holders, Adapters and Accessories

Actuation Screw ID Drive Size:

8 mm

Adapter Style Machine Side:

CLN-EF

Adapter Style Machine Side-Marcom Calc:

CLN-EF

Adapter Type Machine Side:

KMTL Flange Adapter

Adapter Type Workpiece Side:

KMT - KM Adapter

ANSI Catalog Number:

KM40CLNSEF

Coolant Entry Style:

Off-center Axial Coolant

Coolant Exit:

Off-center Axial Coolant

Coolant Supply:

Yes

Front End Tool Type:

KM Modular Adapter

Hand of Tool:

N - Neutral

ISO Catalog Number:

KM40CLNSEF

MAKTX (SAP Description):

KM40 CLNS-EF FLANGE MOUNT-SIDE ACCESS

SAP Material Number:

1024679

[A]Coolant Hole Dia Inch:

0.1970

[A]Coolant Hole Diameter Metric:

5.0000

[B1] Front Clearance In:

0.9449

[B1] Front Clearance mm:

24.0000

[B2]Overall Width Inch:

1.8898

[B2]Overall Width Metric:

48.0000

[B] Shank Width Fraction:

1.8898

[B] Shank Width Inch:

1.8898

[B] Shank Width Metric:

48.0000

[CSWS]System SizeWorkpieceSide:

KM40

[CUBMS]Unit of Tool:

MM - Metric

[D1]Adapt/Shank/BoreDiaWKPS In:

1.5748

[D1]Adapt/Shank/BoreDiaWKPS In_12:

1.5748

[D1]Adapt/Shank/BoreDiaWKPS mm:

40.0000

[D1]Adapt/Shank/BoreDiaWKPS mm_13:

40.0000

[D2]Body Dia 1 Workpce Side In:

2.7559

[D2]Body Dia 1 Workpce Side In_25:

2.7559

[D2]Body Dia 1 Workpce Side mm:

70.0000

[D2]Body Dia 1 Workpce Side mm_26:

70.0000

[D4]Bolt Circle 1 Inch:

2.1260

[D4]Bolt Circle 1 Metric:

54.0000

[D]Adapter/Shank/Bore Dia Frac:

1.5748

[D]Adapter/Shank/Bore Dia Inch:

1.5748

[D]Adapter/Shank/Bore Dia mm:

40.0000

[L1]Gage Length 1 Inch:

2.1654

[L1]Gage Length 1 Inch_123:

2.1654

[L1]Gage Length 1 Metric:

55.0000

[L1]Gage Length 1 Metric_124:

55.0000

[LF]Functional Length Inch:

2.1654

[LF]Functional Length Inch_158:

2.1654

[LF]Functional Length Metric:

55.0000

[LF]Functional Length Metric_159:

55.0000

[LPR]Protruding Length Inch:

2.1654

[LPR]Protruding Length Inch_166:

2.1654

[LPR]Protruding Length Metric:

55.0000

[LPR]Protruding Length Metric_167:

55.0000

[LS] Shank Length Inch:

1.1695

[LS] Shank Length Metric:

29.7050

[LTA]Tool Assembly Length Inch:

2.1654

[LTA]Tool Assembly Length mm:

55.0000

[L] Overall Length Inch:

3.3350

[L] Overall Length Inch_103:

3.3350

[L] Overall Length Metric:

84.7100

[L] Overall Length Metric_104:

84.7100

Manufactured By:

WIDIA
