12191062586

12191062586 by WIDIA

Call For Price

Part Number: 2022922
UPC: 00000027112809
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

KS-HOLD.GROOVING A=15 3 276-STP-2513

Specifications

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Face Groove and Turn Indexable Holders

Insert Shape:

T-Triangle 60

Adapter Style Machine Side:

Toolholder

Adapter Type Machine Side:

Square Shank

ANSI Catalog Number:

12191062586

Body Material Group:

Steel

Catalog Gage Insert 1:

TP..1603../TP..32..

Catalog Gage Insert 1_221:

TP..1603../TP..32..

Clamping Type:

C- Top Clamping

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Engineering Tool Family:

KS

Hand of Tool:

N - Neutral

Insert Shape - Marcom Calc:

Triangle 60

Insert Shape_228:

T-Triangle 60

ISO Catalog Number:

12191062586

MAKTX (SAP Description):

KS-HOLD.GROOVING A=15 3 276-STP-2513

Number of Insert Seats:

1

SAP Material Number:

2022922

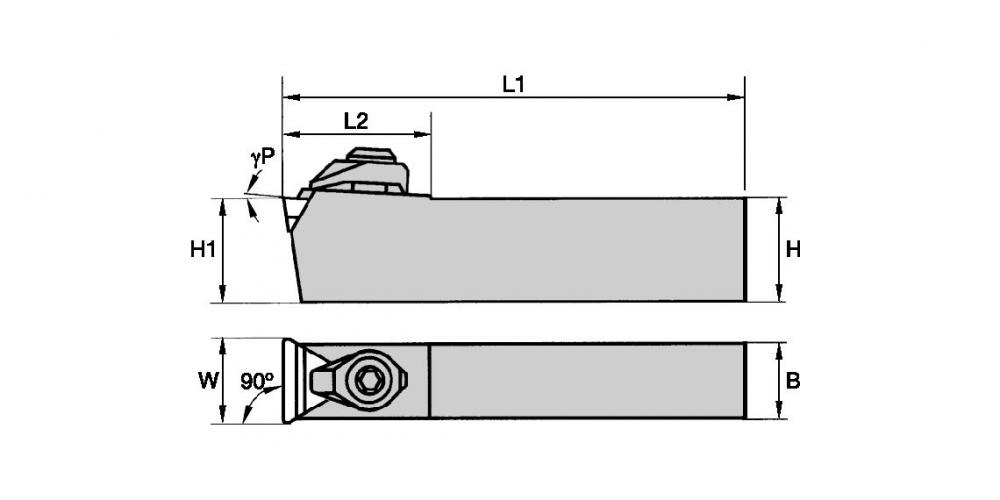

[B] Shank Width Fraction:

0.5118

[B] Shank Width Inch:

0.5118

[B] Shank Width Metric:

13.0000

[CUBMS]Unit of Tool:

MM - Metric

[F] F Dimension Fraction:

0

[F] F Dimension Inch:

0.0000

[F] F Dimension Inch_57:

0.0000

[F] F Dimension Metric:

0.0000

[F] F Dimension Metric_58:

0.0000

[GAMMAF] Radial Rake Angle:

0.000

[GAMMAF] Radial Rake Angle_68:

0.000

[GAMMAP] Axial Rake Angle:

3.000

[GAMMAP] Axial Rake Angle_72:

3.000

[H1] Cutting Height Inch:

0.98425

[H1] Cutting Height Inch_79:

0.98425

[H1] Cutting Height Metric:

25.0000

[H1] Cutting Height Metric_80:

25.0000

[H] Shank Height Inch:

0.9843

[H] Shank Height Metric:

25.0000

[KRA] Lead Angle ANSI:

0.000

[KRA] Lead Angle ANSI_95:

0.000

[KRI] Lead Angle ISO:

90.000

[KRI] Lead Angle ISO_98:

90.000

[L10] Cutting Edge Length Inch:

0.6495

[L10] Cutting Edge Length Inch_139:

0.6495

[L10] Cutting Edge Length mm:

16.4980

[L10] Cutting Edge Length mm_140:

16.4980

[L1] Tool Length Inch:

5.9055

[L1] Tool Length Inch_135:

5.9055

[L1] Tool Length Metric:

150.0000

[L1] Tool Length Metric_136:

150.0000

[L2] Head Length Inch:

1.0630

[L2] Head Length Inch_149:

1.0630

[L2] Head Length Metric:

27.0000

[L2] Head Length Metric_150:

27.0000

[LPR]Protruding Length Inch:

5.9055

[LPR]Protruding Length Inch_168:

5.9055

[LPR]Protruding Length Metric:

150.0000

[LPR]Protruding Length Metric_169:

150.0000

[LS] Shank Length Inch:

4.8425

[LS] Shank Length Metric:

123.0000

[L]Tool Overall Length Inch:

5.9055

[L]Tool Overall Length Inch_121:

5.9055

[L]Tool Overall Length mm:

150.0000

[L]Tool Overall Length mm_122:

150.0000

[W]Catalog Groove Width Inch:

0.6024

[W]Catalog Groove Width Inch_193:

0.6024

[W]Catalog Groove Width Metric:

15.3000

Manufactured By:

WIDIA
