Weldon shank adaptor : 5523857 | Aronson Campbell Industrial Supply

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Milling Holders

A1 Body diameter:

41,275 mm

A1_INCH Body diameter:

1,625 inch

ART_ID_TO type=others:

5012376;5012378;5012379;5012384;5012387;5012388;5012389;5012394;5012395;5012398;5012399;5012400;5012406;5012410;5012411;5012434;5012659;5012660;5012665;5012668;5029309;5029312;5040087;6418704;6418705;6418725;6418726;6424434;6424435;6424472;6424474;6424836;

B1 Body length 1:

37,389 mm

B1_INCH Body length 1:

1,47200787401575 inch

B3 Protruding length:

59,995 mm

B3_INCH Protruding length:

2,36200787401575 inch

B4 Overall length:

91 mm

B4_INCH Overall length:

3,58267716535433 inch

B71 Functional length:

59,995 mm

B71_INCH Functional length:

2,36200787401575 inch

BBD Balanced By Design:

0

BD Body diameter:

41,275 mm

BD_INCH Body diameter:

1,625 inch

BLD Tool style code:

607013

BMC Body material code:

S

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

500

C3 Connection diameter machine side:

50 mm

C3_INCH Connection diameter machine side:

1,96850393700787 inch

C4 Shank length:

30 mm

C4_INCH Shank length:

1,18110236220472 inch

C51 Connection code type workpiece side:

ZYL

C52 Connection code form at workpiece side:

10

C54 Connection code unit base workpiece side:

3

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

750

C71 Connection diameter min:

19,05 mm

C71_INCH Connection diameter min:

0,75 inch

CCFMS Connection code form at machine side:

1

CCFWS Connection code form at workpiece side:

10

CCMS Connection code machine side:

CCS01C0500$$$$

CCTMS Connection code type machine side:

CCS

CCTWS Connection code type workpiece side:

ZYL

CCWS Connection code workpiece side:

ZYL18R7500****

CNSC Coolant entry style code:

3

CONTENT_UNIT:

PCE

CUB Connection unit basis:

N

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

R

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

500

CZCWS Connection size code workpiece side:

750

D6 Rotational speed maximum:

20000 1/min

D7 Weight of item:

0,74 kg

D7_INCH Weight of item:

1,631404 lbs

d11 Connection size code:

0.750

d12 Body diameter:

1,625 inch

d1 Connection size code:

C5

Designation Tool designation:

C5-A391.20-15 060A

E2 Kappa:

0 °

EAN:

0591787968

FMT Form type workpiece side:

INT

H21 Coolant entry style code:

3

H22 Coolant exit style code:

1

J1 Standard:

ISO26623-1

J21 Article number:

C5-A391.20-15 060A

J22 Product designation:

941

J3 Company code:

W

J4 Connection code workpiece side:

ZYL10R7500****

J6 Connection code machine side:

CCS01C0500$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders Coromant Capto System SANDVIK - Screw mounting|D68AW

l16 Usable length:

1,472 inch

l4 Functional length:

2,362 inch

LF Functional length:

59,995 mm

LF_INCH Functional length:

2,36200787401575 inch

LPR Protruding length:

59,995 mm

LPR_INCH Protruding length:

2,36200787401575 inch

LS Shank length:

30 mm

LS_INCH Shank length:

1,18110236220472 inch

MANUFACTURER_AID:

C5-A391.20-15 060A

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

91 mm

OAL_INCH Overall length:

3,58267716535433 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Weldon shank adaptor C.-391.20 • inch • For shanks in accordance with DIN 6535 HB • ISO 26623

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022090

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

391.20-CAPTO-INCH

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

20000 1/min

SUPPLIER_AID:

5523857

SUPPLIER_ALT_AID:

5523857

TERRITORY:

US

TSYC Tool style code:

391.20-CAPTO-INCH

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

ISO 26623

UDX.BULLETTEXT_2:

For shanks in accordance with DIN 6535 HB

UDX.CATFAM_CODE:

C.-391.20

UDX.CATFAM_DESCR:

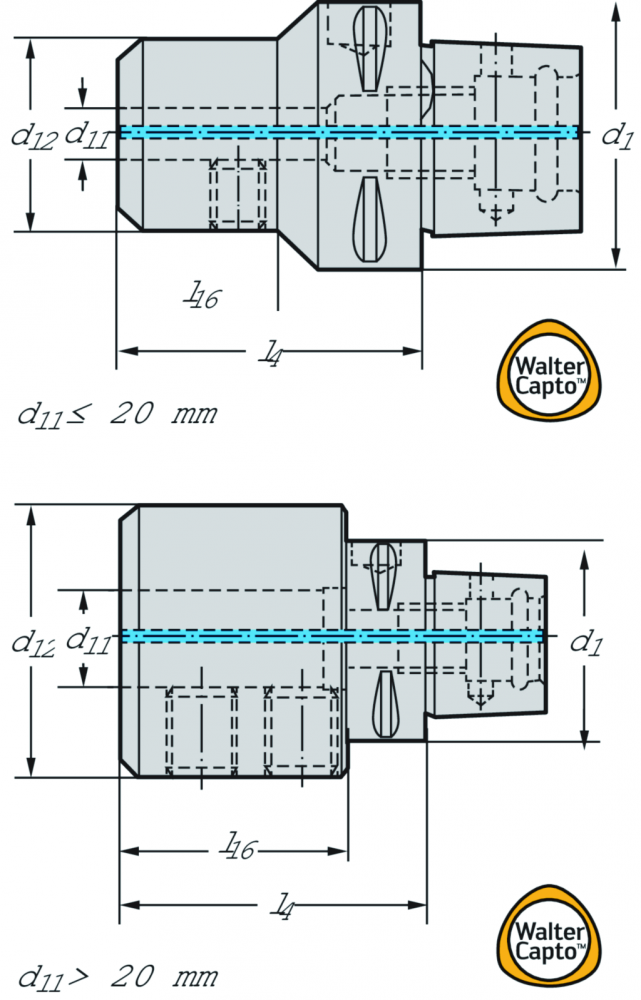

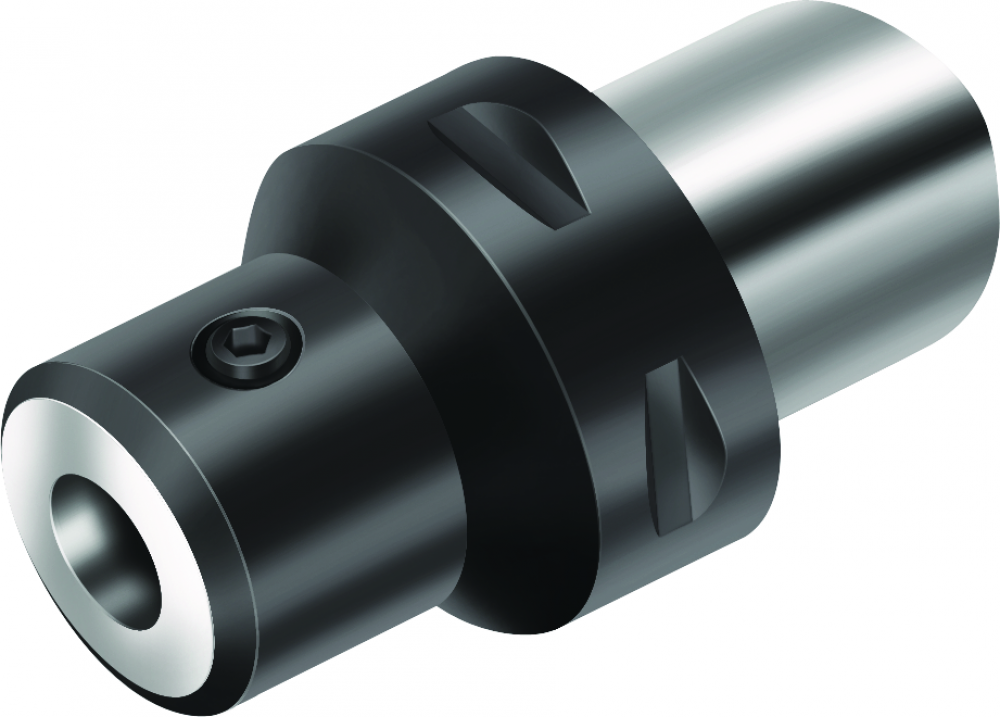

Weldon shank adaptor

UDX.DESCR_TOOL:

Walter Capto^TM

UDX.DISCOUNTGROUP:

070

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

1.6317

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.7559

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

5.1969

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

3.5368

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

39.4702

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.7559

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D68AW

WT Weight:

1,631 lbs

WT Weight of item:

0,74 kg

WT_INCH Weight of item:

1,631404 lbs

XYWD xyw plane distance:

-59,995 mm

XYWD_INCH xyw plane distance:

-2,36200787401575 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Manufactured By:

Walter Tool

For shanks in accordance with DIN 6535 HB

ISO 26623

ISO 26623|For shanks in accordance with DIN 6535 HB

Weldon shank adaptor by Walter Tool
