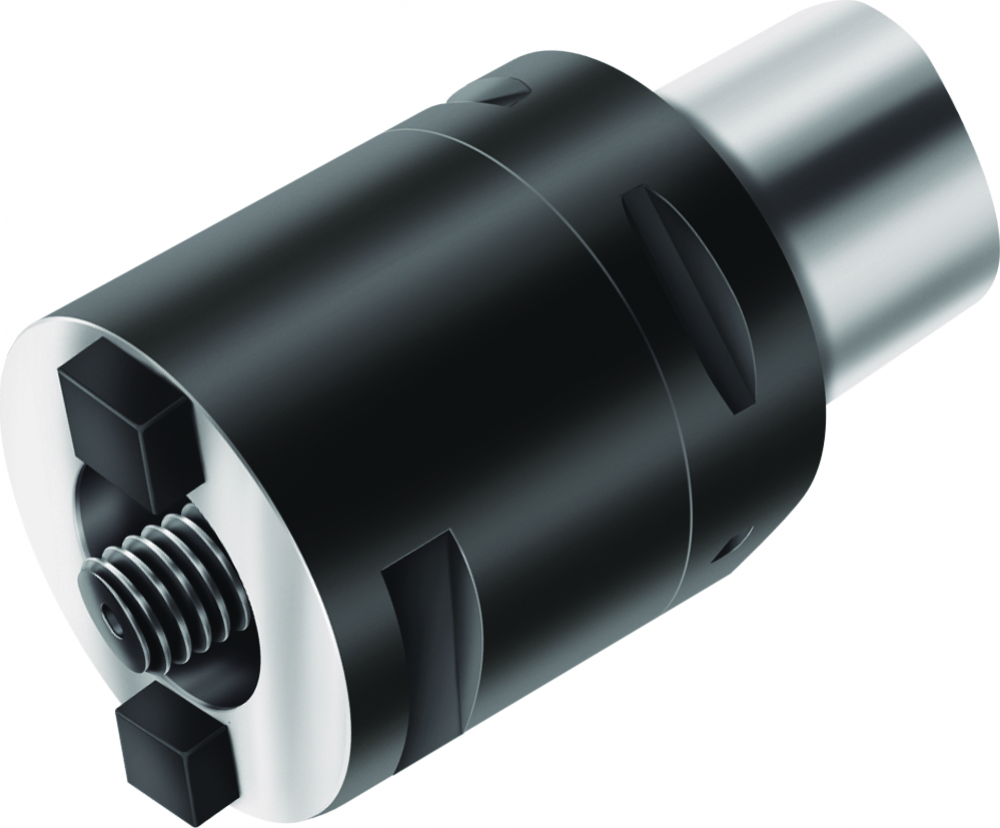

Walter CaptoTM master : 5906552 | Aronson Campbell Industrial Supply

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Milling Holders

A1 Body diameter:

80 mm

A1_INCH Body diameter:

3,1496062992126 inch

ART_ID_TO type=others:

5012390;5012391;5012402;5012403;5012436;5012437;5012661;5012662;5040088;5887232;6418707;6418717;6418728;6424436;6424438;6424475;6424837;6426218;6425676;6424833;6728021;6728022;6728031;5887230;5887231;8463584

B1 Body length 1:

70 mm

B1_INCH Body length 1:

2,75590551181102 inch

B3 Protruding length:

70 mm

B3_INCH Protruding length:

2,75590551181102 inch

B4 Overall length:

108 mm

B4_INCH Overall length:

4,25196850393701 inch

B71 Functional length:

70 mm

B71_INCH Functional length:

2,75590551181102 inch

BBD Balanced By Design:

0

BD Body diameter:

80 mm

BD_INCH Body diameter:

3,1496062992126 inch

BMC Body material code:

S

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

630

C3 Connection diameter machine side:

63 mm

C3_INCH Connection diameter machine side:

2,48031496062992 inch

C4 Shank length:

38 mm

C4_INCH Shank length:

1,49606299212598 inch

C51 Connection code type workpiece side:

NCT

C52 Connection code form at workpiece side:

1

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

800

CCFMS Connection code form at machine side:

1

CCFWS Connection code form at workpiece side:

1

CCMS Connection code machine side:

CCS01C0630$$$$

CCTMS Connection code type machine side:

CCS

CCTWS Connection code type workpiece side:

NCT

CCWS Connection code workpiece side:

NCT01C0800****

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

630

CZCWS Connection size code workpiece side:

800

D6 Rotational speed maximum:

30000 1/min

D7 Weight of item:

2,354 kg

D7_INCH Weight of item:

5,1896284 lbs

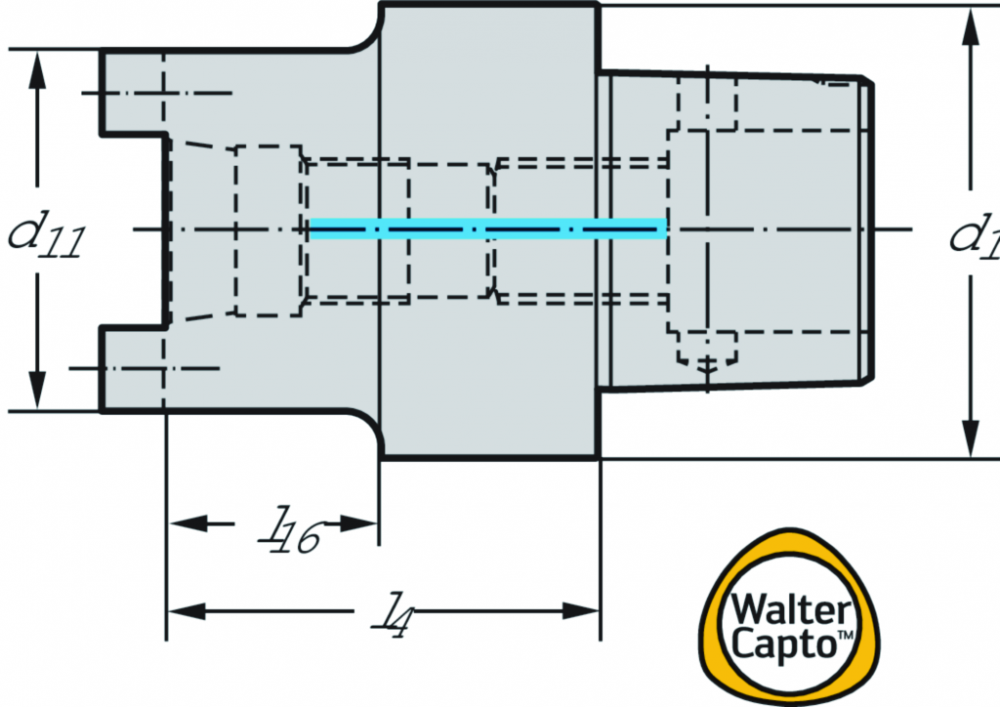

d11 Connection size code:

NCT 80

d1 Connection size code:

C6

Designation Tool designation:

A100M.8.63.070.80.C6

E2 Kappa:

0 °

EAN:

0559888850

FMT Form type workpiece side:

INT

G35 Mounting hole count:

1

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

J1 Standard:

DIN 4000-89 KENNZAHL

J11 Standard letter to the standard number:

B

J21 Article number:

A100M.8.63.070.80.C6

J3 Company code:

W

J4 Connection code workpiece side:

NCT01C0800****

J6 Connection code machine side:

CCS01C0630$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders Coromant Capto System SANDVIK - Novex-NC-Tools WALTER|A1100

l16 Usable length:

70 mm

l4 Functional length:

70 mm

LF Functional length:

70 mm

LF_INCH Functional length:

2,75590551181102 inch

LPR Protruding length:

70 mm

LPR_INCH Protruding length:

2,75590551181102 inch

LS Shank length:

38 mm

LS_INCH Shank length:

1,49606299212598 inch

MANUFACTURER_AID:

A100M.8.63.070.80.C6

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

108 mm

OAL_INCH Overall length:

4,25196850393701 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Walter Capto^TM master A100M.8 • metric • Modular NCT adaptor • ISO 26623

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022003

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

A100M.8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

30000 1/min

SUPPLIER_AID:

5906552

SUPPLIER_ALT_AID:

5906552

TERRITORY:

US

TSYC Tool style code:

A100M.8

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

ISO 26623

UDX.BULLETTEXT_2:

Modular NCT adaptor

UDX.CATFAM_CODE:

A100M.8

UDX.CATFAM_DESCR:

Walter Capto^TM master

UDX.DISCOUNTGROUP:

070

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

5.1906

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

3.2677

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

5.1181

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

5.3229

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

54.6510

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

3.2677

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

A1100

WT Weight:

2,35 kg

WT Weight of item:

2,354 kg

WT_INCH Weight of item:

5,1896284 lbs

XYWD xyw plane distance:

-70 mm

XYWD_INCH xyw plane distance:

-2,75590551181102 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Manufactured By:

Walter Tool

ISO 26623

ISO 26623|Modular NCT adaptor

Modular NCT adaptor

Walter CaptoTM master by Walter Tool

Walter Capto^TM master by Walter Tool
