Turning tools – Screw clamping by Walter Tool
Call For Price
- Part Number: 5336062
- UPC:
- Availability: Nothing
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

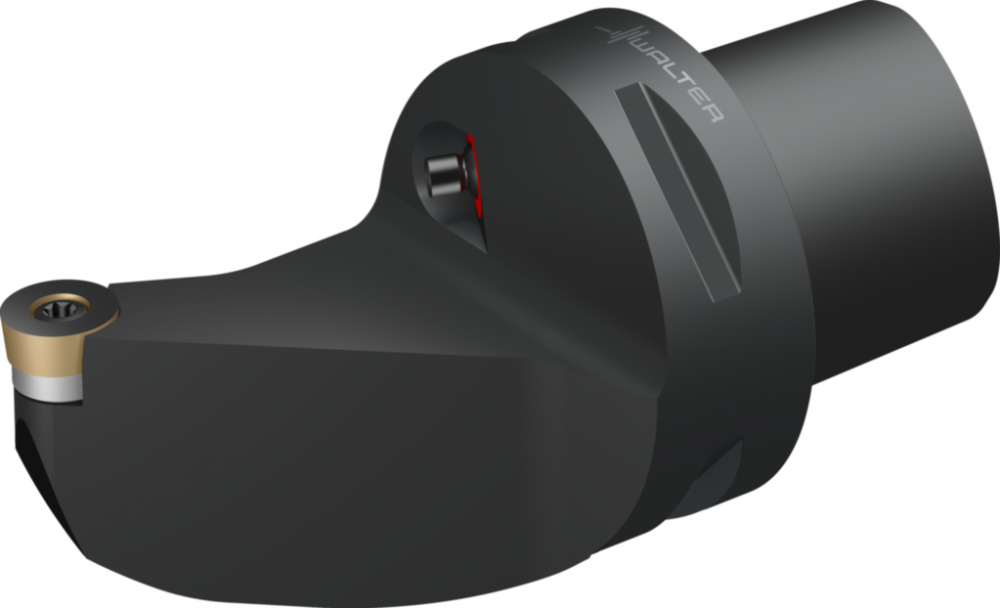

Turning tools – Screw clamping C6-SRSCL-45065-16
Turning tools – Screw clamping C...-SRSC • Walter Turn • metric • Walter CaptoTM ISO 26623 • ?=0° • Left • C6 • round insert • RC .. 1606 ..
Turning tools – Screw clamping C...-SRSC • Walter Turn • metric • Walter CaptoTM ISO 26623 • ?=0° • Left • C6 • round insert • RC .. 1606 ..
Specifications
Details
Category:
Turning
Subcategory:
Indexable Cutting Tools
Subtype:
Turning Toolholders
A2 Functional width:
45 mm
A2_INCH Functional width:
1,77165354330709 inch
A3 Functional length:
65 mm
A3_INCH Functional length:
2,55905511811024 inch
A4 Functional height:
0 mm
A4_INCH Functional height:
0 inch
ART_ID_TO type=consists_of:
5040976,5042271,5334328,5334329,5334356
ART_ID_TO type=others:
6438759, ;6651106, ;6917305, ;6917306, ;6958563, ;8205017, ;8205018, ;8205019, ;8205020, ;8205021, ;8205022, 5012390;5012391;5012402;5012403;5012436;5012437;5012661;5012662;5040088;5887232;6418707;6418717;6418728;6424436;6424438;6424475;6424837;6426218;642
B3 Protruding length:
103 mm
B3_INCH Protruding length:
4,05511811023622 inch
B5 Overall length:
103 mm
B5_INCH Overall length:
4,05511811023622 inch
BLD Tool style code:
8
BMC Body material code:
S
C11 Connection code type machine side:
CCS
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
9
C15 Connection code style machine side:
5
C2 Connection size code machine side:
630
CICT Cutting item count:
1
CNSC Coolant entry style code:
1
CONTENT_UNIT:
PCE
CP Coolant pressure:
80 MPa
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
C
CURRENCY:
USD
CXSC Coolant exit style code:
6
CZCMS Connection size code machine side:
630
D7 Weight of item:
1,159 kg
D7_INCH Weight of item:
2,5551314 lbs

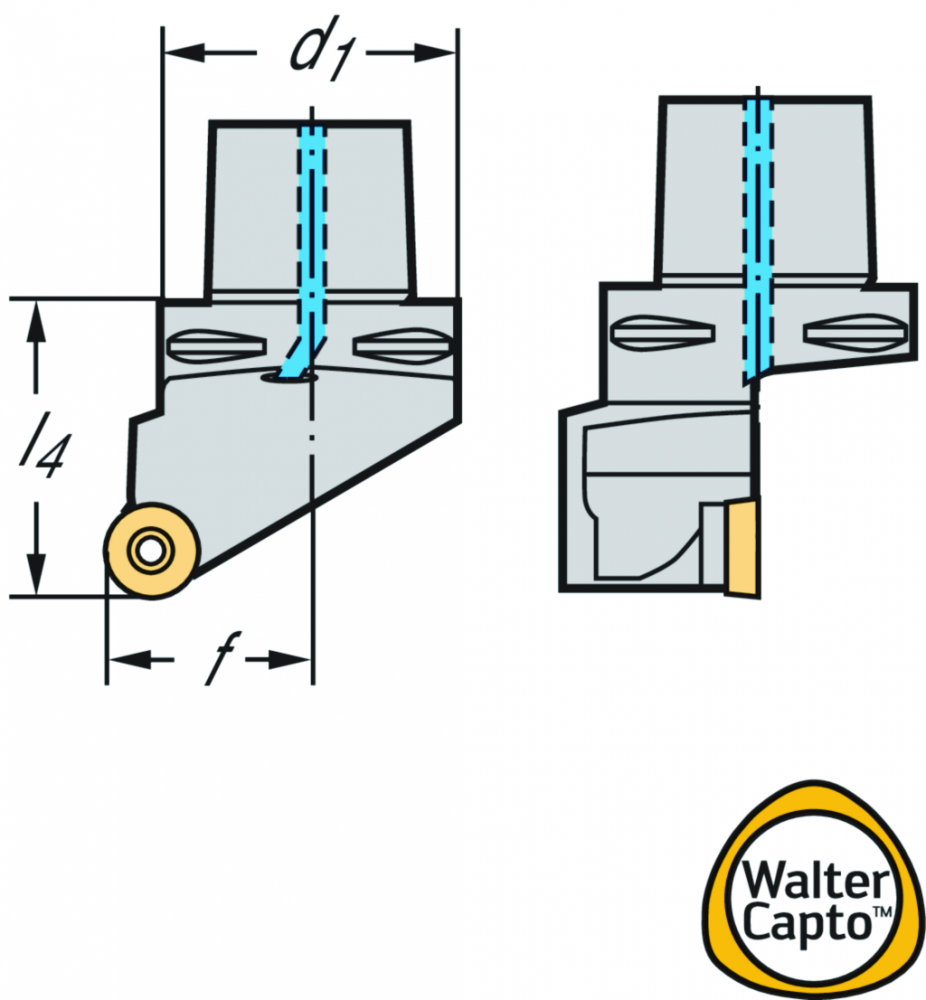

d<sub>1</sub> Connection size code:
C6
D<sub>min2</sub> Minimum diameter:
190 mm
D<sub>min</sub> Minimum diameter:
175 mm
Designation Tool designation:
C6-SRSCL-45065-16
DMIN Minimum bore diameter:
190 mm
DMIN_INCH Minimum bore diameter:
7,48031496062992 inch
E1 Tool cutting edge angle:
0 °
E2 Tool cutting edge angle type code:
B
E4 Rake angle orthogonal:
0 °
E5 Inclination angle:
0 °
EAN:
0590378967
f Functional width:
45 mm
F1 Cutting direction:
L
F2 Tool holder shape code:
G
F5 Clamping type code:
S
FMTMS Form type machine side:
EXT
GAMO Rake angle orthogonal:
0 °
H21 Coolant entry style code:
1
H22 Coolant exit style code:
6
HAND Cutting direction:
L
HF Functional height:
0 mm
HF_INCH Functional height:
0 inch
Insert seat size Insert seat size:
16
J1 Standard:
ISO26623-1
J21 Article number:
C6-SRSCL-45065-16
J22 Product designation:
166
J3 Company code:
W
J41 Insert interface code:
ISO$RC1606M03****M0
J42 Master insert identification:
RCMT 16 06 M0
J6 Connection code machine side:
CCS01C0630$$$$
J7 Data chip provision:
0
J8 Machining operation:
DFA
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
0 °
KEYWORD:
Tool Item|Turning|Walter Turn|Tool heads for turning, external|D61PS
l<sub>4</sub> Functional length:
65 mm
LAMS Inclination angle:
0 °
LF Functional length:
65 mm
LF_INCH Functional length:
2,55905511811024 inch
LPR Protruding length:
103 mm
LPR_INCH Protruding length:
4,05511811023622 inch
MANUFACTURER_AID:
C6-SRSCL-45065-16
MIID Master insert identification:
RCMT 16 06 M0
NOI Insert index count:
400
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-90
OAL Overall length:
103 mm
OAL_INCH Overall length:
4,05511811023622 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Turning tools – Screw clamping C...-SRSC • Walter Turn • metric • Walter CaptoTM ISO 26623 • κ=0° • Left
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181008
REFERENCE_FEATURE_GROUP_ID_GTC:
TRNGEI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153308
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112809
REFERENCE_FEATURE_GROUP_ID_Walter:
SRSCL-CAPTO-AUSSEN
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RMPX Ramping angle maximum:
27 °
SC Insert shape code:
R
SSC Insert seat size code:
16
SUPPLIER_AID:
5336062
SUPPLIER_ALT_AID:
5336062
TERRITORY:
US
TQ Torque:
6,4 Nm
TQ_INCH Torque:
56,64477312 lbf in
TSYCISO Tool style code:
SRSCL-CAPTO-AUSSEN
Type Possible indexable inserts:
RC . T1606M0 ..
UDX.APPAREA:
Turning
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Walter CaptoTM
UDX.CATFAM_CODE:
C...-SRSC
UDX.CATFAM_DESCR:
Turning tools – Screw clamping
UDX.DESCR_APPLICATION:
First choice for low cutting pressures/small-diameter shafts
UDX.DESCR_BENEFITS:
Torx Plus screw clamping for transmitting higher tightening torques;The indexable insert and shim can be replaced using the same wrench;Fewer assembly parts are required
UDX.DESCR_TOOL:
For indexable inserts with positive basic shape;Walter CaptoTM tool with screw clamping (S)
UDX.DISCOUNTGROUP:
065
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
2.5556
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
3.7402
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
5.1181
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
2.5799
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
71.5961
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
3.7402
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
D61PS
WF Functional width:
45 mm
WF_INCH Functional width:
1,77165354330709 inch
WT Weight of item:
1,159 kg
WT_INCH Weight of item:
2,5551314 lbs
XYWD xyw plane distance:
-65 mm
XYWD_INCH xyw plane distance:
-2,55905511811024 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
45 mm
YZWD_INCH yzw plane distance:
1,77165354330709 inch
γ Orthogonal rake angle:
0 °
λ<sub>s</sub> Inclination angle:
0 °
Manufactured By:
Walter Tool
Other Details
Walter CaptoTM
