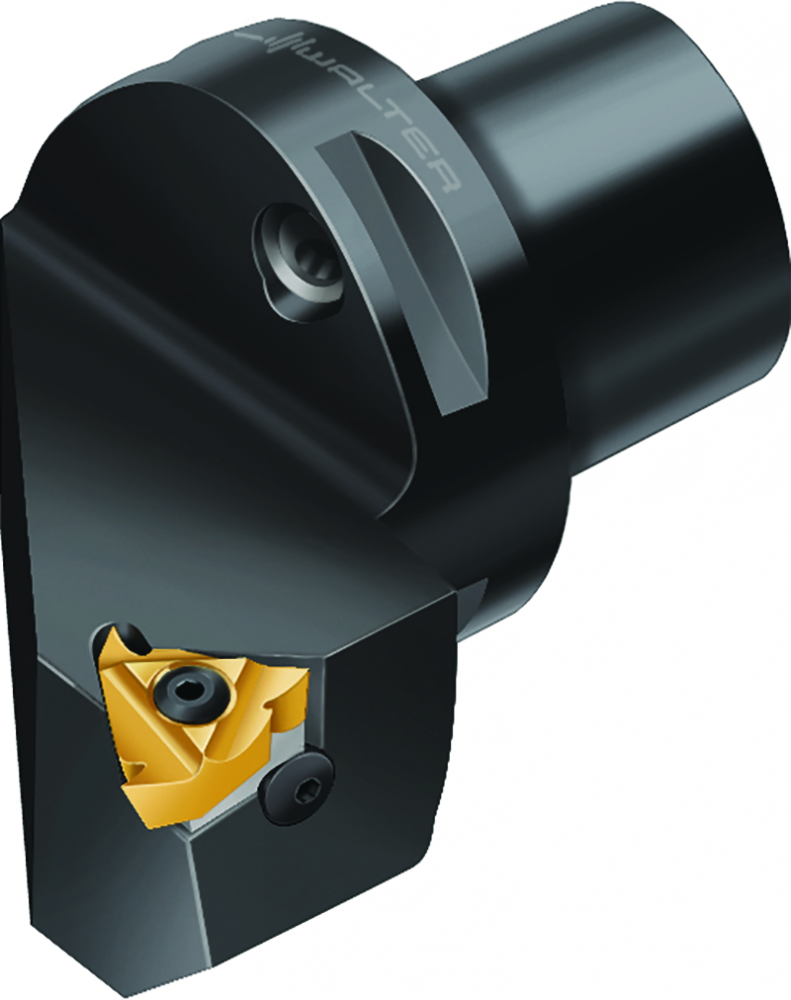

Turning tools – External thread : 5015091 | Aronson Campbell Industrial Supply

Category:

Turning

Subcategory:

External Turning

Subtype:

External Threading Toolholders

A2 Functional width:

22 mm

A2_INCH Functional width:

0,866141732283465 inch

A3 Functional length:

40 mm

A3_INCH Functional length:

1,5748031496063 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

ALP Clearance angle axial:

10 °

ART_ID_TO type=consists_of:

5006508,5010082,5042272,6039277,6050513,7027653

ART_ID_TO type=others:

5010085, ;5010089, ;5010093, ;5010097, ;5010101, ;5010105, ;5010109, ;5012670, ;5012673, ;5012676, ;5012679, ;5012680, ;5012685, ;5012686, ;5012691, ;5012692, ;5012697, ;5012698, ;5012703, ;5012704, ;5012709, ;5012710, ;5012715, ;5012716, ;5012721, ;501272

B3 Protruding length:

59 mm

B3_INCH Protruding length:

2,32283464566929 inch

B5 Overall length:

59 mm

B5_INCH Overall length:

2,32283464566929 inch

BLD Tool style code:

9

BMC Body material code:

S

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

320

CCMS Connection code machine side:

CCS01C0320$$$$

CICT Cutting item count:

1

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CP Coolant pressure:

10 MPa

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

320

D7 Weight of item:

1,455 kg

D7_INCH Weight of item:

3,207693 lbs

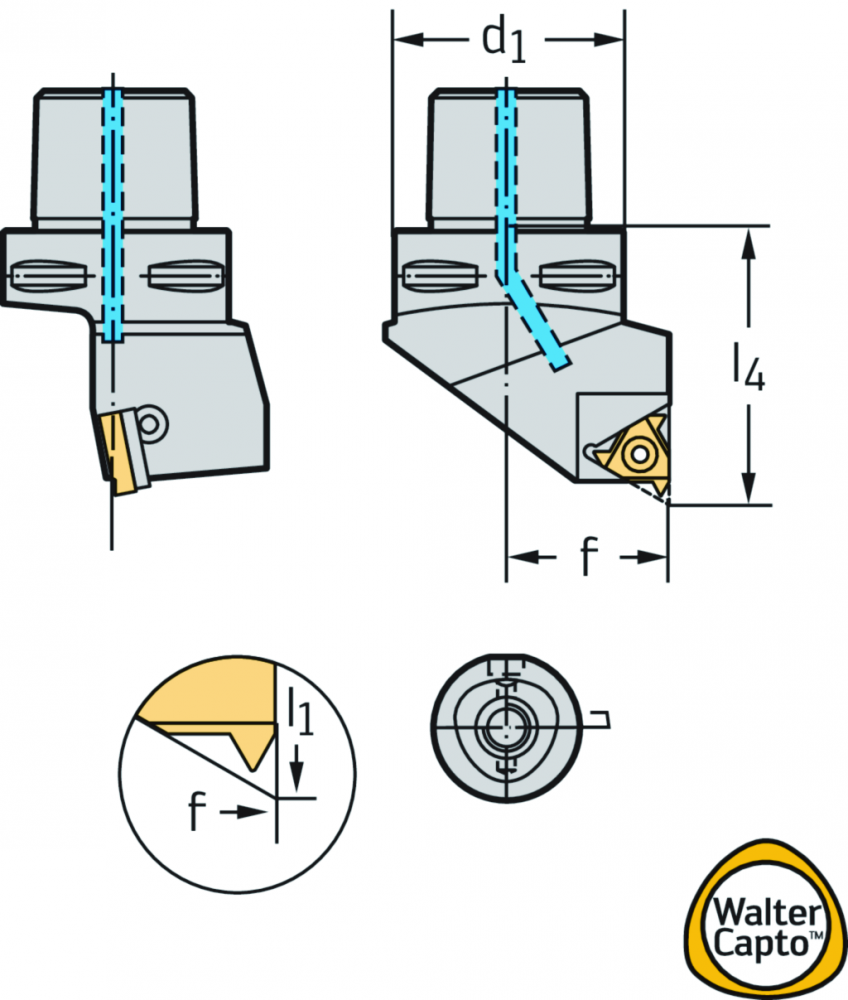

d<sub>1</sub> Connection size code:

C3

Designation Tool designation:

C3-NTS-SEL22040-16

DHD Drop head design:

0

E1 Tool cutting edge angle:

90 °

E2 Tool cutting edge angle type code:

E

EAN:

0418295965

f Functional width:

22 mm

F1 Cutting direction:

L

F2 Tool holder shape code:

G

F3 Drop head design:

0

F5 Clamping type code:

S

FMT Form type machine side:

EXT

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

HAND Cutting direction:

L

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

IIC Insert interface code:

WR$$NTSE16**3L*****

Insert size Insert size:

16

J1 Standard:

ISO26623-1

J21 Article number:

C3-NTS-SEL22040-16

J22 Product designation:

470

J3 Company code:

W

J41 Insert interface code:

WR$$NTSE16**3L*****

J42 Master insert identification:

NTS-E-16

J6 Connection code machine side:

CCS01C0320$$$$

J7 Data chip provision:

0

J8 Machining operation:

DGA

KAP Kappa:

0 °

KEYWORD:

Tool Item|Threading|Walter NTS|Tool heads, tap turning ext.|D73NS

l<sub>4</sub> Projection length:

40 mm

LF Functional length:

40 mm

LF_INCH Functional length:

1,5748031496063 inch

LPR Protruding length:

59 mm

LPR_INCH Protruding length:

2,32283464566929 inch

MANUFACTURER_AID:

C3-NTS-SEL22040-16

MIID Master insert identification:

NTS-E-16

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

59 mm

OAL_INCH Overall length:

2,32283464566929 inch

ORDER_UNIT:

PCE

PHI Phi:

-90 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Turning tools – External thread C...-NTS-SE • Standard position • Walter Capto^TM • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181009

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181009

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNTHEI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

NTS-SE-16-CAPTO

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

-1,5 °

SC Insert shape code:

T

SSC Insert seat size code:

16

SUPPLIER_AID:

5015091

SUPPLIER_ALT_AID:

5015091

TERRITORY:

US

THDH Thread hand:

RH

TSYC Tool style code:

NTS-SE-16-CAPTO

Type Possible indexable inserts:

TS16-E

UDX.APPAREA:

Threading

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Walter Capto^TM

UDX.BULLETTEXT_2:

Standard position

UDX.CATFAM_CODE:

C...-NTS-SE

UDX.CATFAM_DESCR:

Turning tools – External thread

UDX.DESCR_APPLICATION:

External thread

UDX.DESCR_BENEFITS:

Excellent thread quality thanks to precision-ground indexable insert

UDX.DESCR_TOOL:

Standard inclination angle 1.5°;C . . . -NTS-SE Walter Capto^TM external thread holder

UDX.DISCOUNTGROUP:

065

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

3.2083

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.7559

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

6.0236

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

3.3913

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

45.7495

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.7559

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D73NS

WT Weight of item:

1,455 kg

WT_INCH Weight of item:

3,207693 lbs

XYWD xyw plane distance:

-40 mm

XYWD_INCH xyw plane distance:

-1,5748031496063 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

22 mm

YZWD_INCH yzw plane distance:

0,866141732283465 inch

Manufactured By:

Walter Tool

Standard position

Walter Capto^TM

Walter Capto^TM|Standard position

Turning tools – External thread by Walter Tool
