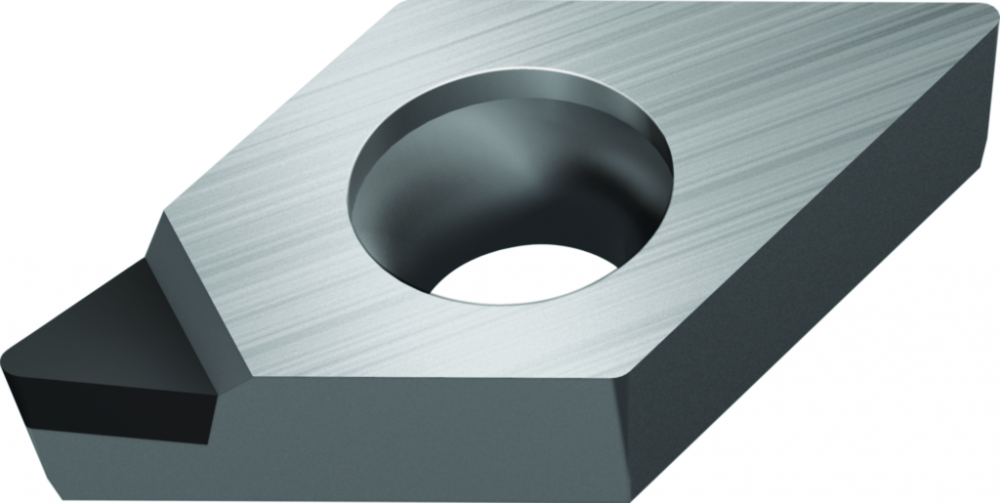

Turning Insert PCD – Positive rhombic 55° : 6674448 | Aronson Campbell Industrial Supply

Category:

Turning

Subcategory:

External Turning

Subtype:

Turning Indexable Inserts

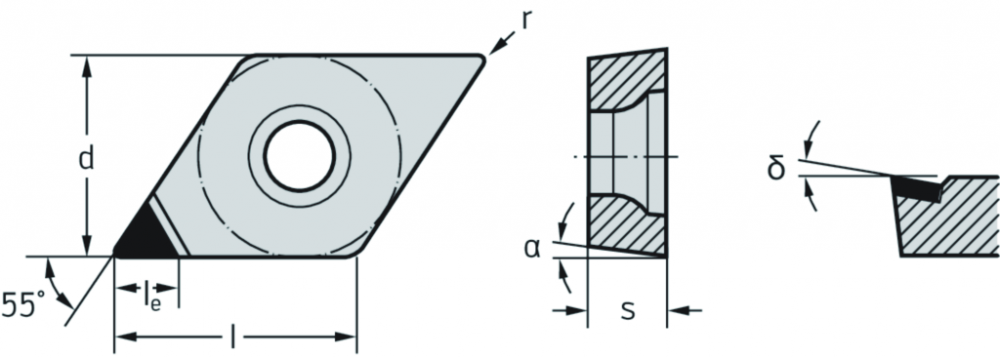

A1 Insert included angle:

55 °

A2 Clearance angle major:

7 °

a<sub>p</sub> Depth of cut:

0.1–3.0 mm

AN Clearance angle major:

7 °

B1 Cutting edge length:

11,628 mm

B1_INCH Cutting edge length:

0,457795275590551 inch

B3 Inscribed circle diameter:

9,525 mm

B3_INCH Inscribed circle diameter:

0,375 inch

BLD Tool style code:

3

C1 Insert thickness:

3,969 mm

C1_INCH Insert thickness:

0,156259842519685 inch

CBMD Chip breaker manufacturers designation:

T-FS

CECC Cutting edge condition code:

F

CEDC Cutting edge count:

1

CNC Corner count:

1

COATING Coating:

PCD

CONTENT_UNIT:

PCE

CSP Coolant supply property:

0

CURRENCY:

USD

D1 Corner radius:

0,4 mm

D1 Fixing hole diameter:

4,4 mm

D1_INCH Corner radius:

0,015748031496063 inch

D1_INCH Fixing hole diameter:

0,173228346456693 inch

D7 Insert rake angle:

10 °

D75 Weight of item:

0,004 kg

D75_INCH Weight of item:

0,0088184 lbs

Designation Designation:

DCGT11T304FS-1 WDN10

E41 Cutting edge condition code:

F

E6 Chip breaker face count:

1

E7 Cutting edge effective length:

4 mm

E7_INCH Cutting edge effective length:

0,15748031496063 inch

E9 Chip breaker manufacturers designation:

T-FS

EAN:

0761047945

EPSR Insert included angle:

55 °

f Feed rate:

0.03–0.25 mm

F1 Insert hand:

N

F2 Insert index count:

1

G1 Tolerance class insert:

G

G4 Insert thickness total:

3,969 mm

G4_INCH Insert thickness total:

0,156259842519685 inch

G5 Insert mounting style code:

3

G6 Fixing hole diameter:

4,4 mm

G6_INCH Fixing hole diameter:

0,173228346456693 inch

GRADE Grade manufacturer's designation:

WDN10

GRDPRIO Standard designation of the grade, main ap:

-

H11 Standard designation of the grade, main applic:

-

H2 Coolant supply property:

0

H3 Grade manufacturer's designation:

WDN10

H5 Coating:

PCD

H6 Tipped cutting edge code:

S

HAND Insert hand:

N

IC Inscribed circle diameter:

9,525 mm

IC_INCH Inscribed circle diameter:

0,375 inch

IFS Insert mounting style code:

3

IIC Insert interface code:

ISO$DC11T3043NB$$04

J1 Standard:

-

J11 Standard designation:

DCGT11T304

J21 Article number:

DCGT11T304FS-1 WDN10

J3 Company code:

W

J6 Connection code machine side:

ISO$DC11T3043NB$$04

KAP Kappa:

0 °

KEYWORD:

Insert|Turning||Rhombic inserts|P8DC

L Cutting edge length:

11,628 mm

l Cutting edge length:

11,63 mm

l<sub>e</sub> Limited cutting edge length:

4 mm

LE Cutting edge effective length:

4 mm

LE_INCH Cutting edge effective length:

0,15748031496063 inch

L_INCH Cutting edge length:

0,457795275590551 inch

MANUFACTURER_AID:

DCGT11T304FS-1 WDN10

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-76

Number of cutting edges Number of cutting edges:

1

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

2

QUANTITY_MIN:

2

r Radius:

0,4 mm

RE Corner radius:

0,4 mm

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Turning Insert PCD – Positive rhombic 55° DCGT ...-T-FS

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21182003

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21182003

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21182003

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21011901

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21011901

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21011901

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21182003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21182003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21182003

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21182003

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21182003

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21182003

REFERENCE_FEATURE_GROUP_ID_GTC:

INSI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23242105

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23242105

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171618

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153309

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171618

REFERENCE_FEATURE_GROUP_ID_Walter:

DCGT_FS-1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RE_INCH Corner radius:

0,015748031496063 inch

RHO Rho:

0 °

S Insert thickness:

3,969 mm

S1 Insert thickness total:

3,969 mm

S1_INCH Insert thickness total:

0,156259842519685 inch

SSC Insert seat size code:

11

SUPPLIER_AID:

6674448

SUPPLIER_ALT_AID:

6674448

S_INCH Insert thickness:

0,156259842519685 inch

TC Tolerance class insert:

G

TCE Tipped cutting edge code:

S

TERRITORY:

US

TSYC Tool style code:

DCGT_FS-1

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

DCGT

UDX.CATFAM_DESCR:

Turning Insert PCD – Positive rhombic 55°

UDX.DESCR_APPLICATION:

Finishing operation

UDX.DESCR_BENEFITS:

Extremely low cutting forces due to 7°–10° rake angle

UDX.DESCR_GEOMETRY:

Sharp cutting edge;PCD finishing insert with fully ground circumference in G tolerance

UDX.DISCOUNTGROUP:

025

UDX.ITEMTYPE:

Insert

UDX.NET_WEIGHT:

.0088

UDX.NET_WEIGHT_UNIT:

LBS

UDX.ORDERINGCODEANSI:

DCGT3(2.5)1FS-1 WDN10

UDX.PACKAGING_HEIGHT:

.5906

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

4.0157

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.0485

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

7.0025

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.9528

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

P8DC

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

No application

UDX.RANKING_ISO_M:

No application

UDX.RANKING_ISO_N:

No application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

No application

UDX.RANKING_ISO_S:

No application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

good

UDX.WORKING_CONDITION_ISO_O:

good

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

WEP Wiper edge property:

0

WT Weight of item:

0,004 kg

WT_INCH Weight of item:

0,0088184 lbs

XYWD xyw plane distance:

0 mm

XYWD_INCH xyw plane distance:

0 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

α Clearance angle major:

7 °

δ Delta:

10 °

Manufactured By:

Walter Tool

Turning Insert PCD – Positive rhombic 55° by Walter Tool
