SK adaptor – Vibration-damped : 7835007 | Aronson Campbell Industrial Supply

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Milling Holders

A1 Body diameter:

48 mm

A1_INCH Body diameter:

1,88976377952756 inch

A4 Flange diameter:

63,55 mm

A4_INCH Flange diameter:

2,50196850393701 inch

ART_ID_TO type=accessories:

5008434,5008699

ART_ID_TO type=consists_of:

5008699

B1 Body length 1:

190,9 mm

B1_INCH Body length 1:

7,51574803149606 inch

B3 Protruding length:

210 mm

B3_INCH Protruding length:

8,26771653543307 inch

B4 Overall length:

297,4 mm

B4_INCH Overall length:

11,7086614173228 inch

B71 Functional length:

210 mm

B71_INCH Functional length:

8,26771653543307 inch

BBD Balanced By Design:

0

BD Body diameter:

48 mm

BD_INCH Body diameter:

1,88976377952756 inch

C11 Connection code type machine side:

SKG

C12 Connection code form at machine side:

17

C13 Connection thread nominal size machine side:

M16

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

400

C3 Connection diameter machine side:

22 mm

C3_INCH Connection diameter machine side:

0,866141732283465 inch

C4 Shank length:

19 mm

C4_INCH Shank length:

0,748031496062992 inch

C51 Connection code type workpiece side:

FDA

C52 Connection code form at workpiece side:

12

C54 Connection code unit base workpiece side:

1

C55 Connection code style workpiece side:

0

C6 Connection size code workpiece side:

220

C71 Connection diameter min:

22 mm

C71_INCH Connection diameter min:

0,866141732283465 inch

C81 Clamping length maximum:

19 mm

C81_INCH Clamping length maximum:

0,748031496062992 inch

CCFMS Connection code form at machine side:

17

CCFWS Connection code form at workpiece side:

12

CCMS Connection code machine side:

SKG17C0400$$$$

CCTMS Connection code type machine side:

SKG

CCTWS Connection code type workpiece side:

FDA

CCWS Connection code workpiece side:

FDA22G2200****

CNSC Coolant entry style code:

7

CONTENT_UNIT:

PCE

CUB Connection unit basis:

M

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

G

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

400

CZCWS Connection size code workpiece side:

220

D6 Rotational speed maximum:

8000 1/min

D7 Weight of item:

3,74 kg

D7_INCH Weight of item:

8,245204 lbs

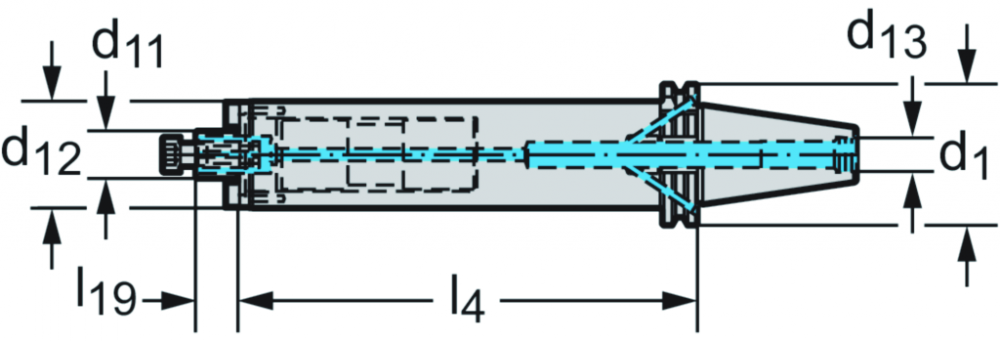

d11 Connection size code:

22

d12 Body diameter:

48 mm

d13 Pull stud, thread size:

M16

d1 Connection size code:

SK40

Designation Tool designation:

AC001-S40-B22-210

E2 Kappa:

0 °

EAN:

0603513851

FMT Form type workpiece side:

EXT

G35 Mounting hole count:

8

H21 Coolant entry style code:

7

H22 Coolant exit style code:

1

J1 Standard:

ISO7388-1

J11 Standard letter to the standard number:

AD/

J21 Article number:

AC001-S40-B22-210

J3 Company code:

W

J4 Connection code workpiece side:

FDA12G2200****

J6 Connection code machine side:

SKG17C0400$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding|Accure·tec^®|Basic Holders steep taper shank - Milling arbor mounting|AC001

l19 Shank length:

19 mm

l4 Functional length:

210 mm

LF Functional length:

210 mm

LF_INCH Functional length:

8,26771653543307 inch

LPR Protruding length:

210 mm

LPR_INCH Protruding length:

8,26771653543307 inch

LS Shank length:

19 mm

LSC Clamping length maximum:

19 mm

LSC_INCH Clamping length maximum:

0,748031496062992 inch

LS_INCH Shank length:

0,748031496062992 inch

MANUFACTURER_AID:

AC001-S40-B22-210

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

297,4 mm

OAL_INCH Overall length:

11,7086614173228 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

SK adaptor – Vibration-damped AC001-S • metric • For milling tools with parallel bore according to DIN 138 • With preset vibration damping

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022002

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

AC001-S

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

8000 1/min

SUPPLIER_AID:

7835007

SUPPLIER_ALT_AID:

7835007

TERRITORY:

US

TSYC Tool style code:

AC001-S

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

For milling tools with parallel bore according to DIN 138

UDX.BULLETTEXT_2:

With preset vibration damping

UDX.CATFAM_CODE:

AC001-S

UDX.CATFAM_DESCR:

SK adaptor – Vibration-damped

UDX.DESCR_APPLICATION:

Machining deep pockets;Machining complex one-piece workpieces;Long overhangs of up to 5 × D are possible;Applications in virtually all segments

UDX.DESCR_BENEFITS:

High productivity and surface quality – with long service life for the tool and spindle;Vibration damping preset at the factory, ready for immediate use;Stable process producing little noise;Reliable machining up to 5 × D;Optimum chip removal thanks to

UDX.DESCR_TOOL:

Accure·tec vibration-damped boring bar/adaptor – with SK;Accure·tec vibration-damped boring bar/adaptor;Patented vibration damping;For shell end milling cutters with tenon in accordance with DIN 138;Cylindrical design;High rigidity;Internal coolant sup

UDX.DISCOUNTGROUP:

073

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

8.2467

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

4.7244

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

16.3386

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

8.2467

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

364.6779

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

4.7244

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

AC001

WT Weight:

3,74 kg

WT Weight of item:

3,74 kg

WT_INCH Weight of item:

8,245204 lbs

XYWD xyw plane distance:

-210 mm

XYWD_INCH xyw plane distance:

-8,26771653543307 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Manufactured By:

Walter Tool

For milling tools with parallel bore according to DIN 138

For milling tools with parallel bore according to DIN 138|With preset vibration damping

With preset vibration damping

SK adaptor – Vibration-damped by Walter Tool
