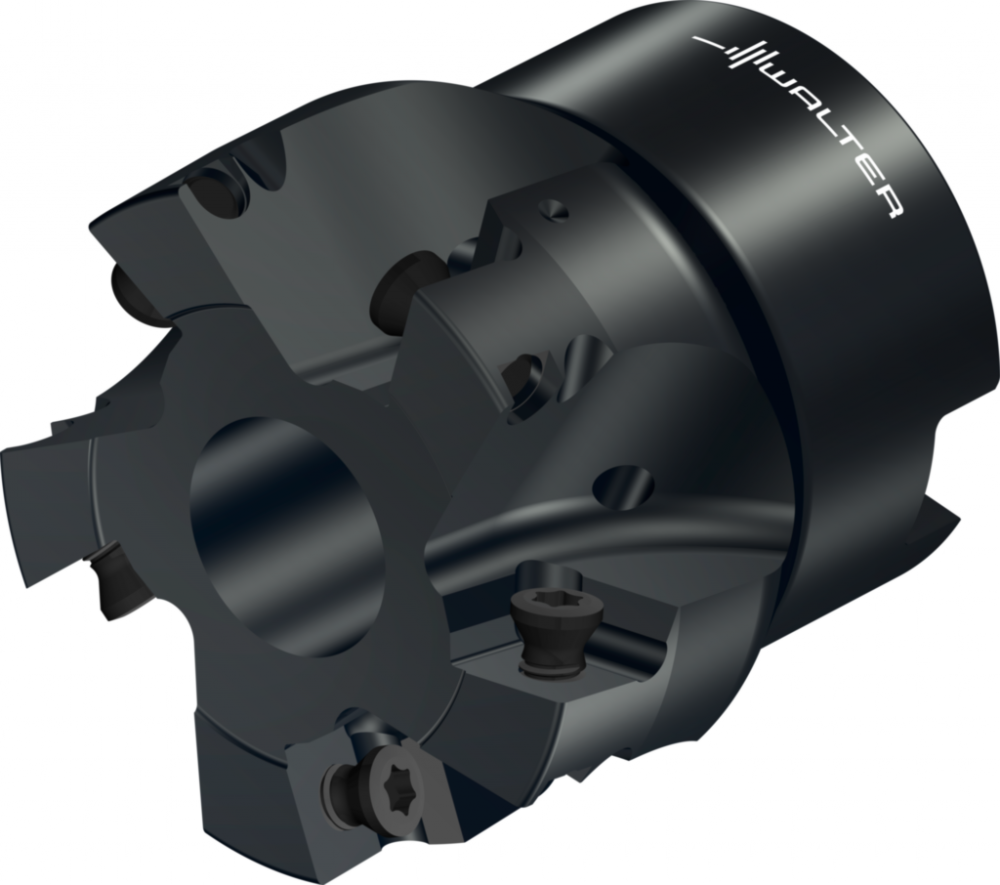

Shoulder milling cutters : 6556148 | Aronson Campbell Industrial Supply

Category:

Milling

Subcategory:

Indexable

Subtype:

Indexable End Mills

A1 Cutting diameter:

40 mm

A1_INCH Cutting diameter:

1,5748031496063 inch

A2 Cutting diameter maximum:

40,23 mm

A2_INCH Cutting diameter maximum:

1,58385826771654 inch

A3 Body diameter:

39,25 mm

A3_INCH Body diameter:

1,54527559055118 inch

A4 Hub diameter:

33 mm

A4_INCH Hub diameter:

1,2992125984252 inch

APMX Depth of cut maximum:

8,4 mm

APMX_INCH Depth of cut maximum:

0,330708661417323 inch

ART_ID_TO type=accessories:

5050322,6421702,6550406,6550407

ART_ID_TO type=consists_of:

6550405

ART_ID_TO type=others:

6556174, ;6556175, ;6556179, ;6556200, ;6556201, ;6556205, ;6556206, ;6661427, ;6807393, ;6807394, ;6807395, ;6807396, ;6841397, ;6841398, ;6952615, ;7169067, ;7170572, ;7170574, ;7170577, ;7170603, ;7170611, ;7182239, ;7182240, ;7220872, ;7220874, ;729684

B2 Cutting depth maximum:

8,4 mm

B2_INCH Cutting depth maximum:

0,330708661417323 inch

B5 Overall length:

40 mm

B5_INCH Overall length:

1,5748031496063 inch

B71 Functional length:

40 mm

B71_INCH Functional length:

1,5748031496063 inch

BD Body diameter:

39,25 mm

BD_INCH Body diameter:

1,54527559055118 inch

BLD Tool style code:

2

BMC Body material code:

S

C11 Connection code type machine side:

FDA

C12 Connection code form at machine side:

12

C14 Connection code unit base machine side:

1

C15 Connection code style machine side:

0

C2 Connection size code machine side:

160

C3 Connection diameter machine side:

16 mm

C3_INCH Connection diameter machine side:

0,62992125984252 inch

CCMS Connection code machine side:

FDA12G1600$$$$

CICT (F) Face mounted insert count:

5

CICT Cutting item count:

5

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

M

CUBPMS Connection unit base precision machine side:

G

CURRENCY:

USD

CXSC Coolant exit style code:

3

CZCMS Connection size code machine side:

160

D4 Adjustment property:

0

D6 Rotational speed maximum:

30100 1/min

D7 Weight of item:

0,218 kg

D7_INCH Weight of item:

0,4806028 lbs

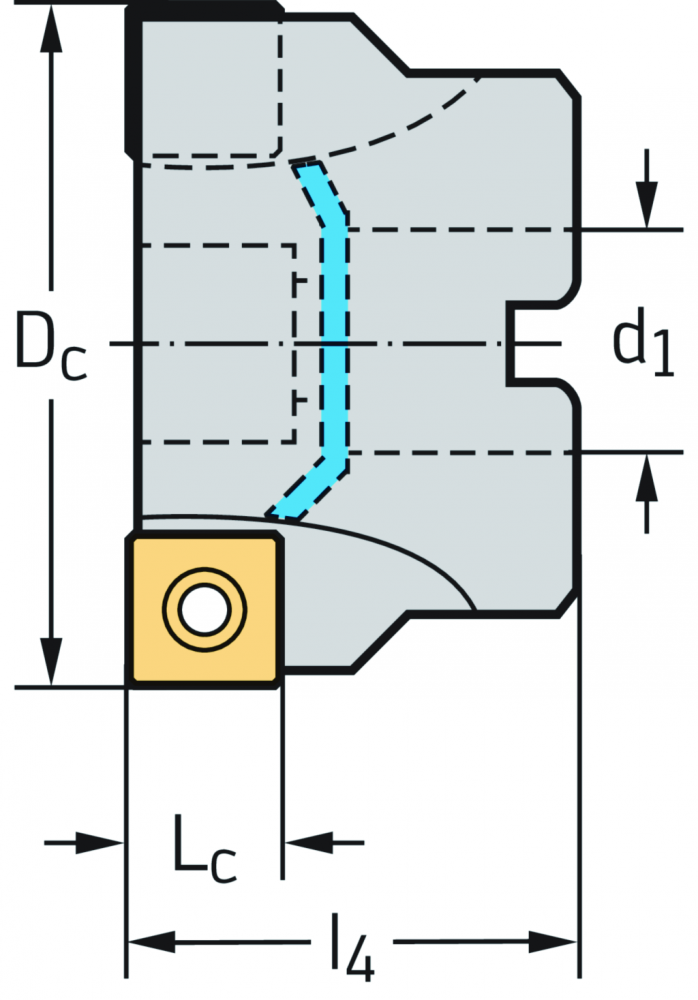

d1 Connection diameter:

16 mm

Dc Cutting edge diameter:

40 mm

DC Cutting diameter:

40 mm

DCX Cutting diameter maximum:

40,23 mm

DCX_INCH Cutting diameter maximum:

1,58385826771654 inch

DC_INCH Cutting diameter:

1,5748031496063 inch

Designation Tool designation:

M4132-040-B16-05-09

E1 Tool cutting edge angle:

89,75 °

E2 Rake angle radial:

0 °

E3 Rake angle axial:

0 °

E4 Ramping angle maximum:

0 °

E5 Plunge depth maximum:

0,7 mm

E5_INCH Plunge depth maximum:

0,0275590551181102 inch

EAN:

0736430724

F1 Cutting direction:

R

F21 Peripheral effective cutting edge count:

5

F22 Face effective cutting edge count:

5

F23 Number of insert mounting levels:

1

F24 Number of inserts per mounting level:

5

FMT Form type machine side:

INT

G13 Face mounted insert count:

5

G21 Clamping type code:

S

G22 Cutting item type count:

1

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

H4 Body material code:

S

HAND Cutting direction:

R

J1 Standard:

-

J21 Article number:

M4132-040-B16-05-09

J22 Product designation:

196

J3 Company code:

W

J41 Insert interface code:

WR$$SD09T3**3R*PD**

J6 Connection code machine side:

FDA12G1600$$$$

J7 Data chip provision:

0

J8 Machining operation:

FPL

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

89,75 °

KEYWORD:

Tool Item|Milling||Square shoulder mills|M4132

l4 Maximum projection length:

40 mm

Lc Cutting edge length:

8,4 mm

LB Body length:

40 mm

LB_INCH Body length:

1,5748031496063 inch

LF Functional length:

40 mm

LF_INCH Functional length:

1,5748031496063 inch

MANUFACTURER_AID:

M4132-040-B16-05-09

NOI Insert index count:

200

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-88

OAL Overall length:

40 mm

OAL_INCH Overall length:

1,5748031496063 inch

OHX Protruding length:

40 mm

OHX_INCH Protruding length:

1,5748031496063 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Shoulder milling cutters M4132 • Parallel bore DIN 138 transverse keyway • κ=90° • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180902

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180902

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180902

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010508

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010508

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010508

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180902

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180902

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180902

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180902

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180902

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180902

REFERENCE_FEATURE_GROUP_ID_GTC:

MILSQI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241623

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241623

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

M4132-B1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RMPX Ramping angle maximum:

0 °

RPMX Rotational speed maximum:

30100 1/min

SC Insert shape code:

S

SUPPLIER_AID:

6556148

SUPPLIER_ALT_AID:

6556148

TERRITORY:

US

TSYC Tool style code:

M4132-B1

Type Possible indexable inserts:

SD .. 09T3 ..; SDGT09T3PDR

UDX.APPAREA:

Milling

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

4 cutting edges per indexable insert

UDX.CATFAM_CODE:

M4132

UDX.CATFAM_DESCR:

Shoulder milling cutters

UDX.DESCR_APPLICATION:

For face and shoulder milling in all steel and cast iron workpieces, stainless steels and difficult-to-cut materials

UDX.DESCR_BENEFITS:

High level of cost-efficiency;Cost-effective procurement and inventory thanks to universal use of system insert;Four or two cutting edges per indexable insert;Concept requiring minimum resources;Low power requirement thanks to highly positive geometries;CO

UDX.DESCR_TOOL:

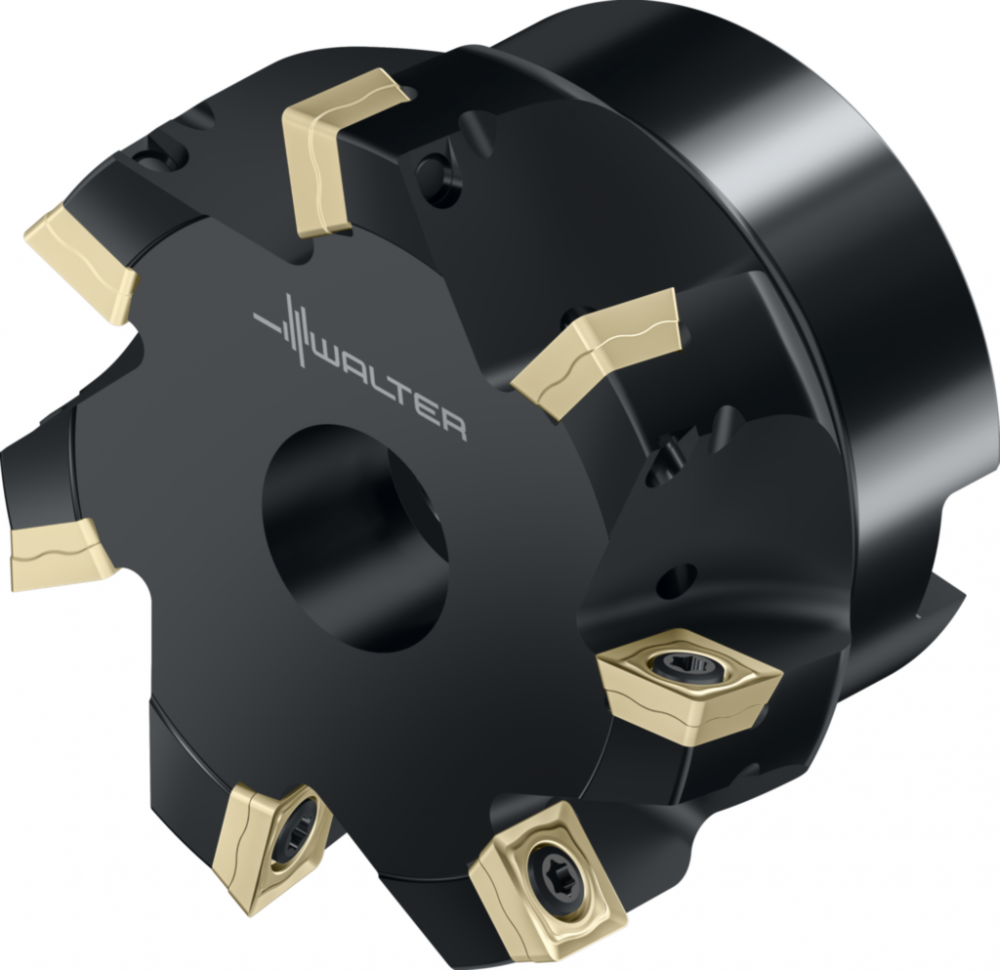

With bore adaption;Walter M4132 shoulder milling cutter;Shoulder milling cutter with four-edged system insert

UDX.DISCOUNTGROUP:

048

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.4807

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.9685

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.7008

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.4939

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

14.3406

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.9685

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

M4132

UDX.RANKING_ISO_H:

Additional application

UDX.RANKING_ISO_K:

Main application

UDX.RANKING_ISO_M:

Main application

UDX.RANKING_ISO_N:

Main application

UDX.RANKING_ISO_O:

Additional application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

ULDR Usable length diameter ratio:

2,01

WT Weight:

0,22 kg

WT Weight of item:

0,218 kg

WT_INCH Weight of item:

0,4806028 lbs

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

5

ZEFF Face effective cutting edge count:

5

ZEFP Peripheral effective cutting edge count:

5

Manufactured By:

Walter Tool

4 cutting edges per indexable insert

Shoulder milling cutters by Walter Tool
