Shank tool - Rigid clamping

Shank tool - Rigid clamping by Walter Tool

Call For Price
  • Part Number: 7512919
  • UPC:
  • Availability:
    Nothing
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

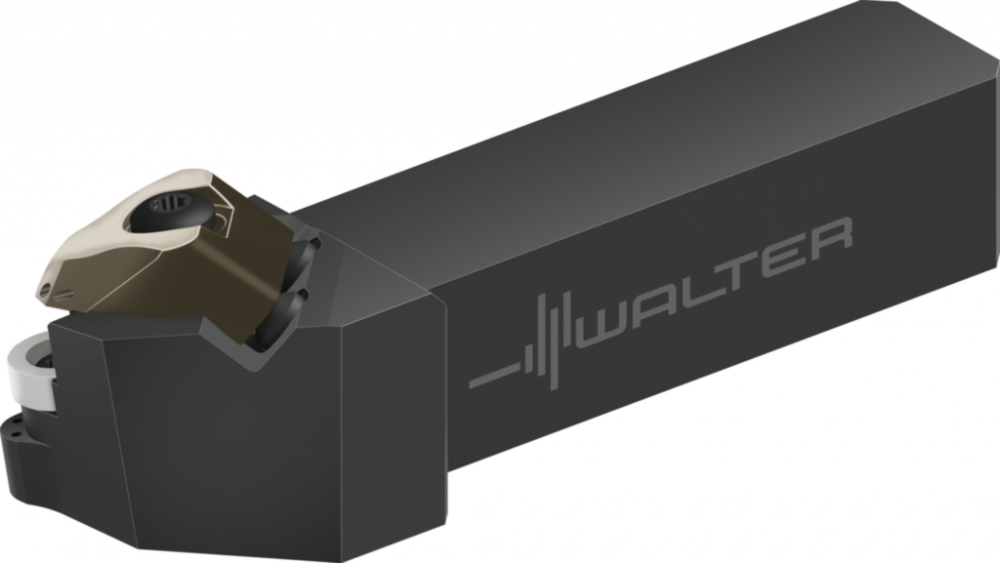

Shank tool - Rigid clamping CRSNL2525X12-P
Shank tool - Rigid clamping CRSN...-P • Walter Turn • metric • Square shank • ?=0° • Left • 0.9843x0.9843in • round insert • RN .. 1207 .. • Precision cooling
Specifications
Details
Category:
Turning
Subcategory:
Indexable Cutting Tools
Subtype:
Turning Toolholders
A2 Functional width:
32 mm
A2_INCH Functional width:
1,25984251968504 inch
A3 Functional length:
130 mm
A3_INCH Functional length:
5,11811023622047 inch
A4 Functional height:
25 mm
A4_INCH Functional height:
0,984251968503937 inch
ART_ID_TO type=accessories:
7631436,7894876
ART_ID_TO type=consists_of:
5032918,5040976,5041482,5096227,6385546,6385826,6470228,6807236,7246565,7631435,5050336
ART_ID_TO type=others:
6189030, ;6189031, ;6188172, ;6188175, ;8377375, ;8377376, 6787723;6787724;6787725;6787726;7253649;7402152;7503109;7503180;7503182;7669787
b Shank width:
25 mm
B3 Protruding length:
130 mm
B3_INCH Protruding length:
5,11811023622047 inch
B5 Overall length:
130 mm
B5_INCH Overall length:
5,11811023622047 inch
b<sub>1</sub> Width:
10 mm
BLD Tool style code:
1
BMC Body material code:
S
B_INCH Shank width:
0,984251968503937 inch
C11 Connection code type machine side:
VKT
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
1
C15 Connection code style machine side:
5
C2 Connection size code machine side:
2525
C4 Shank height:
25 mm
C4_INCH Shank height:
0,984251968503937 inch
C5 Shank width:
25 mm
C5_INCH Shank width:
0,984251968503937 inch
CICT Cutting item count:
1
CNSC Coolant entry style code:
3
CONTENT_UNIT:
PCE
CP Coolant pressure:
150 MPa
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
A
CURRENCY:
USD
CXSC Coolant exit style code:
7
CZCMS Connection size code machine side:
2525
D7 Weight of item:
0,7 kg
D7_INCH Weight of item:
1,54322 lbs
Designation Tool designation:
CRSNL2525X12-P
E1 Tool cutting edge angle:
0 °
E2 Tool cutting edge angle type code:
B
E4 Rake angle orthogonal:
-6 °
E5 Inclination angle:
-6 °
EAN:
0928422912
f Functional width:
32 mm
F1 Cutting direction:
L
F5 Clamping type code:
C
FMTMS Form type machine side:
EXT
GAMO Rake angle orthogonal:
-6 °
h = h<sub>1</sub> Shank height:
25 mm
H Shank height:
25 mm
H21 Coolant entry style code:
3
H22 Coolant exit style code:
7
HAND Cutting direction:
L
HF Functional height:
25 mm
HF_INCH Functional height:
0,984251968503937 inch
H_INCH Shank height:
0,984251968503937 inch
Insert seat size Insert seat size:
12
J1 Standard:
-
J21 Article number:
CRSNL2525X12-P
J22 Product designation:
6951
J3 Company code:
W
J41 Insert interface code:
ISO$RN120700*****00
J42 Master insert identification:
RNGN 12 07 00
J6 Connection code machine side:
VKT01A2525$$$$
J7 Data chip provision:
0
J8 Machining operation:
DFA
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
0 °
KEYWORD:
Tool Item|Turning|Walter Turn|Tool holders for turning|D10NP
l<sub>1</sub> Overall length:
130 mm
l<sub>4</sub> Projection length:
38,5 mm
LAMS Inclination angle:
-6 °
LF Functional length:
130 mm
LF_INCH Functional length:
5,11811023622047 inch
LPR Protruding length:
130 mm
LPR_INCH Protruding length:
5,11811023622047 inch
MANUFACTURER_AID:
CRSNL2525X12-P
MIID Master insert identification:
RNGN 12 07 00
NOI Insert index count:
400
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-90
OAL Overall length:
130 mm
OAL_INCH Overall length:
5,11811023622047 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Shank tool - Rigid clamping CRSN...-P • Walter Turn • metric • Square shank • κ=0° • Left • Precision cooling
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181001
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181001
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181001
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181001
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181001
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181001
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181001
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181001
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181001
REFERENCE_FEATURE_GROUP_ID_GTC:
TRNGEI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153308
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112809
REFERENCE_FEATURE_GROUP_ID_Walter:
CRSNL-ISO-AUSSEN-C-P
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
SC Insert shape code:
R
SSC Insert seat size code:
12
SUPPLIER_AID:
7512919
SUPPLIER_ALT_AID:
7512919
TERRITORY:
US
TSYCISO Tool style code:
CRSNL-ISO-AUSSEN-C-P
Type Possible indexable inserts:
RNGN1207 ..
UDX.APPAREA:
Turning
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
For ceramic indexable inserts
UDX.BULLETTEXT_2:
Precision cooling
UDX.CATFAM_CODE:
CRSN...-P
UDX.CATFAM_DESCR:
Shank tool - Rigid clamping
UDX.DESCR_APPLICATION:
First choice for machining stainless steels (ISO M), high-temperature alloys (ISO S) and steel (ISO P);Flexible coolant connection: Direct coolant transfer between shank tool and tool adaptor (A2120-P/A2121-P) or via coolant hose set with G1/8" thread
UDX.DESCR_BENEFITS:
Optimum cooling increases tool life by 30–150%;Higher cutting speeds and longer tool life thanks to flank face cooling;Short chips thanks to precision cooling
UDX.DESCR_TOOL:
Coolant supplied directly through the clamp and along the flank face;The precision cooling brings the coolant as close and flatly angled as possible to the effective working area underneath the chip;Special system for ceramic indexable inserts without bore
UDX.DISCOUNTGROUP:
060
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
1.5435
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
1.9685
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
5.2756
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
1.5435
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
20.4430
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
1.9685
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
D10NP
WF Functional width:
32 mm
WF_INCH Functional width:
1,25984251968504 inch
WT Weight of item:
0,7 kg
WT_INCH Weight of item:
1,54322 lbs
XYWD xyw plane distance:
-130 mm
XYWD_INCH xyw plane distance:
-5,11811023622047 inch
XZWD xzw plane distance:
25 mm
XZWD_INCH xzw plane distance:
0,984251968503937 inch
YZWD yzw plane distance:
32 mm
YZWD_INCH yzw plane distance:
1,25984251968504 inch
γ Orthogonal rake angle:
-6 °
λ<sub>s</sub> Inclination angle:
-6 °
Manufactured By:
Walter Tool
Other Details
For ceramic indexable inserts
For ceramic indexable inserts|Precision cooling
Precision cooling
