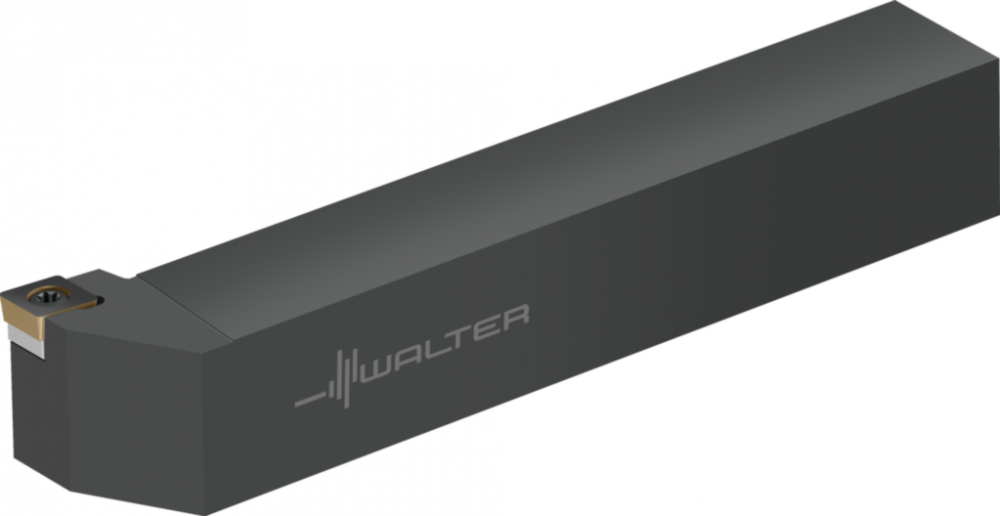

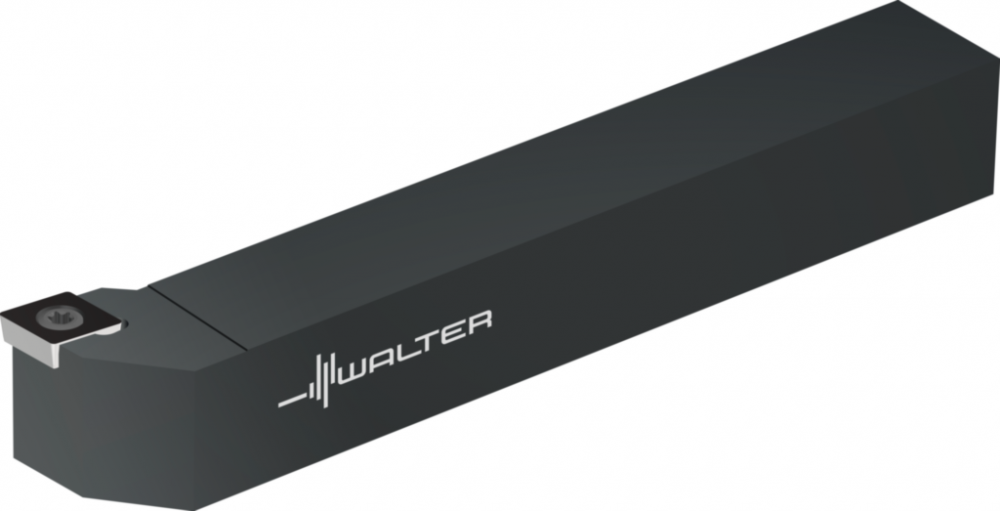

Shank tool – Screw clamping : 6346587 | Aronson Campbell Industrial Supply

Category:

Turning

Subcategory:

Indexable Cutting Tools

Subtype:

Turning Toolholders

A1 Cutting edge length:

6,4 mm

A1_INCH Cutting edge length:

0,251968503937008 inch

A2 Functional width:

15,87 mm

A2_INCH Functional width:

0,624803149606299 inch

A3 Functional length:

114,3 mm

A3_INCH Functional length:

4,5 inch

A4 Functional height:

12,7 mm

A4_INCH Functional height:

0,5 inch

ART_ID_TO type=consists_of:

5043770,5194526

ART_ID_TO type=others:

5016466, ;5043797, ;5025569, ;5025570, ;5202144, ;5357514, ;5614899, ;5615013, ;5848594, ;6363920, ;6363930, ;6422298, ;6428695, ;6439423, ;6461219, ;6461282, ;6462774, ;6463374, ;6463459, ;6484652, ;6485337, ;6485339, ;6636291, ;6636292, ;6650878, ;665087

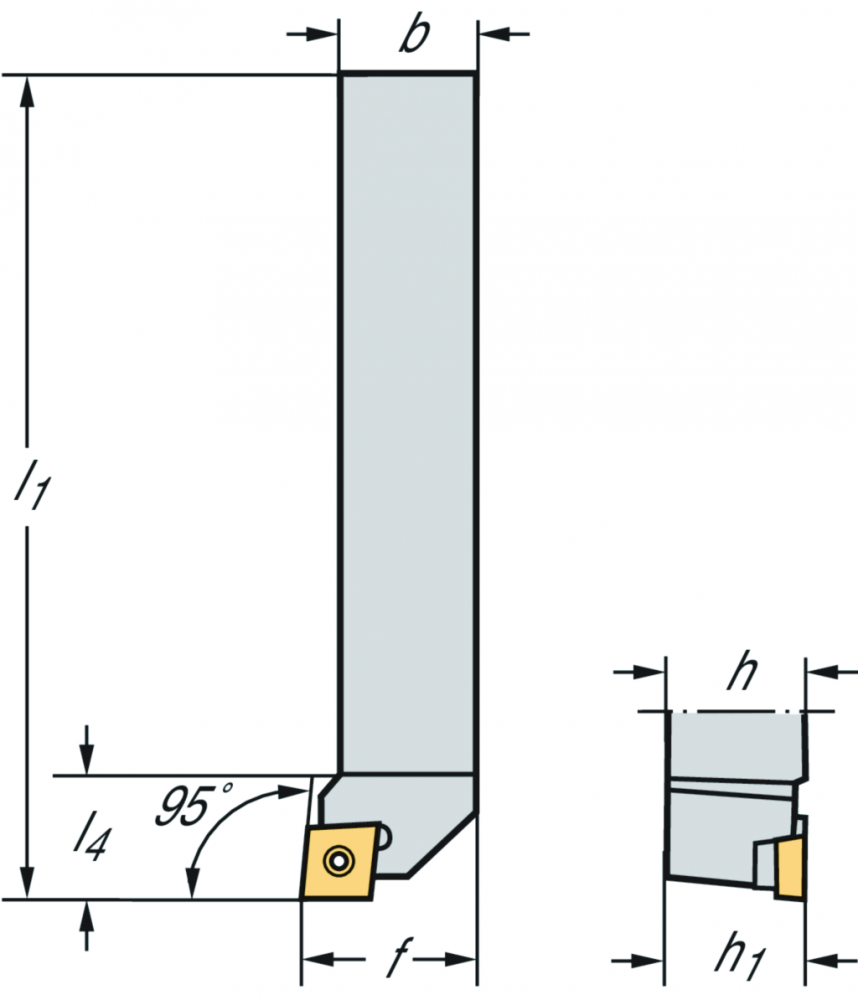

b Shank width:

0,5 inch

B Shank width:

12,7 mm

B3 Protruding length:

114,3 mm

B3_INCH Protruding length:

4,5 inch

B5 Overall length:

114,3 mm

B5_INCH Overall length:

4,5 inch

BLD Tool style code:

1

BMC Body material code:

S

B_INCH Shank width:

0,5 inch

C11 Connection code type machine side:

VKT

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

2

C15 Connection code style machine side:

5

C2 Connection size code machine side:

808

C4 Shank height:

12,7 mm

C4_INCH Shank height:

0,5 inch

C5 Shank width:

12,7 mm

C5_INCH Shank width:

0,5 inch

CICT Cutting item count:

1

CNSC Coolant entry style code:

0

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

B

CURRENCY:

USD

CXSC Coolant exit style code:

0

CZCMS Connection size code machine side:

808

D7 Weight of item:

0,001 kg

D7_INCH Weight of item:

0,0022046 lbs

Designation Tool designation:

SCLCL082B

E1 Tool cutting edge angle:

95 °

E2 Tool cutting edge angle type code:

B

E3 Insert included angle:

80 °

E4 Rake angle orthogonal:

0 °

E5 Inclination angle:

0 °

EAN:

0690416913

f Functional width:

0,625 inch

F1 Cutting direction:

L

F2 Tool holder shape code:

G

F5 Clamping type code:

S

FMTMS Form type machine side:

EXT

GAMO Rake angle orthogonal:

0 °

h = h1 Shank height:

0,5 inch

H Shank height:

12,7 mm

H21 Coolant entry style code:

0

H22 Coolant exit style code:

0

HAND Cutting direction:

L

HF Functional height:

12,7 mm

HF_INCH Functional height:

0,5 inch

H_INCH Shank height:

0,5 inch

Insert seat size Insert seat size:

6

J1 Standard:

-

J21 Article number:

SCLCL082B

J22 Product designation:

590

J3 Company code:

W

J41 Insert interface code:

ISO$CC0602003******

J42 Master insert identification:

CCMT 2(1.5)1

J6 Connection code machine side:

VKT01B0808$$$$

J7 Data chip provision:

0

J8 Machining operation:

DFA

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

95 °

KEYWORD:

Tool Item|Turning|Walter Turn|Tool holders for turning|D10PS

l1 Overall length:

4,5 inch

l4 Projection length:

0,47 inch

LAMS Inclination angle:

0 °

LF Functional length:

114,3 mm

LF_INCH Functional length:

4,5 inch

LPR Protruding length:

114,3 mm

LPR_INCH Protruding length:

4,5 inch

MANUFACTURER_AID:

SCLCL082B

MIID Master insert identification:

CCMT 2(1.5)1

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

114,3 mm

OAL_INCH Overall length:

4,5 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

Possible indexable inserts:

CC .. 2(1.5) ..

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Shank tool – Screw clamping SCLC • Walter Turn • inch • Square shank • κ=95° • Left

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181001

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNGEI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

SCLCL-ISO-AUSSEN-INCH

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SC Insert shape code:

C

SSC Insert seat size code:

6

SUPPLIER_AID:

6346587

SUPPLIER_ALT_AID:

6346587

TERRITORY:

US

TSYCISO Tool style code:

SCLCL-ISO-AUSSEN-INCH

Type Possible indexable inserts:

CC .. 0602 ..

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

SCLC

UDX.CATFAM_DESCR:

Shank tool – Screw clamping

UDX.DESCR_APPLICATION:

First choice for low cutting pressures/small-diameter shafts

UDX.DESCR_BENEFITS:

Torx Plus screw clamping for transmitting higher tightening torques;The indexable insert and shim can be replaced using the same wrench;Fewer assembly parts are required

UDX.DESCR_TOOL:

For indexable inserts with positive basic shape;Walter Turn shank tool with screw clamping (S)

UDX.DISCOUNTGROUP:

060

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.0022

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.3780

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.6614

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.2756

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

6.9521

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.3780

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D10PS

WF Functional width:

15,87 mm

WF_INCH Functional width:

0,624803149606299 inch

WT Weight of item:

0,001 kg

WT_INCH Weight of item:

0,0022046 lbs

XYWD xyw plane distance:

-114,3 mm

XYWD_INCH xyw plane distance:

-4,5 inch

XZWD xzw plane distance:

12,7 mm

XZWD_INCH xzw plane distance:

0,5 inch

YZWD yzw plane distance:

15,87 mm

YZWD_INCH yzw plane distance:

0,624803149606299 inch

γ Orthogonal rake angle:

0 °

λs Inclination angle:

0 °

Manufactured By:

Walter Tool

Shank tool – Screw clamping by Walter Tool
