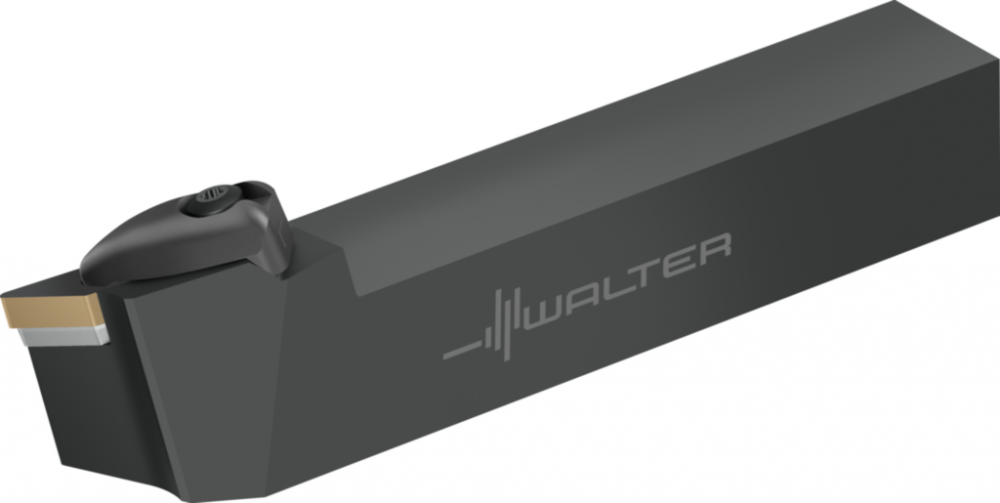

Shank tool – Rigid clamping : 7394639 | Aronson Campbell Industrial Supply

Category:

Turning

Subcategory:

Indexable Cutting Tools

Subtype:

Turning Toolholders

A1 Cutting edge length:

16,5 mm

A1_INCH Cutting edge length:

0,649606299212598 inch

A2 Functional width:

25,4 mm

A2_INCH Functional width:

1 inch

A3 Functional length:

114,3 mm

A3_INCH Functional length:

4,5 inch

A4 Functional height:

19,05 mm

A4_INCH Functional height:

0,75 inch

ART_ID_TO type=accessories:

5098059

ART_ID_TO type=consists_of:

5040977,5041248,5041500,5041508,5042261,5042262,5042164

ART_ID_TO type=others:

5638566, ;5640947, ;5829390, ;5829391, ;5908284, ;6060078, ;6150420, ;6150787, ;6152369, ;6249340, ;6252577, ;6361397, ;6361399, ;6361491, ;6406858, ;6408234, ;6411281, ;6411284, ;6890829, ;6890840, ;6890878, ;6890879, ;7021462, ;7021463, ;7021464, ;705386

b Shank width:

0,75 inch

B Shank width:

19,05 mm

B3 Protruding length:

114,3 mm

B3_INCH Protruding length:

4,5 inch

B5 Overall length:

114,3 mm

B5_INCH Overall length:

4,5 inch

BLD Tool style code:

1

BMC Body material code:

S

B_INCH Shank width:

0,75 inch

C11 Connection code type machine side:

VKT

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

2

C15 Connection code style machine side:

5

C2 Connection size code machine side:

1212

C4 Shank height:

19,05 mm

C4_INCH Shank height:

0,75 inch

C5 Shank width:

19,05 mm

C5_INCH Shank width:

0,75 inch

CICT Cutting item count:

1

CNSC Coolant entry style code:

0

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

B

CURRENCY:

USD

CXSC Coolant exit style code:

0

CZCMS Connection size code machine side:

1212

D7 Weight of item:

0,8 kg

D7_INCH Weight of item:

1,76368 lbs

Designation Tool designation:

DVTNL123B

E1 Tool cutting edge angle:

3 °

E2 Tool cutting edge angle type code:

B

E3 Insert included angle:

35 °

E4 Rake angle orthogonal:

-4 °

E5 Inclination angle:

-13 °

EAN:

0901851913

f Functional width:

1 inch

F1 Cutting direction:

L

F2 Tool holder shape code:

G

F5 Clamping type code:

D

FMTMS Form type machine side:

EXT

GAMO Rake angle orthogonal:

-4 °

h = h1 Shank height:

0,75 inch

H Shank height:

19,05 mm

H21 Coolant entry style code:

0

H22 Coolant exit style code:

0

HAND Cutting direction:

L

HF Functional height:

19,05 mm

HF_INCH Functional height:

0,75 inch

H_INCH Shank height:

0,75 inch

Insert seat size Insert seat size:

16

J1 Standard:

-

J21 Article number:

DVTNL123B

J22 Product designation:

653

J3 Company code:

W

J41 Insert interface code:

ISO$VN1604002******

J42 Master insert identification:

VNMG 332

J6 Connection code machine side:

VKT01B1212$$$$

J7 Data chip provision:

0

J8 Machining operation:

DFA

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

3 °

KEYWORD:

Tool Item|Turning|Walter Turn|Tool holders for turning|D10NK

l1 Overall length:

4,5 inch

l4 Projection length:

1,543 inch

LAMS Inclination angle:

-13 °

LF Functional length:

114,3 mm

LF_INCH Functional length:

4,5 inch

LPR Protruding length:

114,3 mm

LPR_INCH Protruding length:

4,5 inch

MANUFACTURER_AID:

DVTNL123B

MIID Master insert identification:

VNMG 332

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

114,3 mm

OAL_INCH Overall length:

4,5 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

Possible indexable inserts:

VN .. 33 ..

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Shank tool – Rigid clamping DVTN • Walter Turn • inch • Square shank • κ=117,5° • Left

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181001

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181001

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNGEI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

DVTNL-ISO-AUSSEN-INCH

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RMPX Ramping angle maximum:

44 °

SC Insert shape code:

V

SSC Insert seat size code:

16

SUPPLIER_AID:

7394639

SUPPLIER_ALT_AID:

7394639

TERRITORY:

US

TSYCISO Tool style code:

DVTNL-ISO-AUSSEN-INCH

Type Possible indexable inserts:

VN .. 1604 ..

UDX.APPAREA:

Turning

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

DVTN

UDX.CATFAM_DESCR:

Shank tool – Rigid clamping

UDX.DESCR_APPLICATION:

Suitable for roughing and finishing applications;First choice for interrupted cuts thanks to stable insert clamping;First choice for machining short-chipping material

UDX.DESCR_BENEFITS:

Reinforced clamps with carbide shoe available for longer clamp tool life;Clamping screw also operable from above when used overhead;The indexable insert and shim can be replaced using the same wrench;High level of process reliability thanks to stable, nega

UDX.DESCR_TOOL:

Walter Turn shank tool with rigid clamping (D);Maximum stability thanks to three-dimensional clamping;Functionality is maintained even in "dirty environments", e.g. grey cast iron machining

UDX.DISCOUNTGROUP:

060

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

1.7640

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

.0000

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

.0000

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

1.7640

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

.0000

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

.0000

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D10NK

WF Functional width:

25,4 mm

WF_INCH Functional width:

1 inch

WT Weight of item:

0,8 kg

WT_INCH Weight of item:

1,76368 lbs

XYWD xyw plane distance:

-114,3 mm

XYWD_INCH xyw plane distance:

-4,5 inch

XZWD xzw plane distance:

19,05 mm

XZWD_INCH xzw plane distance:

0,75 inch

YZWD yzw plane distance:

25,4 mm

YZWD_INCH yzw plane distance:

1 inch

γ Orthogonal rake angle:

-4 °

λs Inclination angle:

-13 °

Manufactured By:

Walter Tool

Shank tool – Rigid clamping by Walter Tool
