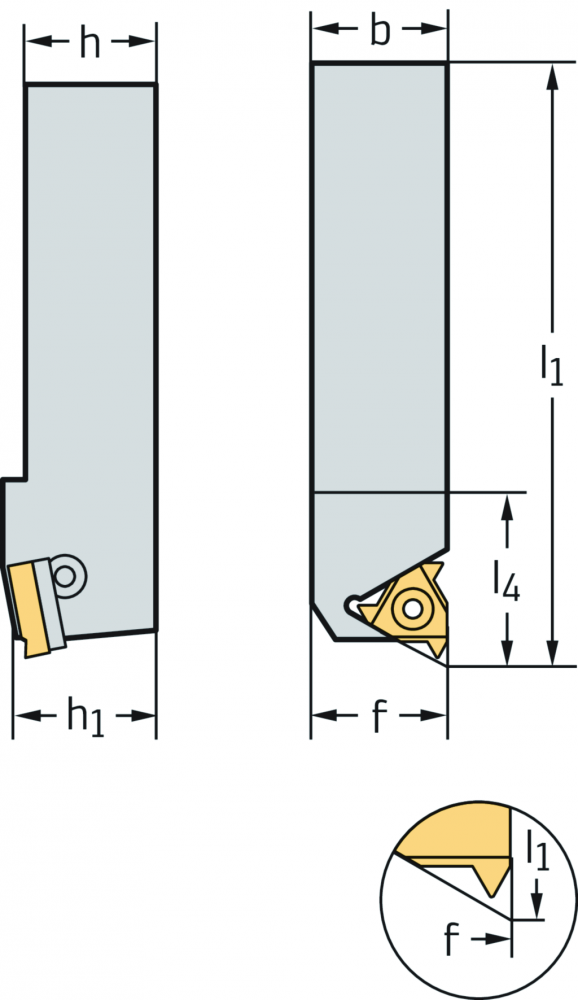

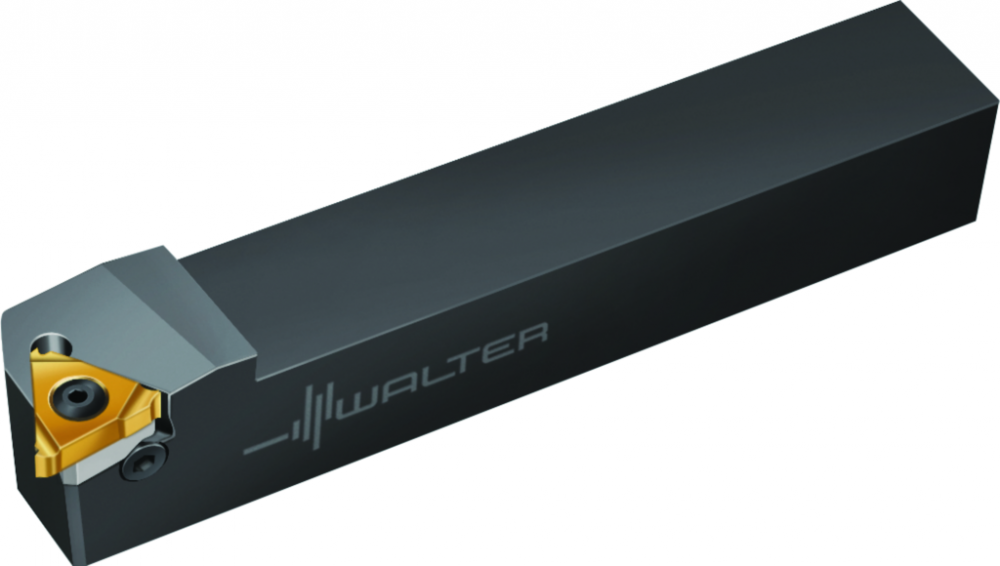

Shank tool – External thread NTS-SEL0808-3
Shank tool – External thread NTS-SE • inch • Left • 0.5x0.5in
Specifications
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
External Threading Toolholders
A2 Functional width:
16 mm
A2_INCH Functional width:
0,62992125984252 inch
A3 Functional length:
82,55 mm
A3_INCH Functional length:
3,25 inch
A4 Functional height:
12,7 mm
A4_INCH Functional height:
0,5 inch
ALP Clearance angle axial:
10 °
ART_ID_TO type=consists_of:
5006508,5010082,6039277,6050513
ART_ID_TO type=others:
5010085, ;5010089, ;5010093, ;5010097, ;5010101, ;5010105, ;5010109, ;5012670, ;5012673, ;5012676, ;5012679, ;5012680, ;5012685, ;5012686, ;5012691, ;5012692, ;5012697, ;5012698, ;5012703, ;5012704, ;5012709, ;5012710, ;5012715, ;5012716, ;5012721, ;501272
b Shank width:
0,5 inch
B Shank width:
12,7 mm
B3 Protruding length:
82,55 mm
B3_INCH Protruding length:
3,25 inch
B5 Overall length:
82,55 mm
B5_INCH Overall length:
3,25 inch
BLD Tool style code:
2
BMC Body material code:
S
B_INCH Shank width:
0,5 inch
C11 Connection code type machine side:
VKT
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
2
C15 Connection code style machine side:
5
C2 Connection size code machine side:
808
C4 Shank height:
12,7 mm
C4_INCH Shank height:
0,5 inch
C5 Shank width:
12,7 mm
C5_INCH Shank width:
0,5 inch
CCMS Connection code machine side:
VKT01B0808$$$$
CICT Cutting item count:
1
CNSC Coolant entry style code:
0
CONTENT_UNIT:
PCE
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
B
CURRENCY:
USD
CXSC Coolant exit style code:
0
CZCMS Connection size code machine side:
808
D7 Weight of item:
0,119 kg
D7_INCH Weight of item:
0,2623474 lbs
Designation Tool designation:
NTS-SEL0808-3
DHD Drop head design:
0
E1 Tool cutting edge angle:
90 °
E2 Tool cutting edge angle type code:
E
EAN:
0473388965
f Functional width:
0,63 inch
F1 Cutting direction:
L
F2 Tool holder shape code:
G
F3 Drop head design:
0
F5 Clamping type code:
S
FMT Form type machine side:
EXT
h = h<sub>1</sub> Shank height:
0,5 inch
H Shank height:
12,7 mm
H21 Coolant entry style code:
0
H22 Coolant exit style code:
0
HAND Cutting direction:
L
HF Functional height:
12,7 mm
HF_INCH Functional height:
0,5 inch
H_INCH Shank height:
0,5 inch
IIC Insert interface code:
WR$$NTSE16**3L*****
Insert size Insert size:
16
J1 Standard:
-
J21 Article number:
NTS-SEL0808-3
J3 Company code:
W
J41 Insert interface code:
WR$$NTSE16**3L*****
J42 Master insert identification:
NTS-E-16
J6 Connection code machine side:
VKT01B0808$$$$
J7 Data chip provision:
0
J8 Machining operation:
DGA
KAP Kappa:
0 °
KEYWORD:
Tool Item|Threading|Walter NTS|Tool holders for threading, external|D71NS
l<sub>1</sub> Overall length:
3,25 inch
l<sub>4</sub> Projection length:
0,87 inch
LF Functional length:
82,55 mm
LF_INCH Functional length:
3,25 inch
LPR Protruding length:
82,55 mm
LPR_INCH Protruding length:
3,25 inch
MANUFACTURER_AID:
NTS-SEL0808-3
MIID Master insert identification:
NTS-E-16
NOI Insert index count:
400
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-90
OAL Overall length:
82,55 mm
OAL_INCH Overall length:
3,25 inch
ORDER_UNIT:
PCE
PHI Phi:
-90 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Shank tool – External thread NTS-SE • inch
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181002
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181002
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181002
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181002
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181002
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181002
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181002
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181002
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181002
REFERENCE_FEATURE_GROUP_ID_GTC:
TRNTHEI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153308
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112809
REFERENCE_FEATURE_GROUP_ID_Walter:
NTS-SE-3-ISO
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
-1,5 °
SC Insert shape code:
T
SSC Insert seat size code:
16
SUPPLIER_AID:
5029259
SUPPLIER_ALT_AID:
5029259
TERRITORY:
US
THDH Thread hand:
R
TSYC Tool style code:
NTS-SE-3-ISO
Type Possible indexable inserts:
TS16-E
UDX.APPAREA:
Threading
UDX.BRAND:
Walter
UDX.CATFAM_CODE:
NTS-SE
UDX.CATFAM_DESCR:
Shank tool – External thread
UDX.DESCR_APPLICATION:
External thread
UDX.DESCR_BENEFITS:
Excellent thread quality thanks to precision-ground indexable insert
UDX.DESCR_TOOL:
Standard inclination angle 1.5°;NTS-SE external thread holder
UDX.DISCOUNTGROUP:
060
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
.2624
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
.9449
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
4.0551
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.2624
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
3.6204
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
.9449
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
D71NS
WT Weight of item:
0,119 kg
WT_INCH Weight of item:
0,2623474 lbs
XYWD xyw plane distance:
-82,55 mm
XYWD_INCH xyw plane distance:
-3,25 inch
XZWD xzw plane distance:
12,7 mm
XZWD_INCH xzw plane distance:
0,5 inch
YZWD yzw plane distance:
16 mm
YZWD_INCH yzw plane distance:
0,62992125984252 inch
