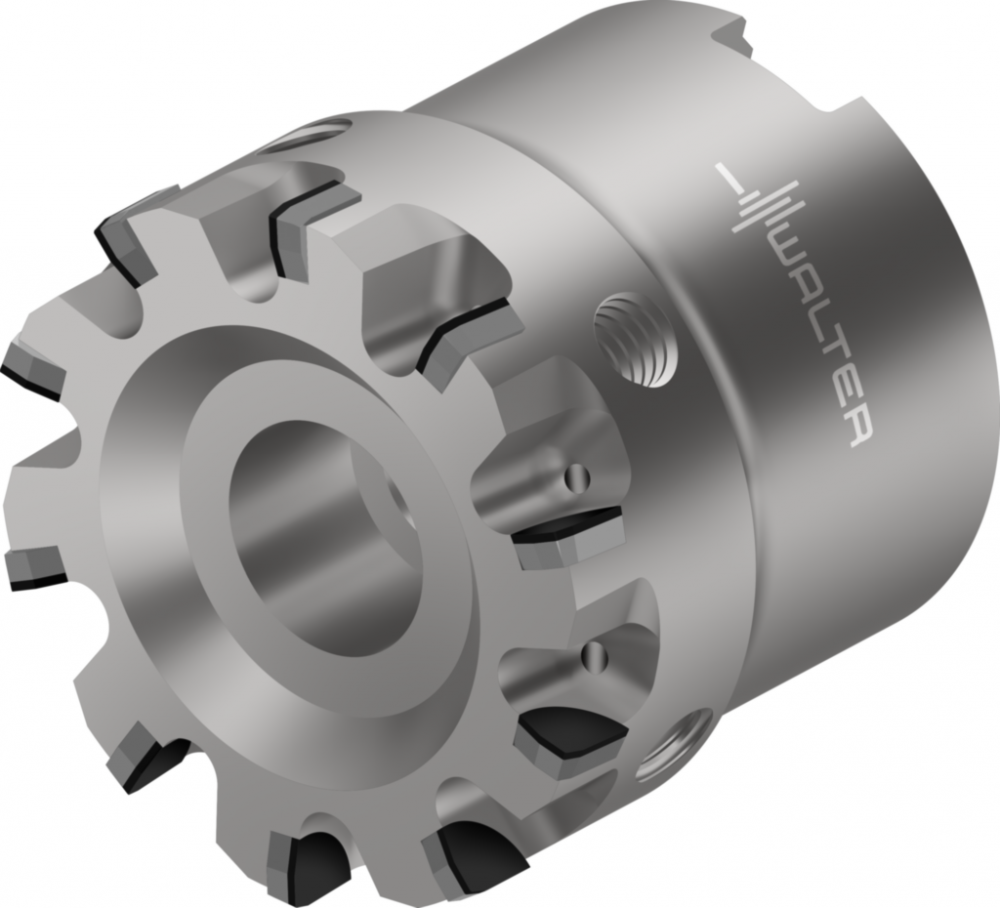

PCD face milling cutters : 7938977 | Aronson Campbell Industrial Supply

Category:

Milling

Subcategory:

Indexable

Subtype:

Shell Mills

A1 Cutting diameter:

40,6 mm

A1_INCH Cutting diameter:

1,59842519685039 inch

A3 Body diameter:

39,6 mm

A3_INCH Body diameter:

1,55905511811024 inch

APMX Depth of cut maximum:

1,1 mm

APMX_INCH Depth of cut maximum:

0,0433070866141732 inch

ART_ID_TO type=others:

5007100;5007488;5007490;5041187;5041188;5041191;6256806;6256981;6257544;6257588;6257735;6257802;7834972;7834979;7835006;7835012;8648909;8651277;8651278;8651279;8651382;8651383;8651384;8651540;8651541;8651542;8651555;8651556;8651557;8651675;8651676;8651677;

B11 Cutting width minimum:

5 mm

B11_INCH Cutting width minimum:

0,196850393700787 inch

B5 Overall height:

40 mm

B5_INCH Overall height:

1,5748031496063 inch

BD Body diameter:

39,6 mm

BD_INCH Body diameter:

1,55905511811024 inch

BLD Tool style code:

2

BMC Body material code:

S

C11 Connection code type machine side:

FDA

C12 Connection code form at machine side:

12

C14 Connection code unit base machine side:

1

C15 Connection code style machine side:

0

C2 Connection size code machine side:

160

C3 Connection diameter machine side:

16 mm

C3_INCH Connection diameter machine side:

0,62992125984252 inch

CBMD Chip breaker manufacturers designation:

STRAI

CCMS Connection code machine side:

FDA12G1600$$$$

CNSC Coolant entry style code:

1

COATING Coating:

PKD

CONTENT_UNIT:

PCE

CPDF Cutting pitch differential:

0

CUB Connection unit basis:

M

CUBPMS Connection unit base precision machine side:

G

CURRENCY:

USD

CXSC Coolant exit style code:

3

CZCMS Connection size code machine side:

160

D6 Rotational speed maximum:

40000 1/min

D7 Weight of item:

0,443 kg

D7_INCH Weight of item:

0,9766378 lbs

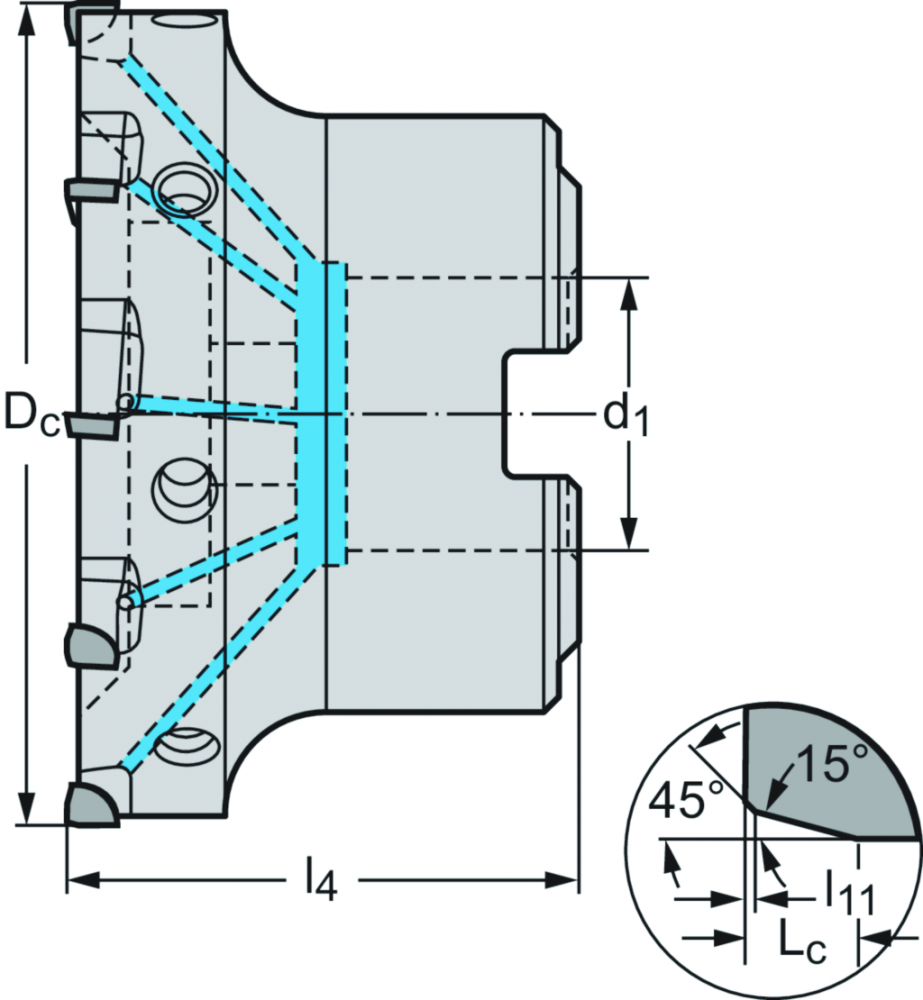

d1 Connection diameter:

16 mm

Dc Body diameter:

40 mm

DC Cutting diameter:

40,6 mm

DC_INCH Cutting diameter:

1,59842519685039 inch

Designation Tool designation:

MP060-040B10P WDN20

E2 Rake angle radial:

0 °

E3 Rake angle axial:

4 °

EAN:

0632113744

F1 Cutting direction:

R

F21 Peripheral effective cutting edge count:

10

F22 Face effective cutting edge count:

10

F3 Flute helix hand:

R

F4 Flute helix angle:

4 °

FHA Flute helix angle:

4 °

FHH Flute helix hand:

R

FMT Form type machine side:

INT

GAMF Rake angle radial:

0 °

GAMP Rake angle axial:

4 °

GRADE Grade manufacturer's designation:

WDN20

H11 Standard designation of the grade, main applic:

-

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

H3 Grade manufacturer's designation:

WDN20

H4 Body material code:

S

H5 Coating:

PKD

HAND Cutting direction:

R

IEP Interupted edge property:

0

J1 Standard:

ISO6462

J11 Standard letter to the standard number:

A

J21 Article number:

MP060-040B10P WDN20

J3 Company code:

W

J6 Connection code machine side:

FDA12G1600$$$$

J7 Data chip provision:

0

J8 Machining operation:

FNU

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

75 °

KEYWORD:

Solid Cutting Tool|Milling||Shell end mill|MP060

l11 Corner chamfer width:

0,1 mm

l4 Maximum overhang:

40 mm

Lc Cutting edge length:

1,1 mm

LB Head length:

40 mm

LB_INCH Head length:

1,5748031496063 inch

LF Functional length:

40 mm

LF_INCH Functional length:

1,5748031496063 inch

MANUFACTURER_AID:

MP060-040B10P WDN20

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-83

OAL Overall length:

40 mm

OAL_INCH Overall length:

1,5748031496063 inch

OHX Protruding length:

40 mm

OHX_INCH Protruding length:

1,5748031496063 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

PCD face milling cutters MP060 • Parallel bore DIN 138 transverse keyway • metric • flute helix angle 4°

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180702

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180702

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180702

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010509

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010509

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010509

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180702

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180702

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180702

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180702

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180702

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180702

REFERENCE_FEATURE_GROUP_ID_GTC:

MILFS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241623

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241623

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171613

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171613

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171613

REFERENCE_FEATURE_GROUP_ID_Walter:

MP060-B1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

40000 1/min

SUPPLIER_AID:

7938977

SUPPLIER_ALT_AID:

7938977

TERRITORY:

US

TSYC Tool style code:

MP060-B1

UDX.APPAREA:

Milling

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

κ = 75° up to L_c = 1.1 mm

UDX.CATFAM_CODE:

MP060

UDX.CATFAM_DESCR:

PCD face milling cutters

UDX.DESCR_APPLICATION:

Non-ferrous metals (e.g. aluminium, Al-Si alloys, magnesium and magnesium-based alloys), as well as plastics and fibre-reinforced plastics;Areas of use: Automotive industry, aerospace industry, general mechanical engineering;Milling operations with the hig

UDX.DESCR_BENEFITS:

Cost-effective, precise machining;Tool life increased by 20 to 200 times (compared to conventional solid carbide tools on the market);Reduced cutting forces and minimal vibration tendency due to optimised geometries;Low cutting tool material costs due to e

UDX.DESCR_TOOL:

MP060 face milling cutter with maximum number of teeth; dia. 40–125 mm

UDX.DISCOUNTGROUP:

044

UDX.ITEMTYPE:

Solid Cutting Tool

UDX.NET_WEIGHT:

.9768

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.9528

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

6.4961

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.9945

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

71.7410

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

3.7402

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

MP060

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

No application

UDX.RANKING_ISO_M:

No application

UDX.RANKING_ISO_N:

Main application

UDX.RANKING_ISO_O:

Additional application

UDX.RANKING_ISO_P:

No application

UDX.RANKING_ISO_S:

No application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

moderate

UDX.WORKING_CONDITION_ISO_O:

moderate

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

ULDR Usable length diameter ratio:

1,5

WT Weight:

0,4 kg

WT Weight of item:

0,443 kg

WT_INCH Weight of item:

0,9766378 lbs

XYWD xyw plane distance:

-40 mm

XYWD_INCH xyw plane distance:

-1,5748031496063 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

10

ZEFF Face effective cutting edge count:

10

ZEFP Peripheral effective cutting edge count:

10

Manufactured By:

Walter Tool

κ = 75° up to L_c = 1.1 mm

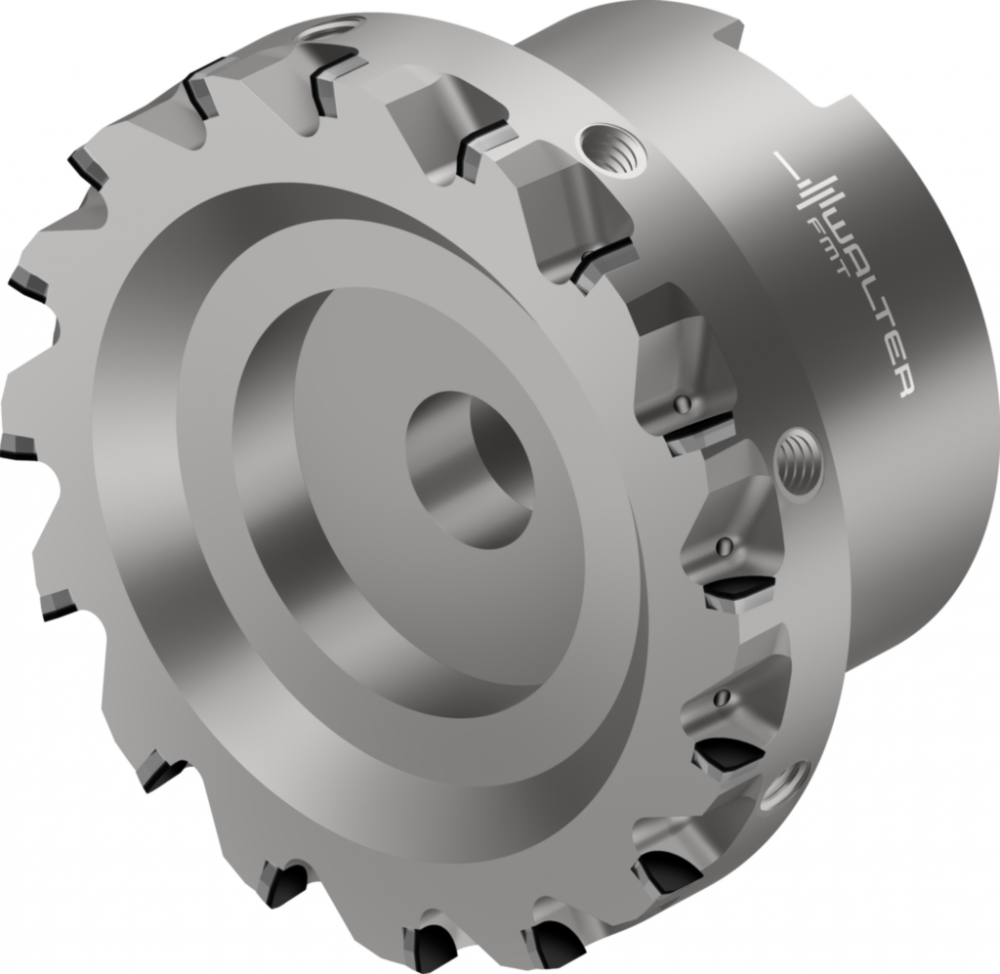

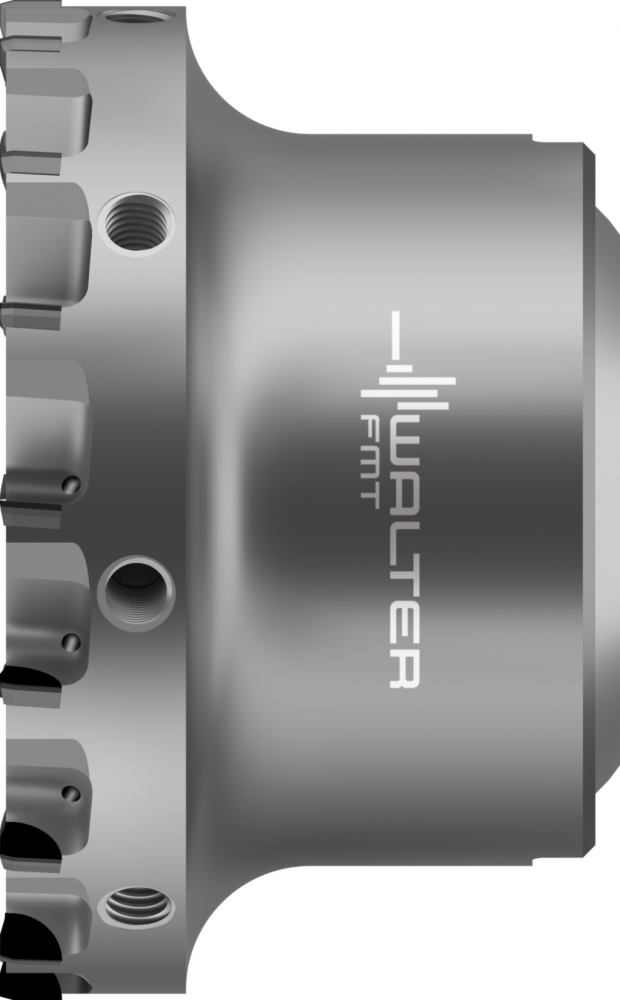

PCD face milling cutters by Walter Tool
