NCT adaptor : 5782604 | Aronson Campbell Industrial Supply

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Milling Holders

A1 Body diameter:

36 mm

A1_INCH Body diameter:

1,41732283464567 inch

A2 Body diameter 2:

36 mm

A2_INCH Body diameter 2:

1,41732283464567 inch

A4 Flange diameter:

80 mm

A4_INCH Flange diameter:

3,1496062992126 inch

ART_ID_TO type=others:

5006972;5006983;5006994;5007000;5007006;5007009;5007020;5007040;5007349;5007350;5007358;5007426;5007427;5021053;5034435;5034441;5333787;5906552;6119419;6119472;6180741

B1 Body length 1:

10 mm

B1_INCH Body length 1:

0,393700787401575 inch

B2 Length 2:

48 mm

B2_INCH Length 2:

1,88976377952756 inch

B3 Protruding length:

70 mm

B3_INCH Protruding length:

2,75590551181102 inch

B4 Overall length:

88 mm

B4_INCH Overall length:

3,46456692913386 inch

B71 Functional length:

70 mm

B71_INCH Functional length:

2,75590551181102 inch

BBD Balanced By Design:

0

BD Body diameter 4:

40 mm

BD_INCH Body diameter 4:

1,5748031496063 inch

BMC Body material code:

S

C11 Connection code type machine side:

NCT

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

800

C3 Connection diameter machine side:

80 mm

C3_INCH Connection diameter machine side:

3,1496062992126 inch

C4 Shank length:

18 mm

C4_INCH Shank length:

0,708661417322835 inch

C51 Connection code type workpiece side:

SAW

C52 Connection code form at workpiece side:

1

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

360

CCFMS Connection code form at machine side:

1

CCFWS Connection code form at workpiece side:

1

CCMS Connection code machine side:

NCT01C0800$$$$

CCTMS Connection code type machine side:

NCT

CCTWS Connection code type workpiece side:

SAW

CCWS Connection code workpiece side:

SAW01C0360****

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

800

CZCWS Connection size code workpiece side:

360

D6 Rotational speed maximum:

30000 1/min

D7 Weight of item:

1,156 kg

D7_INCH Weight of item:

2,5485176 lbs

d11 Connection size code:

T36

d14 Connection diameter:

36 mm

d1 Connection size code:

NCT 80

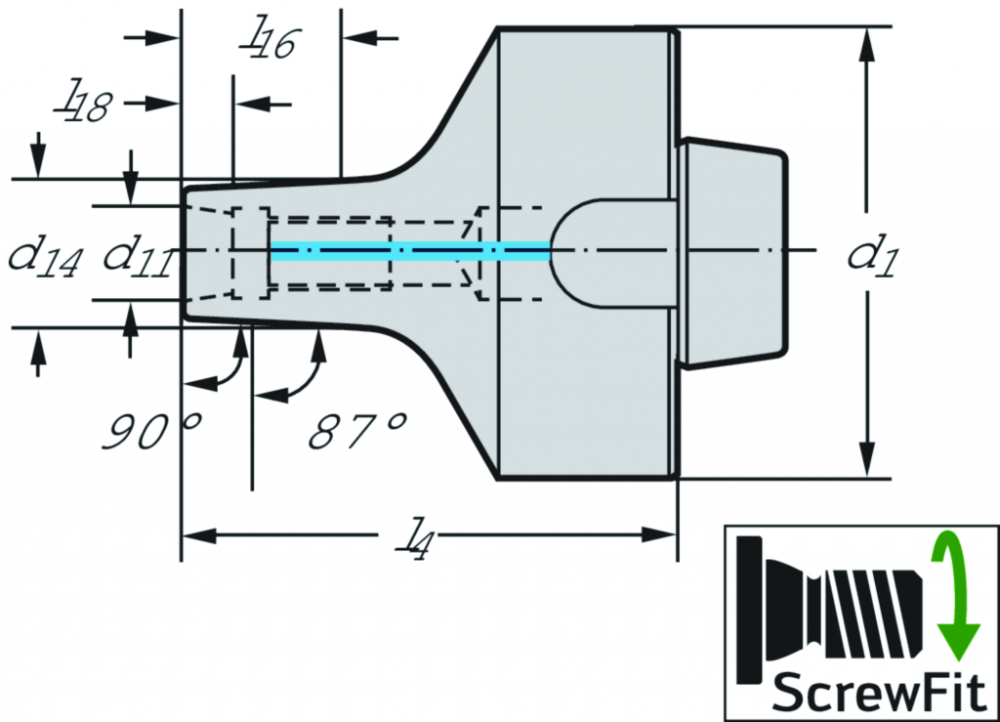

Designation Tool designation:

AK520.N80.T36.070CO

E2 Kappa:

0 °

EAN:

0564901851

FMT Form type workpiece side:

INT

G35 Mounting hole count:

1

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

J1 Standard:

-

J21 Article number:

AK520.N80.T36.070CO

J3 Company code:

W

J4 Connection code workpiece side:

SAW01C0360****

J6 Connection code machine side:

NCT01C0800$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders Novex-NC-Tools WALTER - Screw mounting SANDVIK Coromant|A1200

l16 Functional length:

48 mm

l18 Functional length:

10 mm

l4 Functional length:

70 mm

LB Length Body diameter 4:

51,75 mm

LB_INCH Length Body diameter 4:

2,03740157480315 inch

LF Functional length:

70 mm

LF_INCH Functional length:

2,75590551181102 inch

LPR Protruding length:

70 mm

LPR_INCH Protruding length:

2,75590551181102 inch

LS Shank length:

18 mm

LS_INCH Shank length:

0,708661417322835 inch

MANUFACTURER_AID:

AK520.N80.T36.070CO

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

88 mm

OAL_INCH Overall length:

3,46456692913386 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

NCT adaptor AK520 • metric • For ScrewFit front pieces

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022003

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

AK520.N

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

30000 1/min

SUPPLIER_AID:

5782604

SUPPLIER_ALT_AID:

5782604

TERRITORY:

US

TSYC Tool style code:

AK520.N

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

For ScrewFit front pieces

UDX.CATFAM_CODE:

AK520

UDX.CATFAM_DESCR:

NCT adaptor

UDX.DISCOUNTGROUP:

070

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

2.5490

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

3.0709

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

4.7244

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

2.5821

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

44.5522

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

3.0709

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

A1200

WT Weight:

1,16 kg

WT Weight of item:

1,156 kg

WT_INCH Weight of item:

2,5485176 lbs

XYWD xyw plane distance:

-70 mm

XYWD_INCH xyw plane distance:

-2,75590551181102 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Manufactured By:

Walter Tool

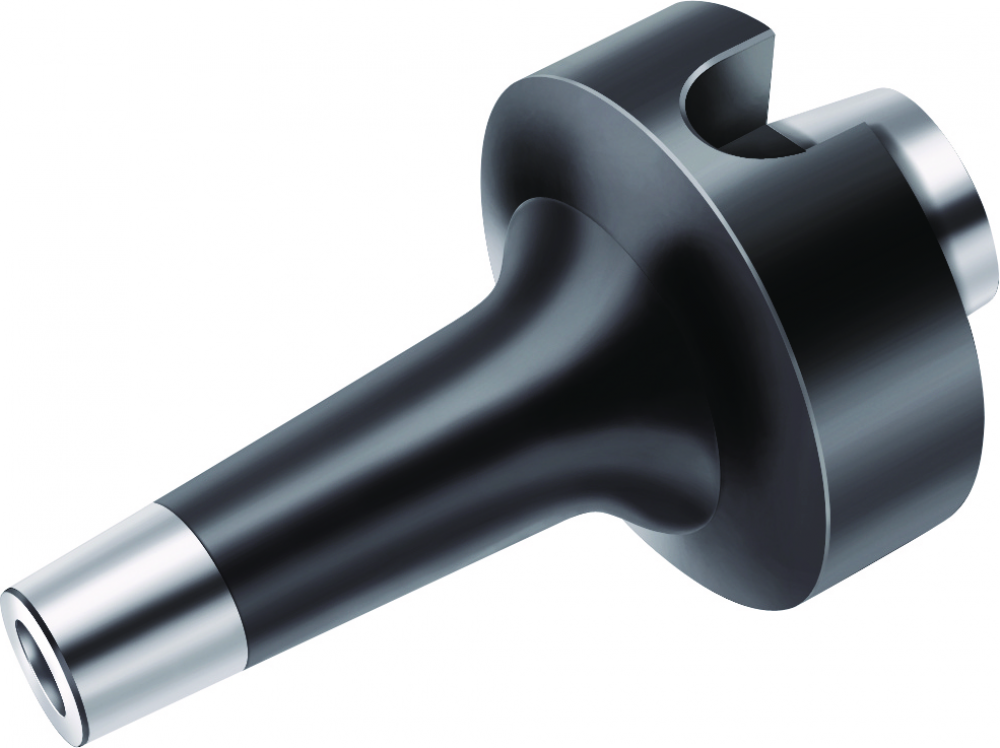

For ScrewFit front pieces

NCT adaptor by Walter Tool
