MAS-BT JIS B 6339 AD/B master by Walter Tool
$
862
62
/ 1
- Part Number: 6426300
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

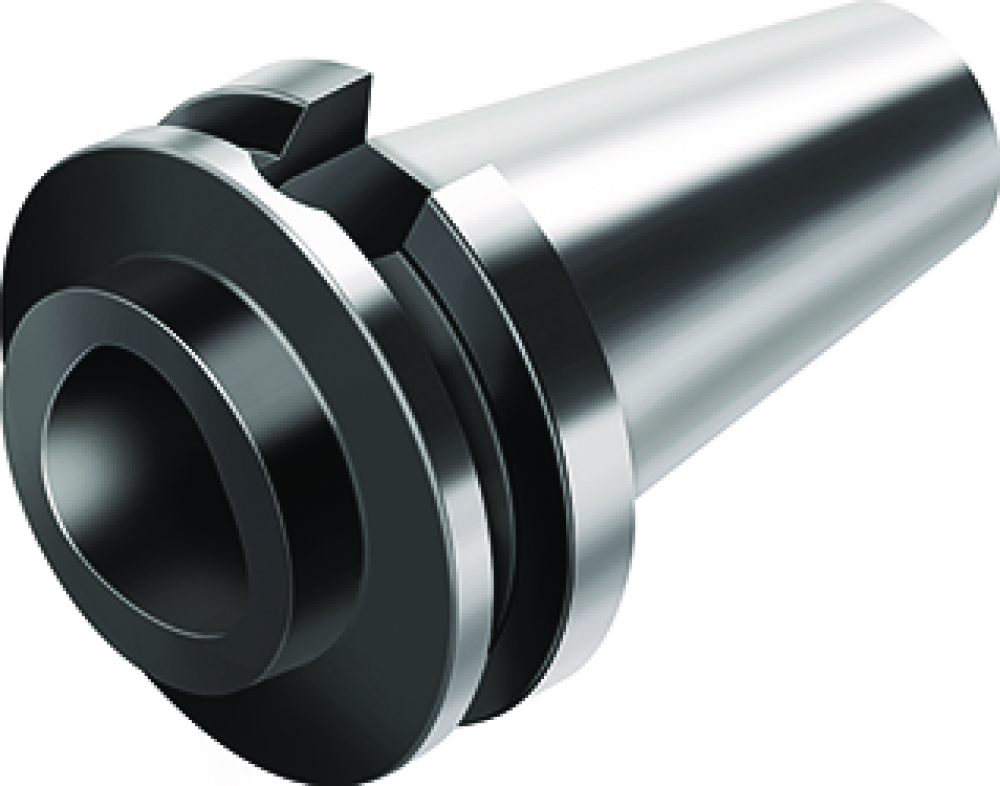

MAS-BT JIS B 6339 AD/B master C4-390B.555-40 040
MAS-BT JIS B 6339 AD/B master C.-390B.555 + C.-390B.558 • metric • BIG-PLUS SYSTEM ? BIG DAISHOWA licence • ISO 7388-2 • d1=40 • d11=C4
MAS-BT JIS B 6339 AD/B master C.-390B.555 + C.-390B.558 • metric • BIG-PLUS SYSTEM ? BIG DAISHOWA licence • ISO 7388-2 • d1=40 • d11=C4
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Milling Holders
A1 Body diameter:
40 mm
A1_INCH Body diameter:
1,5748031496063 inch
A4 Flange diameter:
63 mm
A4_INCH Flange diameter:
2,48031496062992 inch
B1 Body length 1:
13 mm
B1_INCH Body length 1:
0,511811023622047 inch
B3 Protruding length:
40 mm
B3_INCH Protruding length:
1,5748031496063 inch
B4 Overall length:
108,4 mm
B4_INCH Overall length:
4,26771653543307 inch
B71 Functional length:
40 mm
B71_INCH Functional length:
1,5748031496063 inch
BBD Balanced By Design:
0
BD Body diameter:
40 mm
BD_INCH Body diameter:
1,5748031496063 inch
BLD Tool style code:
508107
BMC Body material code:
S
C11 Connection code type machine side:
SKG
C12 Connection code form at machine side:
57
C13 Connection thread nominal size machine side:
M16
C14 Connection code unit base machine side:
9
C15 Connection code style machine side:
5
C2 Connection size code machine side:
400
C3 Connection diameter machine side:
40 mm
C3_INCH Connection diameter machine side:
1,5748031496063 inch
C4 Shank length:
65,4 mm
C4_INCH Shank length:
2,5748031496063 inch
C51 Connection code type workpiece side:
CCS
C52 Connection code form at workpiece side:
3
C54 Connection code unit base workpiece side:
9
C55 Connection code style workpiece side:
5
C6 Connection size code workpiece side:
400
CCFMS Connection code form at machine side:
57
CCFWS Connection code form at workpiece side:
3
CCMS Connection code machine side:
SKG57C0400$$$$
CCTMS Connection code type machine side:
SKG
CCTWS Connection code type workpiece side:
CCS
CCWS Connection code workpiece side:
CCS03C0400****
CNSC Coolant entry style code:
7
CONTENT_UNIT:
PCE
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
C
CUBPWS Connection unit base precision workpiece si:
C
CURRENCY:
USD
CXSC Coolant exit style code:
1
CZCMS Connection size code machine side:
400
CZCWS Connection size code workpiece side:
400
D6 Rotational speed maximum:
25000 1/min
D7 Weight of item:
0,989 kg
D7_INCH Weight of item:
2,1803494 lbs

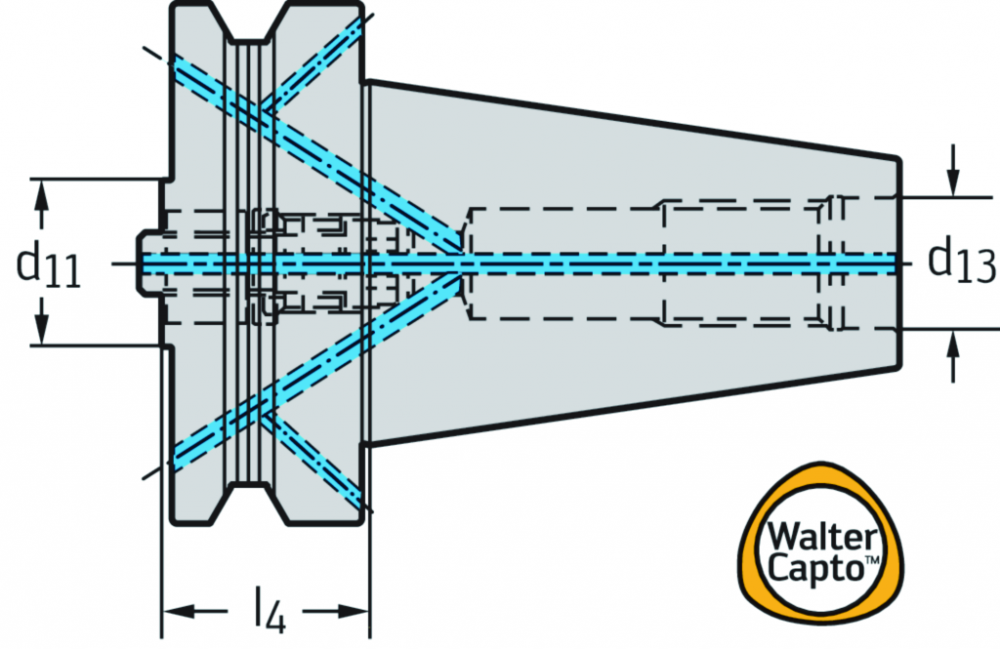

d<sub>11</sub> Connection size code:
C4
d<sub>13</sub> Pull stud, thread size:
M16
d<sub>1</sub> Connection size code:
BT40
Designation Tool designation:
C4-390B.555-40 040
E2 Kappa:
0 °
EAN:
0772948850
FMT Form type workpiece side:
INT
G35 Mounting hole count:
1
H21 Coolant entry style code:
7
H22 Coolant exit style code:
1
J1 Standard:
ISO26623-2
J11 Standard letter to the standard number:
AD/
J21 Article number:
C4-390B.555-40 040
J22 Product designation:
234
J3 Company code:
W
J4 Connection code workpiece side:
CCS03C0400****
J6 Connection code machine side:
SKG57C0400$$$$
J7 Data chip provision:
0
KAP Kappa:
0 °
KEYWORD:
Adaptive Item|Holding||Basic Holders steep taper shank - Coromant Capto System SANDVIK|A1100
l<sub>4</sub> Functional length:
40 mm
LF Functional length:
40 mm
LF_INCH Functional length:
1,5748031496063 inch
LPR Protruding length:
40 mm
LPR_INCH Protruding length:
1,5748031496063 inch
LS Shank length:
65,4 mm
LS_INCH Shank length:
2,5748031496063 inch
MANUFACTURER_AID:
C4-390B.555-40 040
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-89
OAL Overall length:
108,4 mm
OAL_INCH Overall length:
4,26771653543307 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
MAS-BT JIS B 6339 AD/B master C.-390B.555 + C.-390B.558 • metric • BIG-PLUS SYSTEM − BIG DAISHOWA licence • ISO 7388-2
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21022002
REFERENCE_FEATURE_GROUP_ID_GTC:
ADPRS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112807
REFERENCE_FEATURE_GROUP_ID_Walter:
390B.558/555-CAPTO
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RPMX Rotational speed maximum:
25000 1/min
SUPPLIER_AID:
6426300
SUPPLIER_ALT_AID:
6727986
TERRITORY:
US
TSYC Tool style code:
390B.558/555-CAPTO
UDX.APPAREA:
Holding
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
ISO 7388-2
UDX.BULLETTEXT_2:
BIG-PLUS SYSTEM − BIG DAISHOWA licence
UDX.CATFAM_CODE:
C.-390B.555 + C.-390B.558
UDX.CATFAM_DESCR:
MAS-BT JIS B 6339 AD/B master
UDX.DISCOUNTGROUP:
070
UDX.ITEMTYPE:
Adaptive Item
UDX.NET_WEIGHT:
2.1807
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
2.9528
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
4.2913
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
2.2932
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
37.4152
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
2.9528
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
A1100
WT Weight:
0,99 kg
WT Weight of item:
0,989 kg
WT_INCH Weight of item:
2,1803494 lbs
XYWD xyw plane distance:
-40 mm
XYWD_INCH xyw plane distance:
-1,5748031496063 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Manufactured By:
Walter Tool
Other Details
BIG-PLUS SYSTEM − BIG DAISHOWA licence
ISO 7388-2
ISO 7388-2|BIG-PLUS SYSTEM − BIG DAISHOWA licence
