Indexable insert thread milling cutters : 5115660 | Aronson Campbell Industrial Supply

Category:

Turning

Subcategory:

External Turning

Subtype:

External Threading Toolholders

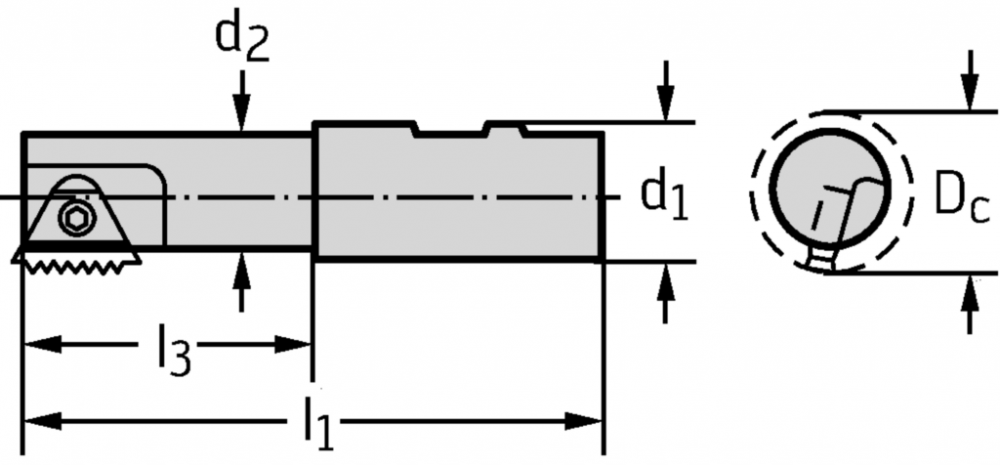

A1 Cutting diameter:

30 mm

A1_INCH Cutting diameter:

1,18110236220472 inch

A5 Neck diameter:

24 mm

A5_INCH Neck diameter:

0,94488188976378 inch

ART_ID_TO type=others:

5115638, ;5115646, ;5115647, ;5115648, ;5115651, ;5115652, ;5115654, 5007114;5007124;5007378;5007414;5007415;5012624;5012630;5012639;5887143;6257845;6257862;6257868;6257934;6358364;6362308;6381038;6381039;6381079;6381125;6381126;6381127;6381129;6381180;638

B3 Protruding length:

52 mm

B3_INCH Protruding length:

2,04724409448819 inch

B4 Usable length:

52 mm

B4_INCH Usable length:

2,04724409448819 inch

B5 Overall length:

110 mm

B5_INCH Overall length:

4,33070866141732 inch

BLD Tool style code:

5

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

10

C14 Connection code unit base machine side:

1

C15 Connection code style machine side:

5

C2 Connection size code machine side:

160

C3 Connection diameter machine side:

16 mm

C31 ISO-tolerance class shank diameter:

h6

C3_INCH Connection diameter machine side:

0,62992125984252 inch

C4 Shank length:

48 mm

C4_INCH Shank length:

1,88976377952756 inch

CCMS Connection code machine side:

ZYL10G1600h$06

CICT Cutting item count:

1

CONTENT_UNIT:

PCE

CURRENCY:

USD

CXSC Coolant exit style code:

3

D11 Mill tool type ISO:

T

D6 Rotational speed maximum:

80000 1/min

D7 Weight of item:

0,366 kg

D7_INCH Weight of item:

0,8068836 lbs

D9 Adjustment property:

0

DC Cutting diameter:

30 mm

DC_INCH Cutting diameter:

1,18110236220472 inch

DN Neck diameter:

24 mm

DN_INCH Neck diameter:

0,94488188976378 inch

EAN:

4042446141059

F1 Cutting direction:

R

F21 Peripheral effective cutting edge count:

1

F23 Number of insert mounting levels:

1

F24 Number of inserts per mounting level:

1

G15 Peripheral mounted insert count:

1

G21 Clamping type code:

S

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

H4 Body material code:

S

HAND Cutting direction:

R

IIC Insert interface code:

WR$$TM05****3R*****

J1 Standard:

ISO3338-2

J11 Standard letter to the standard number:

WE

J21 Article number:

T9111000-25X5

J3 Company code:

W

J51 Insert interface code:

WR$$TM05****3R*****

J6 Connection code machine side:

ZYL10G1600h$06

J7 Data chip provision:

0

J8 Machining operation:

FSC

KAP Kappa:

0 °

KEYWORD:

Tool Item|Threading|TMI|Thread-milling cutters, (1 on 1)|1T9111000

LF Functional length:

86 mm

LF_INCH Functional length:

3,38582677165354 inch

LU Usable length:

52 mm

LU_INCH Usable length:

2,04724409448819 inch

MANUFACTURER_AID:

T9111000-25X5

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-87

OAL Overall length:

110 mm

OAL_INCH Overall length:

4,33070866141732 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Indexable insert thread milling cutters

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180805

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180805

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180805

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180805

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180805

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180805

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180805

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180805

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180805

REFERENCE_FEATURE_GROUP_ID_GTC:

MILTHGI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241623

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241623

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171613

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171613

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171613

REFERENCE_FEATURE_GROUP_ID_Walter:

T9111000

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SUPPLIER_AID:

5115660

SUPPLIER_ALT_AID:

5115660

TERRITORY:

US

TSYC Tool style code:

T9111000

UDX.APPAREA:

Threading

UDX.BRAND:

Walter Prototyp

UDX.CATFAM_DESCR:

Indexable insert thread milling cutters

UDX.DISCOUNTGROUP:

TIB

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.8070

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.1811

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

4.5276

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.8533

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

6.3160

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.1811

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

1T9111000

WT Weight of item:

0,366 kg

WT_INCH Weight of item:

0,8068836 lbs

ZEFP Peripheral effective cutting edge count:

1

Manufactured By:

Walter Tool

Indexable insert thread milling cutters by Walter Tool
