Heavy Duty Face Mill by Walter Tool
$
1,978
00
/ 1
- Part Number: 6657753
- UPC:
- Availability: Nothing
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

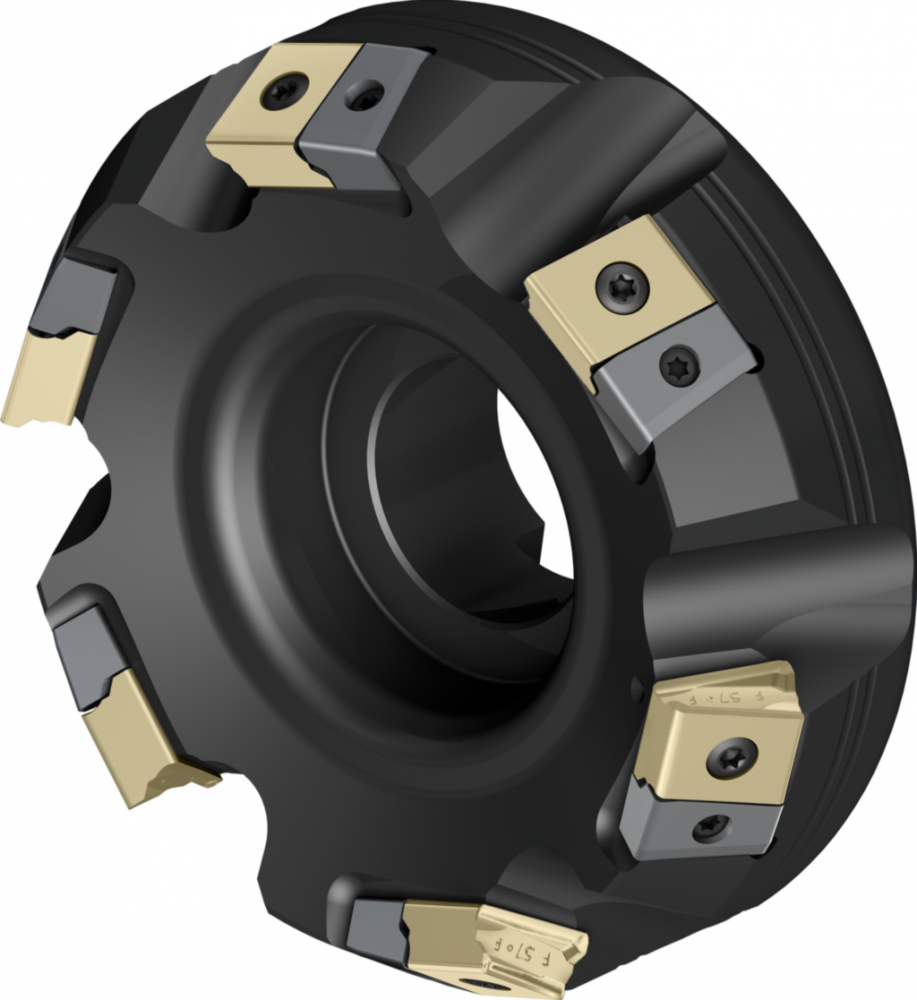

Heavy Duty Face Mill M3016-125-B40-06-16
Heavy Duty Face Mill M3016 • Walter BLAXX • Parallel bore DIN 138 transverse keyway • ?=60° • metric • LN .. 2010 .. • Dc=4.9213in • Z=6
Heavy Duty Face Mill M3016 • Walter BLAXX • Parallel bore DIN 138 transverse keyway • ?=60° • metric • LN .. 2010 .. • Dc=4.9213in • Z=6
Specifications
Details
Category:
Milling
Subcategory:
Indexable
Subtype:
Indexable Face Mills
A1 Cutting diameter:
125 mm
A1_INCH Cutting diameter:
4,92125984251969 inch
A2 Cutting diameter maximum:
143,6 mm
A2_INCH Cutting diameter maximum:
5,65354330708661 inch
A3 Body diameter:
142,4 mm
A3_INCH Body diameter:
5,60629921259843 inch
A4 Hub diameter:
80 mm
A4_INCH Hub diameter:
3,1496062992126 inch
A5 Counterbore diameter connection bore:
58 mm
A5_INCH Counterbore diameter connection bore:
2,28346456692913 inch
APMX Depth of cut maximum:
16 mm
APMX_INCH Depth of cut maximum:
0,62992125984252 inch
ART_ID_TO type=accessories:
5043211,5043212,5050322,5050333,5107620,5107627,6421702
ART_ID_TO type=consists_of:
5334328,6657791,5292745
ART_ID_TO type=others:
6766134, ;6766137, ;6766138, ;7169044, ;7170506, ;7924244, ;8462559, 5007104;5007108;5007368;5007372;5007496;7834978;7835005;7835011;7835018;8648973;8648977
B2 Cutting depth maximum:
16 mm
B2_INCH Cutting depth maximum:
0,62992125984252 inch
B5 Overall length:
63 mm
B5_INCH Overall length:
2,48031496062992 inch
B6 Counterbore depth connection bore:
30 mm
B6_INCH Counterbore depth connection bore:
1,18110236220472 inch
B71 Functional length:
63 mm
B71_INCH Functional length:
2,48031496062992 inch
BD Body diameter:
142,4 mm
BD_INCH Body diameter:
5,60629921259843 inch
BLD Tool style code:
1
BMC Body material code:
S
C11 Connection code type machine side:
FDA
C12 Connection code form at machine side:
22
C14 Connection code unit base machine side:
0
C15 Connection code style machine side:
0
C2 Connection size code machine side:
400
C3 Connection diameter machine side:
40 mm
C3_INCH Connection diameter machine side:
1,5748031496063 inch
CCMS Connection code machine side:
FDA22G4000$$$$
CICT (F) Face mounted insert count:
6
CICT Cutting item count:
6
CNSC Coolant entry style code:
0
CONTENT_UNIT:
PCE
CPDF Cutting pitch differential:
1
CUB Connection unit basis:
M
CUBPMS Connection unit base precision machine side:
G
CURRENCY:
USD
CXSC Coolant exit style code:
0
CZCMS Connection size code machine side:
400
D4 Adjustment property:
0
D6 Rotational speed maximum:
1300 1/min
D7 Weight of item:
5,15 kg
D7_INCH Weight of item:
11,35369 lbs
d<sub>1</sub> Connection diameter:
40 mm
D<sub>a</sub> Maximum cutting diameter:
143,6 mm
D<sub>c</sub> Body diameter:
125 mm
DC Cutting diameter:
125 mm
DCX Cutting diameter maximum:
143,6 mm
DCX_INCH Cutting diameter maximum:
5,65354330708661 inch
DC_INCH Cutting diameter:
4,92125984251969 inch
Designation Tool designation:
M3016-125-B40-06-16
E1 Tool cutting edge angle:
60 °
E2 Rake angle radial:
0 °
E3 Rake angle axial:
0 °
E4 Ramping angle maximum:
0 °
E5 Plunge depth maximum:
3,1 mm
E5_INCH Plunge depth maximum:
0,122047244094488 inch
EAN:
0757523725
F1 Cutting direction:
R
F21 Peripheral effective cutting edge count:
6
F22 Face effective cutting edge count:
6
F23 Number of insert mounting levels:
1
F24 Number of inserts per mounting level:
6
FMT Form type machine side:
INT
G13 Face mounted insert count:
6
G21 Clamping type code:
S
G22 Cutting item type count:
1
H21 Coolant entry style code:
0
H22 Coolant exit style code:
0
H4 Body material code:
S
HAND Cutting direction:
R
J1 Standard:
-
J21 Article number:
M3016-125-B40-06-16
J22 Product designation:
5146
J3 Company code:
W
J41 Insert interface code:
WR$$LN2010123R*XT12
J42 Master insert identification, position A:
LNMX 20 10 12
J45 Master insert identification, position A:
LNMX 20 10 12
J6 Connection code machine side:
FDA22G4000$$$$
J7 Data chip provision:
0
J8 Machining operation:
FPL
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
60 °
KEYWORD:
Tool Item|Milling|Walter BLAXX|Face milling cutters|M3016
l<sub>4</sub> Functional length:
63 mm
L<sub>c</sub> Cutting edge length:
16 mm
LB Body length:
63 mm
LB_INCH Body length:
2,48031496062992 inch
LF Functional length:
63 mm
LF_INCH Functional length:
2,48031496062992 inch
MANUFACTURER_AID:
M3016-125-B40-06-16
No. of inserts Number of indexable inserts:
6
NOI Insert index count:
1000
NO_CU_PER_OU:
1
OAL Overall length:
63 mm
OAL_INCH Overall length:
2,48031496062992 inch
OHX Protruding length:
63 mm
OHX_INCH Protruding length:
2,48031496062992 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Heavy Duty Face Mill M3016 • Walter BLAXX • Parallel bore DIN 138 transverse keyway • κ=60° • metric
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010508
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010508
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010508
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21180901
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21180901
REFERENCE_FEATURE_GROUP_ID_GTC:
MILFI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
23241625
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
23241625
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
23171612
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23171612
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
23171612
REFERENCE_FEATURE_GROUP_ID_Walter:
M3016-B2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RMPX Ramping angle maximum:
0 °
RPMX Rotational speed maximum:
1300 1/min
SC Insert shape code:
L
SSC Insert seat size code:
20
SUPPLIER_AID:
6657753
SUPPLIER_ALT_AID:
6657753
TERRITORY:
US
TSYC Tool style code:
M3016-B2
Type Possible indexable inserts:
LNMX201012R
UDX.APPAREA:
Milling
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
4 cutting edges per indexable insert
UDX.BULLETTEXT_2:
Tangential arrangement of indexable inserts
UDX.CATFAM_CODE:
M3016
UDX.CATFAM_DESCR:
Heavy Duty Face Mill
UDX.DESCR_APPLICATION:
Face milling with maximum metal removal rate in all steel and cast iron workpieces;Large-volume workpieces such as machine housings for wind turbines, rolling mill steel plates, large engines, etc.
UDX.DESCR_BENEFITS:
High level of process reliability thanks to stable, tangential indexable inserts;High level of cost-efficiency;Maximum metal removal rate;Low cutting tool material costs due to four cutting edges per indexable insert;Emergency cutting function of the stop
UDX.DESCR_TOOL:
Walter BLAXX 60° face milling cutter for heavy-duty cutting;Tangential indexable insert with four cutting edges;Depth of cut 16 mm;Indexable insert contact against carbide stop piece with emergency cutting function;Protection from corrosion and wear thank
UDX.DISCOUNTGROUP:
049
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
11.3558
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
5.1181
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
10.8268
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
11.3624
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
458.1358
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
8.2677
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
M3016
UDX.RANKING_ISO_H:
No application
UDX.RANKING_ISO_K:
Main application
UDX.RANKING_ISO_M:
Additional application
UDX.RANKING_ISO_N:
No application
UDX.RANKING_ISO_O:
No application
UDX.RANKING_ISO_P:
Main application
UDX.RANKING_ISO_S:
No application
UDX.WORKING_CONDITION_ISO_H:
n/a
UDX.WORKING_CONDITION_ISO_K:
n/a
UDX.WORKING_CONDITION_ISO_M:
n/a
UDX.WORKING_CONDITION_ISO_N:
n/a
UDX.WORKING_CONDITION_ISO_O:
n/a
UDX.WORKING_CONDITION_ISO_P:
n/a
UDX.WORKING_CONDITION_ISO_S:
n/a
ULDR Usable length diameter ratio:
1,204
WT Weight:
5,15 kg
WT Weight of item:
5,15 kg
WT_INCH Weight of item:
11,35369 lbs
XYWD xyw plane distance:
-63 mm
XYWD_INCH xyw plane distance:
-2,48031496062992 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Z Number of teeth:
6
ZADJ Insert adjustable count:
0
ZEFF Face effective cutting edge count:
6
ZEFP Peripheral effective cutting edge count:
6
Manufactured By:
Walter Tool
Other Details
4 cutting edges per indexable insert
4 cutting edges per indexable insert|Tangential arrangement of indexable inserts
Tangential arrangement of indexable inserts
