DIN 69893-1 A shell mill arbor by Walter Tool
$
396
63
/ 1
- Part Number: 5007091
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

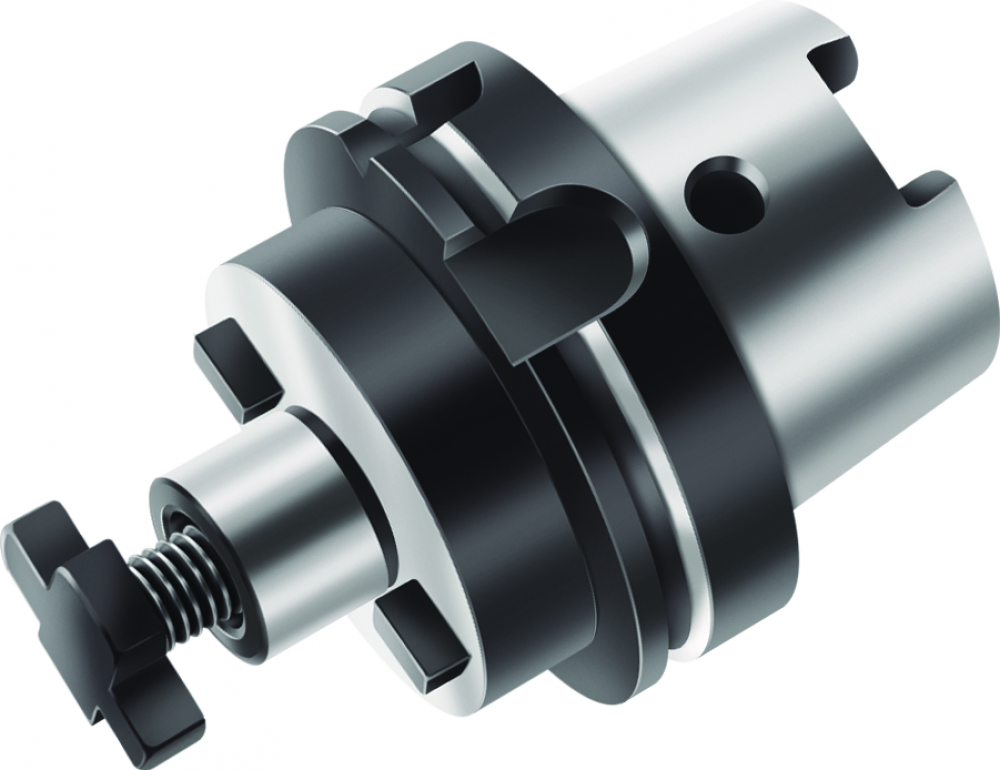

DIN 69893-1 A shell mill arbor A155.7.063.050.22.HSK
DIN 69893-1 A shell mill arbor A155...HSK • metric • For milling tools with parallel bore according to DIN 138 • d1=63 • d11=22
DIN 69893-1 A shell mill arbor A155...HSK • metric • For milling tools with parallel bore according to DIN 138 • d1=63 • d11=22
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Adapters
A1 Body diameter:
48 mm
A1_INCH Body diameter:
1,88976377952756 inch
A4 Flange diameter:
63 mm
A4_INCH Flange diameter:
2,48031496062992 inch
ART_ID_TO type=accessories:
5008384,5008434,5008699,5008712,5006905
ART_ID_TO type=consists_of:
5008378
B1 Body length 1:
24 mm
B1_INCH Body length 1:
0,94488188976378 inch
B3 Protruding length:
69 mm
B3_INCH Protruding length:
2,71653543307087 inch
B4 Overall length:
101 mm
B4_INCH Overall length:
3,97637795275591 inch
B71 Functional length:
50 mm
B71_INCH Functional length:
1,96850393700787 inch
BBD Balanced By Design:
0
BD Body diameter:
48 mm
BD_INCH Body diameter:
1,88976377952756 inch
BMC Body material code:
S
C11 Connection code type machine side:
HSK
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
8
C15 Connection code style machine side:
5
C2 Connection size code machine side:
630
C3 Connection diameter machine side:
63 mm
C3_INCH Connection diameter machine side:
2,48031496062992 inch
C4 Shank length:
19 mm
C4_INCH Shank length:
0,748031496062992 inch
C51 Connection code type workpiece side:
FDA
C52 Connection code form at workpiece side:
12
C54 Connection code unit base workpiece side:
0
C55 Connection code style workpiece side:
0
C6 Connection size code workpiece side:
220
C71 Connection diameter min:
22 mm
C71_INCH Connection diameter min:
0,866141732283465 inch
C81 Clamping length maximum:
19 mm
C81_INCH Clamping length maximum:
0,748031496062992 inch
CCFMS Connection code form at machine side:
1
CCFWS Connection code form at workpiece side:
12
CCMS Connection code machine side:
HSK01C0630$$$$
CCTMS Connection code type machine side:
HSK
CCTWS Connection code type workpiece side:
FDA
CCWS Connection code workpiece side:
FDA22G2200****
CNSC Coolant entry style code:
0
CONTENT_UNIT:
PCE
CUB Connection unit basis:
M
CUBPMS Connection unit base precision machine side:
C
CUBPWS Connection unit base precision workpiece si:
G
CURRENCY:
USD
CXSC Coolant exit style code:
0
CZCMS Connection size code machine side:
630
CZCWS Connection size code workpiece side:
220
D6 Rotational speed maximum:
30000 1/min
D7 Weight of item:
1,096 kg
D7_INCH Weight of item:
2,4162416 lbs

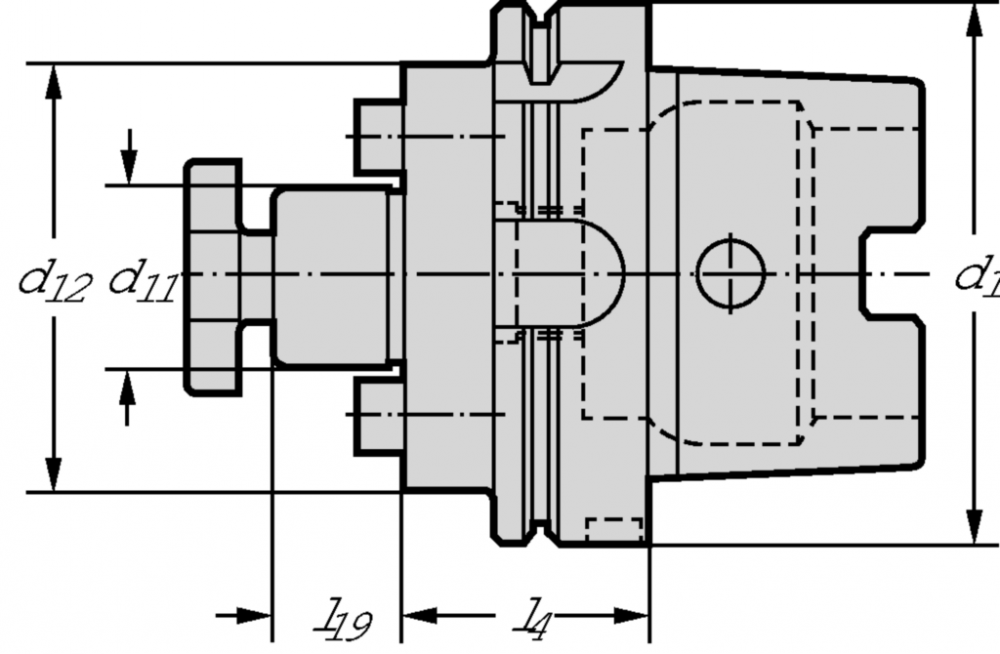

d<sub>11</sub> Connection size code:
22
d<sub>12</sub> Body diameter:
48 mm
d<sub>1</sub> Connection size code:
HSK-A63
Designation Tool designation:
A155.7.063.050.22.HSK
E2 Kappa:
0 °
EAN:
0332977851
FMT Form type workpiece side:
EXT
G35 Mounting hole count:
1
H21 Coolant entry style code:
0
H22 Coolant exit style code:
0
J1 Standard:
ISO12164-1
J11 Standard letter to the standard number:
A
J21 Article number:
A155.7.063.050.22.HSK
J3 Company code:
W
J4 Connection code workpiece side:
FDA12G2200****
J6 Connection code machine side:
HSK01C0630$$$$
J7 Data chip provision:
0
KAP Kappa:
0 °
KEYWORD:
Adaptive Item|Holding||Basic Holders Hollow taper shank - Milling arbor mounting|A1200
l<sub>19</sub> Shank length:
19 mm
l<sub>4</sub> Functional length:
69 mm
LF Functional length:
50 mm
LF_INCH Functional length:
1,96850393700787 inch
LPR Protruding length:
69 mm
LPR_INCH Protruding length:
2,71653543307087 inch
LS Shank length:
19 mm
LSC Clamping length maximum:
19 mm
LSC_INCH Clamping length maximum:
0,748031496062992 inch
LS_INCH Shank length:
0,748031496062992 inch
MANUFACTURER_AID:
A155.7.063.050.22.HSK
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-89
OAL Overall length:
101 mm
OAL_INCH Overall length:
3,97637795275591 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
DIN 69893-1 A shell mill arbor A155...HSK • metric • For milling tools with parallel bore according to DIN 138
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21022002
REFERENCE_FEATURE_GROUP_ID_GTC:
ADPRS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112807
REFERENCE_FEATURE_GROUP_ID_Walter:
A155.7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RPMX Rotational speed maximum:
30000 1/min
SUPPLIER_AID:
5007091
SUPPLIER_ALT_AID:
5007091
TERRITORY:
US
TSYC Tool style code:
A155.7
UDX.APPAREA:
Holding
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
For milling tools with parallel bore according to DIN 138
UDX.CATFAM_CODE:
A155...HSK
UDX.CATFAM_DESCR:
DIN 69893-1 A shell mill arbor
UDX.DISCOUNTGROUP:
076
UDX.ITEMTYPE:
Adaptive Item
UDX.NET_WEIGHT:
2.4167
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
2.7559
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
4.4882
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
2.4167
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
34.0879
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
2.7559
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
A1200
WT Weight:
1,1 kg
WT Weight of item:
1,096 kg
WT_INCH Weight of item:
2,4162416 lbs
XYWD xyw plane distance:
-50 mm
XYWD_INCH xyw plane distance:
-1,96850393700787 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Manufactured By:
Walter Tool
Other Details
For milling tools with parallel bore according to DIN 138
