DIN 1835 A adaptor : 6265817 | Aronson Campbell Industrial Supply

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Milling Holders

A1 Body diameter:

14,5 mm

A1_INCH Body diameter:

0,570866141732283 inch

ART_ID_TO type=others:

6358364;6362308;6381038;6381039;6381079;6381125;6381126;6381127;6381129;6381180;6381181;6852043;6852047;6852048;6852122;6852124;8156068;8156069;8156075;8156076;8156081;8156082;8156087;8156088;8698236;8698238;8698250;8698256;8698258;8698260;8698266;8698268;

B1 Body length 1:

37 mm

B1_INCH Body length 1:

1,45669291338583 inch

B3 Protruding length:

120 mm

B3_INCH Protruding length:

4,7244094488189 inch

B4 Overall length:

170 mm

B4_INCH Overall length:

6,69291338582677 inch

B71 Functional length:

120 mm

B71_INCH Functional length:

4,7244094488189 inch

BBD Balanced By Design:

0

BD Body diameter:

14,5 mm

BD_INCH Body diameter:

0,570866141732283 inch

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

1

C15 Connection code style machine side:

5

C2 Connection size code machine side:

160

C3 Connection diameter machine side:

16 mm

C3_INCH Connection diameter machine side:

0,62992125984252 inch

C4 Shank length:

48 mm

C4_INCH Shank length:

1,88976377952756 inch

C51 Connection code type workpiece side:

SAW

C52 Connection code form at workpiece side:

1

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

140

CCFMS Connection code form at machine side:

1

CCFWS Connection code form at workpiece side:

1

CCMS Connection code machine side:

ZYL01G1600$$$$

CCTMS Connection code type machine side:

ZYL

CCTWS Connection code type workpiece side:

SAW

CCWS Connection code workpiece side:

SAW01C0140****

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

G

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

160

CZCWS Connection size code workpiece side:

140

D6 Rotational speed maximum:

50000 1/min

D7 Weight of item:

0,297 kg

D7_INCH Weight of item:

0,6547662 lbs

d11 Connection size code:

T14

d1 Connection size code:

16

Designation Tool designation:

AK512.Z16.T14.120

E2 Kappa:

0 °

EAN:

0671568851

FMT Form type workpiece side:

INT

G35 Mounting hole count:

1

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

J1 Standard:

-

J21 Article number:

AK512.Z16.T14.120

J3 Company code:

W

J4 Connection code workpiece side:

SAW01C0140****

J6 Connection code machine side:

ZYL01G1600$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders Ingersoll Tool connection - Screw mounting SANDVIK Coromant|A1200

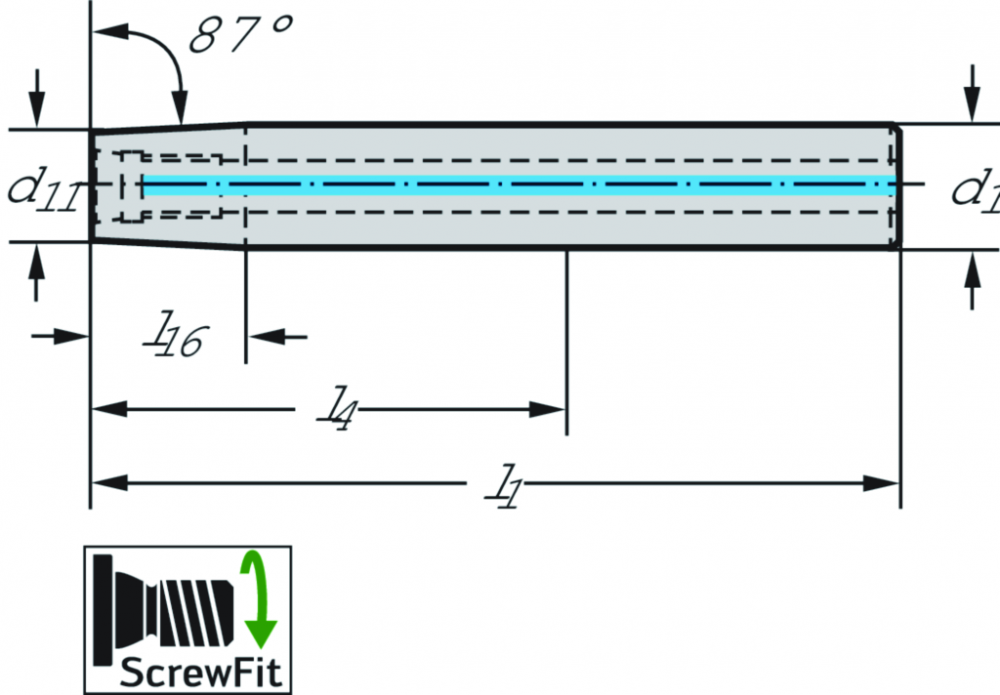

l16 Usable length:

37 mm

l1 Overall length:

170 mm

l4 Functional length:

120 mm

LF Functional length:

120 mm

LF_INCH Functional length:

4,7244094488189 inch

LPR Protruding length:

120 mm

LPR_INCH Protruding length:

4,7244094488189 inch

LS Shank length:

48 mm

LS_INCH Shank length:

1,88976377952756 inch

MANUFACTURER_AID:

AK512.Z16.T14.120

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

170 mm

OAL_INCH Overall length:

6,69291338582677 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

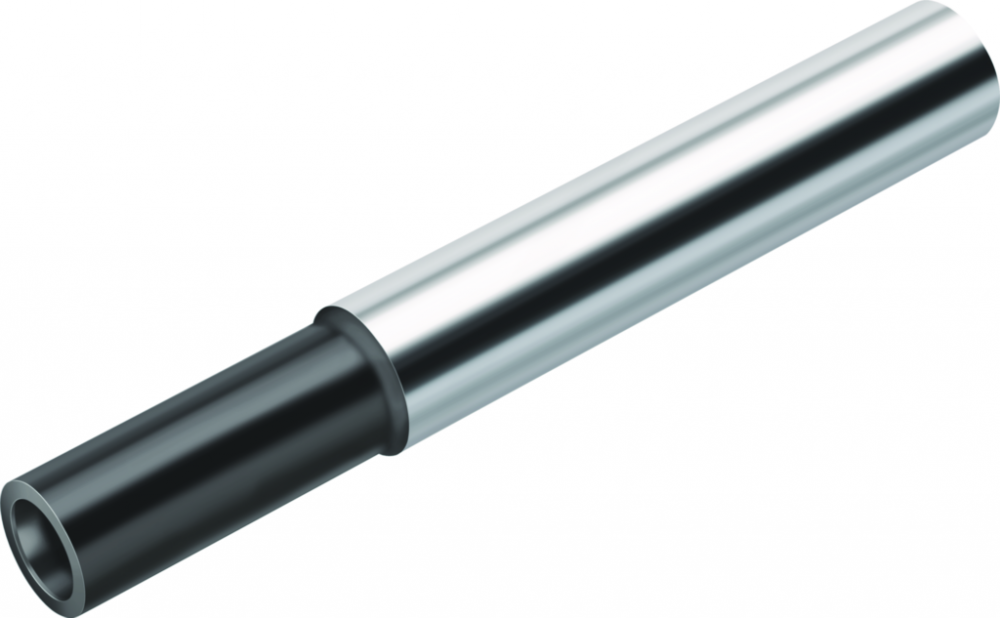

DIN 1835 A adaptor AK512 • metric • For ScrewFit front pieces • Steel shank with solid carbide core

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022001

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

AK512.Z-B

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

50000 1/min

SUPPLIER_AID:

6265817

SUPPLIER_ALT_AID:

6265817

TERRITORY:

US

TSYC Tool style code:

AK512.Z-B

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Steel shank with solid carbide core

UDX.BULLETTEXT_2:

For ScrewFit front pieces

UDX.CATFAM_CODE:

AK512

UDX.CATFAM_DESCR:

DIN 1835 A adaptor

UDX.DISCOUNTGROUP:

070

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

.6549

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

.9843

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

7.0079

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.6549

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

6.7889

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

.9843

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

A1200

WT Weight:

0,3 kg

WT Weight of item:

0,297 kg

WT_INCH Weight of item:

0,6547662 lbs

XYWD xyw plane distance:

-120 mm

XYWD_INCH xyw plane distance:

-4,7244094488189 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Manufactured By:

Walter Tool

For ScrewFit front pieces

Steel shank with solid carbide core

Steel shank with solid carbide core|For ScrewFit front pieces

DIN 1835 A adaptor by Walter Tool
