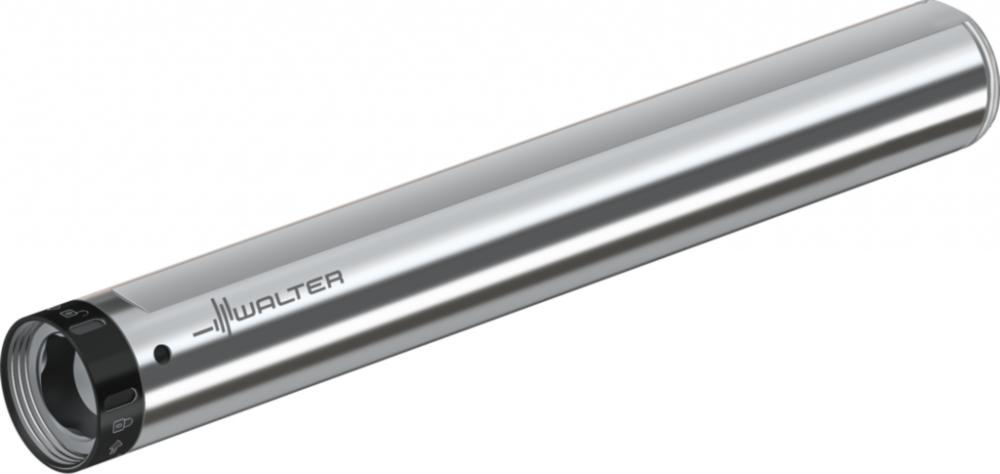

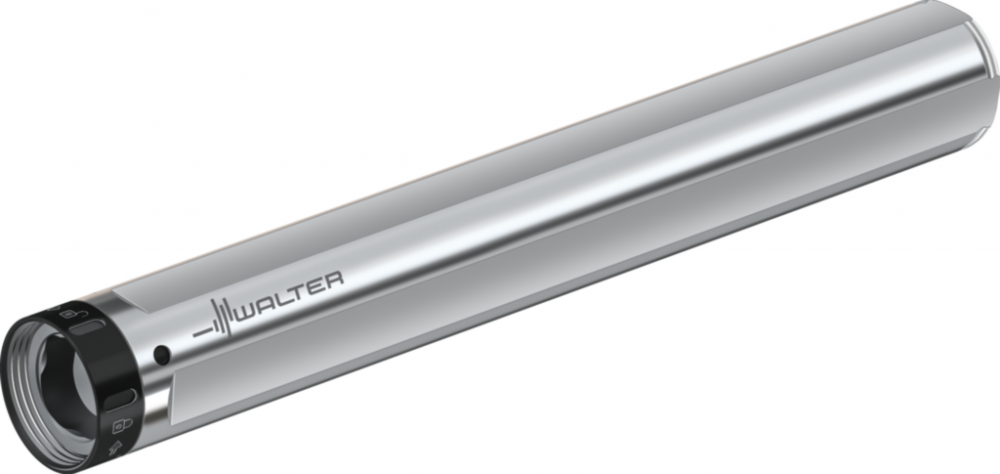

Cylindrical shank - QuadFit : 8458015 | Aronson Campbell Industrial Supply

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Boring Bar Holders & Adapters

ART_ID_TO type=accessories:

7821304,7821307

ART_ID_TO type=consists_of:

7821301

B1 Body length 1:

128 mm

B1_INCH Body length 1:

5,03937007874016 inch

B3 Protruding length:

128 mm

B3_INCH Protruding length:

5,03937007874016 inch

B4 Overall length:

294,4 mm

B4_INCH Overall length:

11,5905511811024 inch

B71 Functional length:

128 mm

B71_INCH Functional length:

5,03937007874016 inch

B72 Functional height:

0 mm

B72_INCH Functional height:

0 inch

B73 Functional width:

0 mm

B73_INCH Functional width:

0 inch

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

22

C14 Connection code unit base machine side:

1

C15 Connection code style machine side:

5

C2 Connection size code machine side:

400

C3 Connection diameter machine side:

40 mm

C3_INCH Connection diameter machine side:

1,5748031496063 inch

C4 Shank length:

160 mm

C4_INCH Shank length:

6,2992125984252 inch

C51 Connection code type workpiece side:

SGL

C52 Connection code form at workpiece side:

1

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

400

CCMS Connection code machine side:

ZYL22G4000$$$$

CCWS Connection code workpiece side:

SGL01A0400****

CNSC Coolant entry style code:

1

CNT Coolant entry thread size:

G 1/4

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

G

CUBPWS Connection unit base precision workpiece si:

A

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

400

CZCWS Connection size code workpiece side:

400

D7 Weight of item:

2,585 kg

D7_INCH Weight of item:

5,698891 lbs

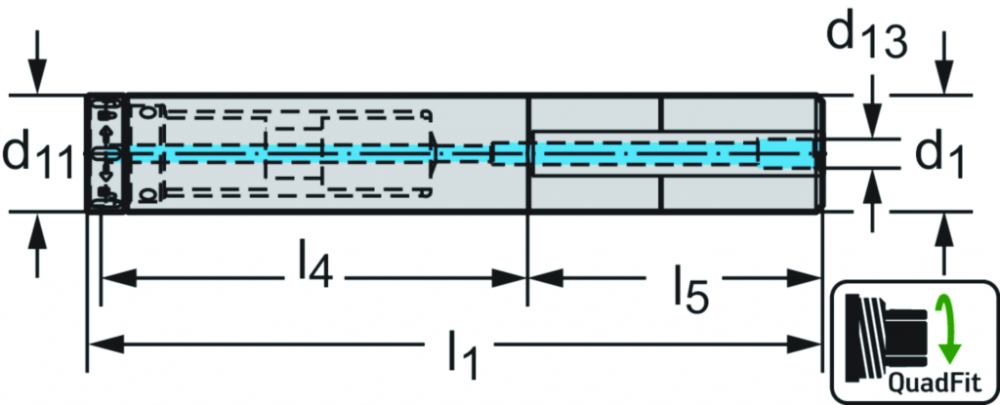

d11 Connection diameter:

Q40

d13 Pull stud, thread size:

G 1/4

d1 Connection diameter:

40 mm

Designation Tool designation:

A2100-40-Q40-288

E1 Cutting direction:

N

E2 Kappa:

0 °

EAN:

4063465503314

FMT Form type workpiece side:

INT

H Shank height:

37 mm

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

HAND Cutting direction:

N

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

H_INCH Shank height:

1,45669291338583 inch

J1 Standard:

-

J21 Article number:

A2100-40-Q40-288

J3 Company code:

W

J4 Connection code workpiece side:

SGL01A0400****

J6 Connection code machine side:

ZYL22G4000$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders Ingersoll Tool connection - XXX|A2100

l1 Overall length:

294,4 mm

l4 Maximum overhang:

128 mm

l5 Shank length:

160 mm

LF Functional length:

128 mm

LF_INCH Functional length:

5,03937007874016 inch

LPR Protruding length:

128 mm

LPR_INCH Protruding length:

5,03937007874016 inch

LS Shank length:

160 mm

LS_INCH Shank length:

6,2992125984252 inch

MANUFACTURER_AID:

A2100-40-Q40-288

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

294,4 mm

OAL_INCH Overall length:

11,5905511811024 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Cylindrical shank - QuadFit A2100 • metric • Parallel shank with clamping surface

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022001

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022001

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPNR

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

A2100-QUADFIT-INNEN

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SUPPLIER_AID:

8458015

SUPPLIER_ALT_AID:

8458015

TERRITORY:

US

TSYC Tool style code:

A2100-QUADFIT-INNEN

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

For QuadFit exchangeable heads

UDX.CATFAM_CODE:

A2100

UDX.CATFAM_DESCR:

Cylindrical shank - QuadFit

UDX.DESCR_APPLICATION:

Areas of application: Aerospace (e.g. engines), Oil & Gas (e.g. pumps) and General Mechanical Engineering;Counterboring and internal copy turning;Machining of deep holes

UDX.DESCR_BENEFITS:

Quick and precise tool change (±0.002 mm);Less non-productive time due to fast tool changes;Wide application range for all segments;Can be used universally for turning operations;Easy handling

UDX.DESCR_INTERFACE:

Only one cap nut required for clamping the exchangeable head;Quick and precise tool change (±0.002 mm);No loose spare parts (e.g. screws);Precision-ground, tetrahedral polygon attachment – can be rotated 180° for use overhead;Less non-productive time d

UDX.DESCR_TOOL:

Boring bar diameter: 40, 50 and 60mm;Dimension 8 × D;Cylindrical shank adaptor with QuadFit;Cylindrical-modular interface

UDX.DISCOUNTGROUP:

073

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

5.6999

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

4.8425

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

16.3386

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

11.9379

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

436.0940

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

5.5118

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

A2100

WF Functional width:

0 mm

WF_INCH Functional width:

0 inch

WT Weight:

2,6 kg

WT Weight of item:

2,585 kg

WT_INCH Weight of item:

5,698891 lbs

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

Manufactured By:

Walter Tool

For QuadFit exchangeable heads

Cylindrical shank - QuadFit by Walter Tool
