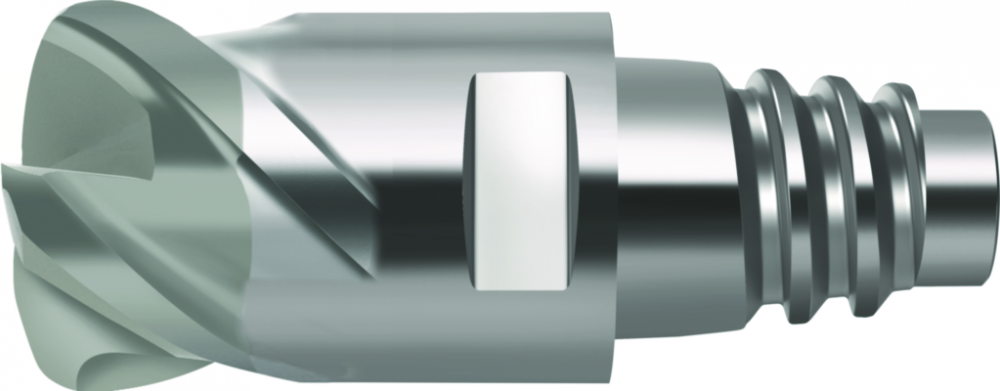

Ceramic shoulder/slot milling cutters : 7393960 | Aronson Campbell Industrial Supply

Category:

Milling

Subcategory:

Indexable

Subtype:

Solid End Mill Heads

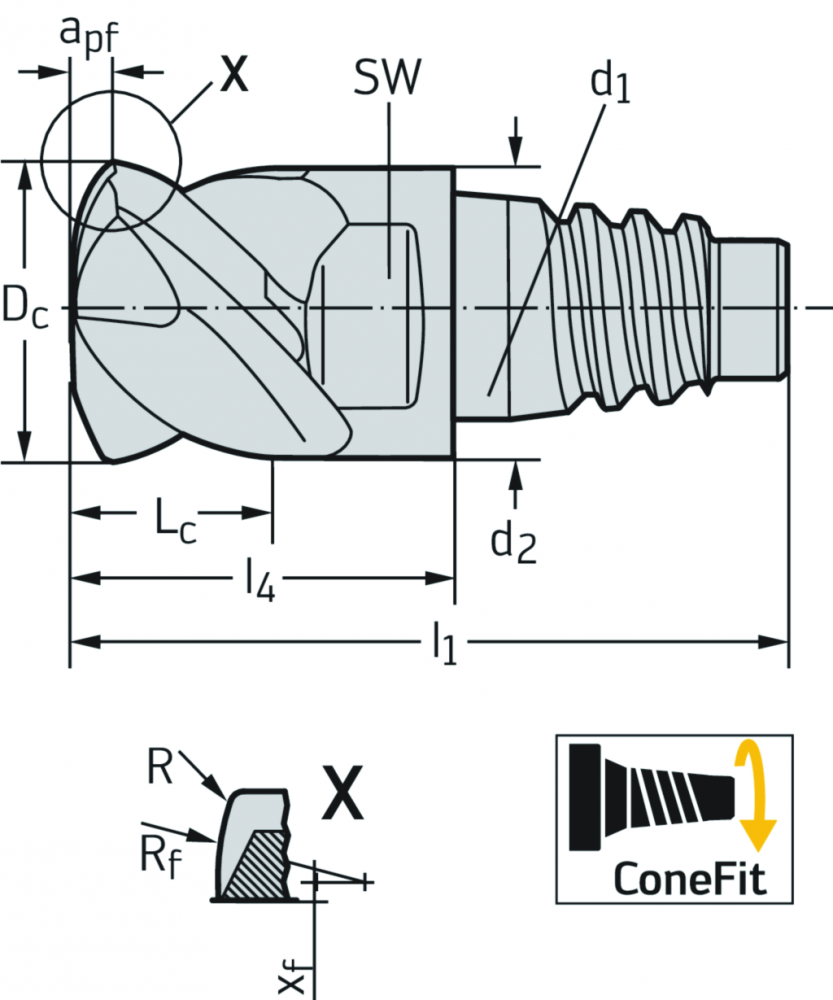

A1 Cutting diameter:

20 mm

A1_INCH Cutting diameter:

0,78740157480315 inch

A5 Neck diameter:

19,1 mm

A5_INCH Neck diameter:

0,751968503937008 inch

apf Correction for average:

0,65 mm

APMX Depth of cut maximum:

9 mm

APMX_INCH Depth of cut maximum:

0,354330708661417 inch

ART_ID_TO type=accessories:

5033122,5613709,5678647

ART_ID_TO type=others:

5634463;5634464;5634465;5634466;5634467;5634468;5835478;5835479;5930083;5930108;5930112;6248616;7171653

B2 Depth of cut maximum:

9 mm

B2_INCH Depth of cut maximum:

0,354330708661417 inch

B3 Protruding length:

28,3 mm

B3_INCH Protruding length:

1,11417322834646 inch

B4 Usable length:

28,3 mm

B4_INCH Usable length:

1,11417322834646 inch

B5 Overall length:

47,8 mm

B5_INCH Overall length:

1,88188976377953 inch

B6 Head length:

28,3 mm

B6_INCH Head length:

1,11417322834646 inch

B71 Functional length:

28,3 mm

B71_INCH Functional length:

1,11417322834646 inch

B9 Neck length:

28,3

BD Body diameter:

19,1 mm

BD_INCH Body diameter:

0,751968503937008 inch

BLD Tool style code:

1

BMC Body material code:

H

C11 Connection code type machine side:

SAC

C12 Connection code form at machine side:

4

C14 Connection code unit base machine side:

8

C15 Connection code style machine side:

5

C2 Connection size code machine side:

200

C3 Connection diameter machine side:

19,3 mm

C3_INCH Connection diameter machine side:

0,759842519685039 inch

CBMD Chip breaker manufacturers designation:

STRAI

CCMS Connection code machine side:

SAC04A0200$$$$

CNSC Coolant entry style code:

0

COATING Coating:

Keramik

CONTENT_UNIT:

PCE

CP Coolant pressure:

0 MPa

CPDF Cutting pitch differential:

0

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

A

CURRENCY:

USD

CXSC Coolant exit style code:

0

CZCMS Connection size code machine side:

200

D6 Rotational speed maximum:

80000 1/min

D7 Weight of item:

0,128 kg

D7_INCH Weight of item:

0,2821888 lbs

d1 Connection diameter:

E20

Dc Cutting edge diameter:

20 mm

DC Cutting diameter:

20 mm

DC_INCH Cutting diameter:

0,78740157480315 inch

Designation Tool designation:

MC075-20.0E4P200-WIS10

DN Neck diameter:

19,1 mm

DN_INCH Neck diameter:

0,751968503937008 inch

E2 Rake angle radial:

-8 °

E3 Rake angle axial:

-6 °

E4 Ramping angle maximum:

1,5 °

EAN:

4042446284893

F1 Cutting direction:

R

F21 Peripheral effective cutting edge count:

4

F22 Face effective cutting edge count:

4

F3 Flute helix hand:

R

F4 Flute helix angle:

35 °

FHA Flute helix angle:

35 °

FHH Flute helix hand:

R

FMT Form type machine side:

EXT

G1 Corner radius:

2 mm

G1_INCH Corner radius:

0,078740157480315 inch

G7:

2

GAMF Rake angle radial:

-8 °

GAMP Rake angle axial:

-6 °

GRADE Grade manufacturer's designation:

WIS10

H11 Standard designation of the grade, main applic:

-

H21 Coolant entry style code:

0

H22 Coolant exit style code:

0

H3 Grade manufacturer's designation:

WIS10

H4 Body material code:

H

H5 Coating:

Keramik

HAND Cutting direction:

R

IEP Interupted edge property:

0

J1 Standard:

PWZ-NORM

J21 Article number:

MC075-20.0E4P200-WIS10

J3 Company code:

W

J6 Connection code machine side:

SAC04A0200$$$$

J7 Data chip provision:

0

J8 Machining operation:

FNU

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

90 °

KEYWORD:

Brazed Cutting Tool|Milling||End milling cutters|MC075

l1 Overall length:

47,8 mm

l4 Maximum overhang:

28,3 mm

Lc Cutting edge length:

9 mm

LB Head length:

28,3 mm

LB_INCH Head length:

1,11417322834646 inch

LF Functional length:

28,3 mm

LF_INCH Functional length:

1,11417322834646 inch

LU Usable length:

28,3 mm

LU_INCH Usable length:

1,11417322834646 inch

MANUFACTURER_AID:

MC075-20.0E4P200-WIS10

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-82

OAL Overall length:

47,8 mm

OAL_INCH Overall length:

1,88188976377953 inch

OHX Protruding length:

28,3 mm

OHX_INCH Protruding length:

1,11417322834646 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

r Radius:

2 mm

Rers Equivalent radius:

2,607 mm

Rf Radius:

30 mm

RE Corner radius:

2 mm

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Ceramic shoulder/slot milling cutters MC075 • ConeFit • metric • flute helix angle 35°

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010504

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180601

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180601

REFERENCE_FEATURE_GROUP_ID_GTC:

MILFS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23241614

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

MC075-E-P-R

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RE_INCH Corner radius:

0,078740157480315 inch

RHO Rho:

0 °

RMPX Ramping angle maximum:

1,5 °

RPMX Rotational speed maximum:

80000 1/min

SUPPLIER_AID:

7393960

SUPPLIER_ALT_AID:

7393960

SW Wrench size:

16 mm

TERRITORY:

US

TSYC Tool style code:

MC075-E-P-R

UDX.APPAREA:

Milling

UDX.BRAND:

Walter Prototyp

UDX.CATFAM_CODE:

MC075

UDX.CATFAM_DESCR:

Ceramic shoulder/slot milling cutters

UDX.DISCOUNTGROUP:

MS5

UDX.ITEMTYPE:

Brazed Cutting Tool

UDX.NET_WEIGHT:

.2822

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.3780

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.2283

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.2844

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

6.1298

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.3780

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

MC075

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

No application

UDX.RANKING_ISO_M:

No application

UDX.RANKING_ISO_N:

No application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

No application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

good

ULDR Usable length diameter ratio:

0,925

WT Weight of item:

0,128 kg

WT_INCH Weight of item:

0,2821888 lbs

xf Offset radius:

2,2 mm

XYWD xyw plane distance:

-28,3 mm

XYWD_INCH xyw plane distance:

-1,11417322834646 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

4

ZEFF Face effective cutting edge count:

4

ZEFP Peripheral effective cutting edge count:

4

Manufactured By:

Walter Tool

Ceramic shoulder/slot milling cutters by Walter Tool
