CAT-V adaptor – Vibration-damped by Walter Tool
$
6,130
21
/ 1
- Part Number: 7972448
- UPC:
- Availability: Nothing
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

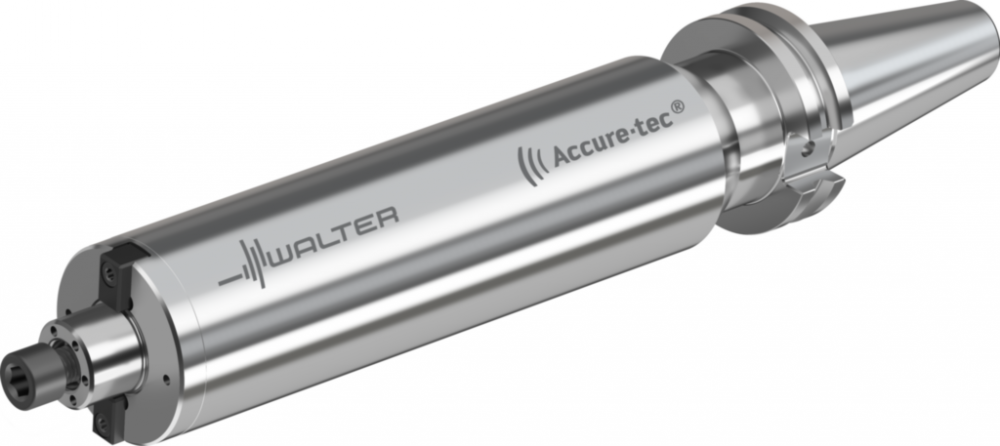

CAT-V adaptor – Vibration-damped AC001.K40-B19-191
CAT-V adaptor – Vibration-damped AC001.K • inch • For milling tools with parallel bore according to DIN 138 • With preset vibration damping • d1=40 • d11=3/4
CAT-V adaptor – Vibration-damped AC001.K • inch • For milling tools with parallel bore according to DIN 138 • With preset vibration damping • d1=40 • d11=3/4
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Milling Holders
A1 Body diameter:
44,45 mm
A1_INCH Body diameter:
1,75 inch
A4 Flange diameter:
63,5 mm
A4_INCH Flange diameter:
2,5 inch
B1 Body length 1:
171,45 mm
B1_INCH Body length 1:
6,75 inch
B3 Protruding length:
190,5 mm
B3_INCH Protruding length:
7,5 inch
B4 Overall length:
276,352 mm
B4_INCH Overall length:
10,88 inch
B71 Functional length:
190,5 mm
B71_INCH Functional length:
7,5 inch
BBD Balanced By Design:
0
BD Body diameter:
44,45 mm
BD_INCH Body diameter:
1,75 inch
C11 Connection code type machine side:
SKG
C12 Connection code form at machine side:
37
C13 Connection thread nominal size machine side:
5/8"-11
C14 Connection code unit base machine side:
9
C15 Connection code style machine side:
5
C2 Connection size code machine side:
400
C3 Connection diameter machine side:
19,05 mm
C3_INCH Connection diameter machine side:
0,75 inch
C4 Shank length:
17,526 mm
C4_INCH Shank length:
0,69 inch
C51 Connection code type workpiece side:
FDA
C52 Connection code form at workpiece side:
12
C54 Connection code unit base workpiece side:
3
C55 Connection code style workpiece side:
0
C6 Connection size code workpiece side:
750
C71 Connection diameter min:
19,05 mm
C71_INCH Connection diameter min:
0,75 inch
C81 Clamping length maximum:
17,526 mm
C81_INCH Clamping length maximum:
0,69 inch
CCFMS Connection code form at machine side:
37
CCFWS Connection code form at workpiece side:
12
CCMS Connection code machine side:
SKG37C0400$$$$
CCTMS Connection code type machine side:
SKG
CCTWS Connection code type workpiece side:
FDA
CCWS Connection code workpiece side:
FDA22R7500****
CNSC Coolant entry style code:
7
CONTENT_UNIT:
PCE
CUB Connection unit basis:
N
CUBPMS Connection unit base precision machine side:
C
CUBPWS Connection unit base precision workpiece si:
R
CURRENCY:
USD
CXSC Coolant exit style code:
1
CZCMS Connection size code machine side:
400
CZCWS Connection size code workpiece side:
750
D6 Rotational speed maximum:
8000 1/min
D7 Weight of item:
3,1 kg
D7_INCH Weight of item:
6,83426 lbs
d<sub>11</sub> Connection size code:
0.750
d<sub>13</sub> Pull stud, thread size:
5
d<sub>1</sub> Connection size code:
CAT40
Designation Tool designation:
AC001.K40-B19-191
E2 Kappa:
0 °
EAN:
0641177851
FMT Form type workpiece side:
EXT
G35 Mounting hole count:
8
H21 Coolant entry style code:
7
H22 Coolant exit style code:
1
J1 Standard:
ASME B5.50
J11 Standard letter to the standard number:
AD/
J21 Article number:
AC001.K40-B19-191
J3 Company code:
W
J4 Connection code workpiece side:
FDA12R7500****
J6 Connection code machine side:
SKG37C0400$$$$
J7 Data chip provision:
0
KAP Kappa:
0 °
KEYWORD:
Adaptive Item|Holding|Accure·tec®|Basic Holders steep taper shank - Milling arbor mounting|AC001
l<sub>4</sub> Functional length:
7,5 inch
LF Functional length:
190,5 mm
LF_INCH Functional length:
7,5 inch
LPR Protruding length:
190,5 mm
LPR_INCH Protruding length:
7,5 inch
LS Shank length:
17,526 mm
LSC Clamping length maximum:
17,526 mm
LSC_INCH Clamping length maximum:
0,69 inch
LS_INCH Shank length:
0,69 inch
MANUFACTURER_AID:
AC001.K40-B19-191
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-89
OAL Overall length:
276,352 mm
OAL_INCH Overall length:
10,88 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
CAT-V adaptor – Vibration-damped AC001.K • inch • For milling tools with parallel bore according to DIN 138 • With preset vibration damping
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21022002
REFERENCE_FEATURE_GROUP_ID_GTC:
ADPRS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112807
REFERENCE_FEATURE_GROUP_ID_Walter:
AC001.K
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RPMX Rotational speed maximum:
8000 1/min
SUPPLIER_AID:
7972448
SUPPLIER_ALT_AID:
7972448
TERRITORY:
US
TSYC Tool style code:
AC001.K
UDX.APPAREA:
Holding
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
For milling tools with parallel bore according to DIN 138
UDX.BULLETTEXT_2:
With preset vibration damping
UDX.CATFAM_CODE:
AC001.K
UDX.CATFAM_DESCR:
CAT-V adaptor – Vibration-damped
UDX.DESCR_APPLICATION:
Machining deep pockets;Machining complex one-piece workpieces;Long overhangs of up to 5 × D are possible;Applications in virtually all segments
UDX.DESCR_BENEFITS:
High productivity and surface quality – with long service life for the tool and spindle;Vibration damping preset at the factory, ready for immediate use;Stable process producing little noise;Reliable machining up to 5 × D;Optimum chip removal thanks to
UDX.DESCR_TOOL:
Accure·tec vibration-damped boring bar/adaptor – CAT-V;Accure·tec vibration-damped boring bar/adaptor;Patented vibration damping;For shell end milling cutters with tenon in accordance with DIN 138;Cylindrical design;High rigidity;Internal coolant suppl
UDX.DISCOUNTGROUP:
073
UDX.ITEMTYPE:
Adaptive Item
UDX.NET_WEIGHT:
6.8355
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
4.7244
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
16.3780
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
6.8355
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
380.7882
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
4.9213
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
AC001
WT Weight:
6,834 lbs
WT Weight of item:
3,1 kg
WT_INCH Weight of item:
6,83426 lbs
XYWD xyw plane distance:
-190,5 mm
XYWD_INCH xyw plane distance:
-7,5 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Manufactured By:
Walter Tool
