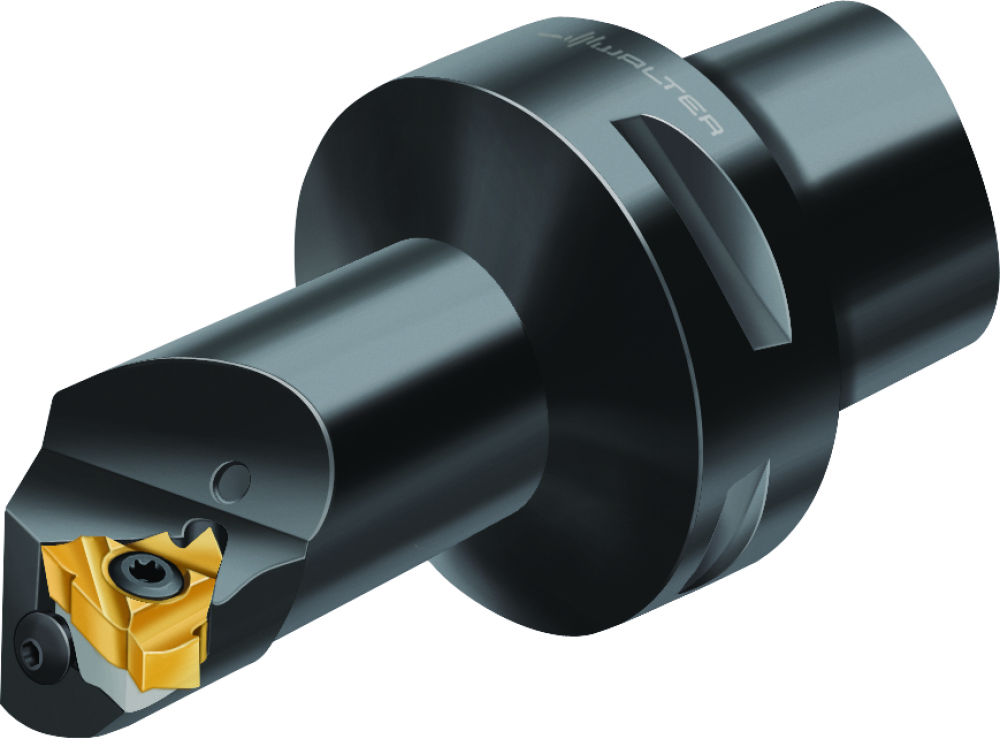

Boring bar – Internal thread : 5011626 | Aronson Campbell Industrial Supply

Category:

Turning

Subcategory:

External Turning

Subtype:

External Threading Toolholders

A2 Functional width:

22 mm

A2_INCH Functional width:

0,866141732283465 inch

A3 Functional length:

90 mm

A3_INCH Functional length:

3,54330708661417 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

A6 Minimum bore diameter:

40 mm

A6_INCH Minimum bore diameter:

1,5748031496063 inch

A9 Body diameter reduced:

32 mm

ALP Clearance angle axial:

10 °

ART_ID_TO type=consists_of:

5006508,5010082,5018871,6039277,6050513

ART_ID_TO type=others:

5010085, ;5010089, ;5010093, ;5010097, ;5010101, ;5010105, ;5010109, ;5012772, ;5012773, ;5012778, ;5012784, ;5012790, ;5012791, ;5012796, ;5012797, ;5012802, ;5012803, ;5012808, ;5012809, ;5012814, ;5012815, ;5012820, ;5012821, ;5012826, ;5012827, ;501283

B3 Protruding length:

114 mm

B3_INCH Protruding length:

4,48818897637795 inch

B4 Usable length:

69 mm

B5 Overall length:

114 mm

B5_INCH Overall length:

4,48818897637795 inch

BD Body diameter:

32 mm

BD_INCH Body diameter:

1,25984251968504 inch

BLD Tool style code:

11

BMC Body material code:

S

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

400

CCMS Connection code machine side:

CCS01C0400$$$$

CICT Cutting item count:

1

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CP Coolant pressure:

80 MPa

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

400

D7 Weight of item:

0,64 kg

D7_INCH Weight of item:

1,410944 lbs

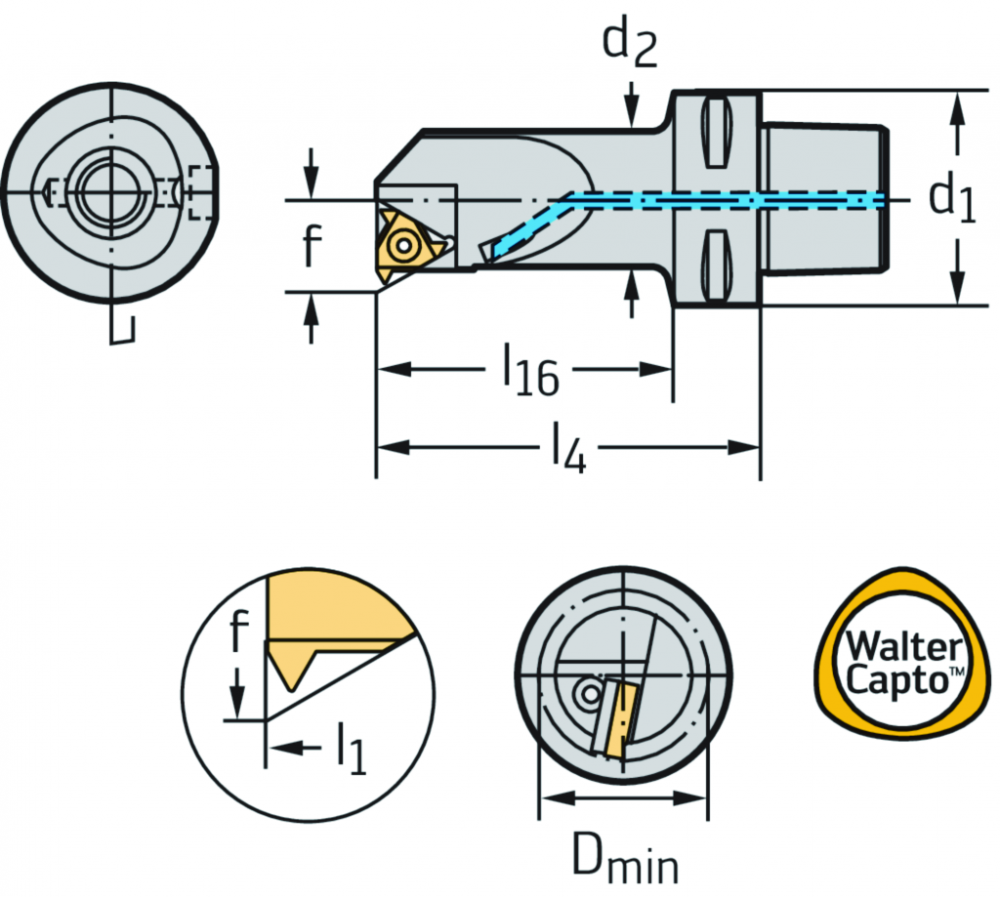

d1 Connection size code:

C4

d2 Body diameter:

32 mm

Dmin Minimum diameter:

40 mm

Designation Tool designation:

C4-NTS-SIR22090-16

DHD Drop head design:

0

DMIN Minimum bore diameter:

40 mm

DMIN_INCH Minimum bore diameter:

1,5748031496063 inch

E1 Tool cutting edge angle:

90 °

E2 Tool cutting edge angle type code:

S

E3 Insert included angle:

60 °

EAN:

0357275966

f Functional width:

22 mm

F1 Cutting direction:

R

F2 Tool holder shape code:

G

F3 Drop head design:

0

F5 Clamping type code:

S

FMT Form type machine side:

EXT

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

HAND Cutting direction:

R

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

IIC Insert interface code:

WR$$NTSI16**3R*****

Insert size Insert size:

16

J1 Standard:

ISO26623-1

J21 Article number:

C4-NTS-SIR22090-16

J3 Company code:

W

J41 Insert interface code:

WR$$NTSI16**3R*****

J42 Master insert identification:

NTS-I-16

J6 Connection code machine side:

CCS01C0400$$$$

J7 Data chip provision:

0

J8 Machining operation:

DGI

KAP Kappa:

0 °

KEYWORD:

Tool Item|Threading|Walter NTS|Tool heads for threading, internal|D74NS

l16 Usable length:

69 mm

l4 Functional length:

90 mm

LF Functional length:

90 mm

LF_INCH Functional length:

3,54330708661417 inch

LPR Protruding length:

114 mm

LPR_INCH Protruding length:

4,48818897637795 inch

LS Shank length:

24 mm

LS_INCH Shank length:

0,94488188976378 inch

LU Usable length:

69 mm

LU_INCH Usable length:

2,71653543307087 inch

MANUFACTURER_AID:

C4-NTS-SIR22090-16

MIID Master insert identification:

NTS-I-16

NOI Insert index count:

400

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

114 mm

OAL_INCH Overall length:

4,48818897637795 inch

ORDER_UNIT:

PCE

PHI Phi:

-90 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Boring bar – Internal thread C...-NTS-SI • Standard position • Walter Capto^TM • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181011

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181011

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNTHII

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

NTS-SI-16-CAPTO

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

1,5 °

SC Insert shape code:

T

SSC Insert seat size code:

16

SUPPLIER_AID:

5011626

SUPPLIER_ALT_AID:

5011626

TERRITORY:

US

THDH Thread hand:

RH

TSYC Tool style code:

NTS-SI-16-CAPTO

Type Possible indexable inserts:

NTS-I . -16 ..

UDX.APPAREA:

Threading

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Walter Capto^TM

UDX.BULLETTEXT_2:

Standard position

UDX.CATFAM_CODE:

C...-NTS-SI

UDX.CATFAM_DESCR:

Boring bar – Internal thread

UDX.DESCR_APPLICATION:

Internal thread

UDX.DESCR_BENEFITS:

Excellent thread quality thanks to precision-ground indexable insert

UDX.DESCR_TOOL:

Standard inclination angle 1.5°;C . . . -NTS-SI Walter Capto^TM internal thread boring bar

UDX.DISCOUNTGROUP:

065

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

1.4112

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.9685

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

5.3937

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

1.4443

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

20.9006

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.9685

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D74NS

WF Functional width:

22 mm

WF_INCH Functional width:

0,866141732283465 inch

WT Weight of item:

0,64 kg

WT_INCH Weight of item:

1,410944 lbs

XYWD xyw plane distance:

-90 mm

XYWD_INCH xyw plane distance:

-3,54330708661417 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

-22 mm

YZWD_INCH yzw plane distance:

-0,866141732283465 inch

Manufactured By:

Walter Tool

Standard position

Walter Capto^TM

Walter Capto^TM|Standard position

Boring bar – Internal thread by Walter Tool
