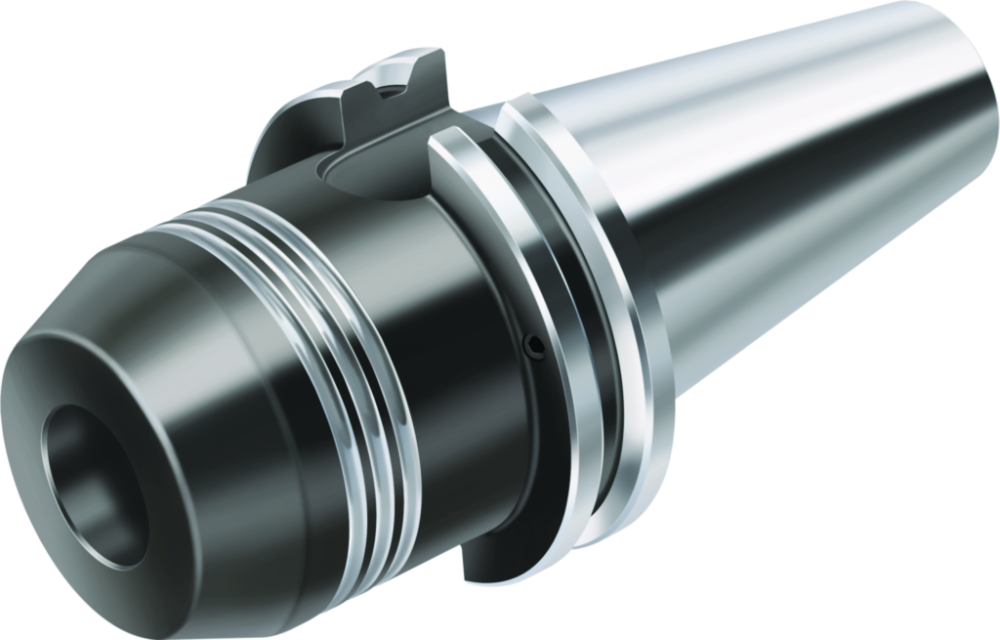

ASME B5.50 hydraulic expansion chuck : 6852047 | Aronson Campbell Industrial Supply

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Chucks

A1 Body diameter:

38 mm

A1_INCH Body diameter:

1,49606299212598 inch

A2 Body diameter 2:

49,25 mm

A2_INCH Body diameter 2:

1,93897637795276 inch

A4 Flange diameter:

63,5 mm

A4_INCH Flange diameter:

2,5 inch

ART_ID_TO type=accessories:

6358340,6358341,6358343,6358344,6358345,6358346,6358347,6358348,6358349,6358360,6358361,6358362,6358363,6358364,6358365,6358366,6358368,6358369,6358410,6358412,6358413,6358414,6358415

B1 Body length 1:

13,9 mm

B1_INCH Body length 1:

0,547244094488189 inch

B2 Length 2:

45,45 mm

B2_INCH Length 2:

1,78937007874016 inch

B3 Protruding length:

64,5 mm

B3_INCH Protruding length:

2,53937007874016 inch

B4 Overall length:

132,75 mm

B4_INCH Overall length:

5,22637795275591 inch

B71 Functional length:

13,5 mm

B71_INCH Functional length:

0,531496062992126 inch

BBD Balanced By Design:

0

BD Body diameter:

38 mm

BD_INCH Body diameter:

1,49606299212598 inch

BMC Body material code:

S

C11 Connection code type machine side:

SKG

C12 Connection code form at machine side:

31

C13 Connection thread nominal size machine side:

5/8"-11

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

400

C3 Connection diameter machine side:

20 mm

C3_INCH Connection diameter machine side:

0,78740157480315 inch

C4 Shank length:

68,4 mm

C4_INCH Shank length:

2,69291338582677 inch

C51 Connection code type workpiece side:

ZYL

C52 Connection code form at workpiece side:

13

C54 Connection code unit base workpiece side:

1

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

200

C71 Connection diameter min:

20 mm

C71_INCH Connection diameter min:

0,78740157480315 inch

C81 Clamping length maximum:

51 mm

C81_INCH Clamping length maximum:

2,00787401574803 inch

C82 Clamping length minimum:

41 mm

C82_INCH Clamping length minimum:

1,61417322834646 inch

CCFMS Connection code form at machine side:

31

CCFWS Connection code form at workpiece side:

13

CCMS Connection code machine side:

SKG31C0400$$$$

CCTMS Connection code type machine side:

SKG

CCTWS Connection code type workpiece side:

ZYL

CCWS Connection code workpiece side:

ZYL20R7874****

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

M

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

G

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

400

CZCWS Connection size code workpiece side:

200

D6 Rotational speed maximum:

12000 1/min

D7 Weight of item:

1,34 kg

D7_INCH Weight of item:

2,954164 lbs

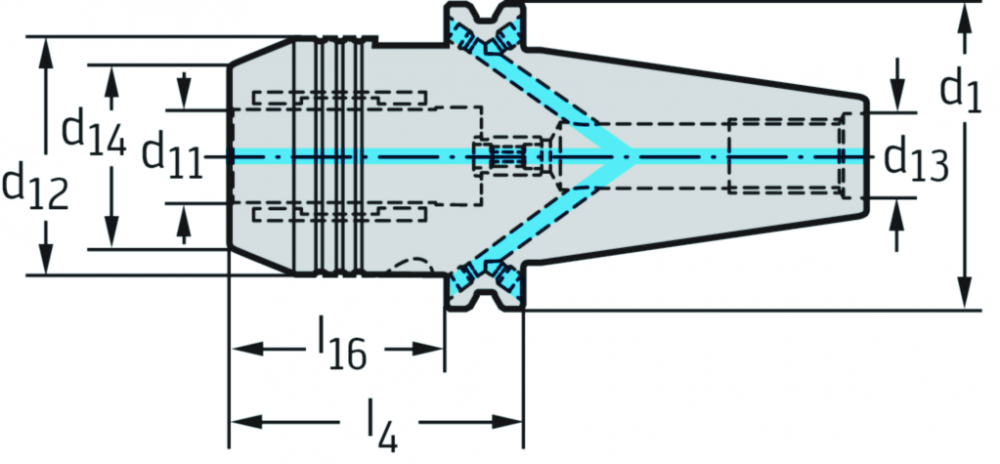

d11 Connection size code:

20

d12 Body diameter:

49,3 mm

d13 Pull stud, thread size:

5

d14 Body diameter:

38 mm

d1 Connection size code:

CAT40

Designation Tool designation:

AK182.CAT40.065.20

E2 Kappa:

0 °

EAN:

0800843851

FMT Form type workpiece side:

INT

G35 Mounting hole count:

1

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

J1 Standard:

ASME B5.50

J11 Standard letter to the standard number:

AD

J21 Article number:

AK182.CAT40.065.20

J3 Company code:

W

J4 Connection code workpiece side:

ZYL13G2000****

J6 Connection code machine side:

SKG31C0400$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders steep taper shank - XXX|A1200

l16 Functional length:

45,5 mm

l17 Clamping diameter depth:

51 mm

l17min Min. clamping diameter depth:

41 mm

l4 Functional length:

64,5 mm

LF Functional length:

13,5 mm

LF_INCH Functional length:

0,531496062992126 inch

LPR Protruding length:

64,5 mm

LPR_INCH Protruding length:

2,53937007874016 inch

LS Shank length:

68,4 mm

LSC Clamping length maximum:

51 mm

LSC_INCH Clamping length maximum:

2,00787401574803 inch

LS_INCH Shank length:

2,69291338582677 inch

MANUFACTURER_AID:

AK182.CAT40.065.20

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

132,75 mm

OAL_INCH Overall length:

5,22637795275591 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

ASME B5.50 hydraulic expansion chuck AK182.CAT • metric • For tools with shank in accordance with DIN 1835 Form A

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022002

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

AK182-K

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

12000 1/min

SUPPLIER_AID:

6852047

SUPPLIER_ALT_AID:

6852047

TERRITORY:

US

TSYC Tool style code:

AK182-K

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

For tools with shank in accordance with DIN 1835 Form A

UDX.CATFAM_CODE:

AK182.CAT

UDX.CATFAM_DESCR:

ASME B5.50 hydraulic expansion chuck

UDX.DISCOUNTGROUP:

076

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

2.9547

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.7559

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

5.3150

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

2.9768

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

40.3672

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.7559

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

A1200

WT Weight:

1,34 kg

WT Weight of item:

1,34 kg

WT_INCH Weight of item:

2,954164 lbs

XYWD xyw plane distance:

-64,5 mm

XYWD_INCH xyw plane distance:

-2,53937007874016 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Manufactured By:

Walter Tool

For tools with shank in accordance with DIN 1835 Form A

ASME B5.50 hydraulic expansion chuck by Walter Tool
