45° turning tools – Rigid clamping by Walter Tool
Call For Price
- Part Number: 5674750
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

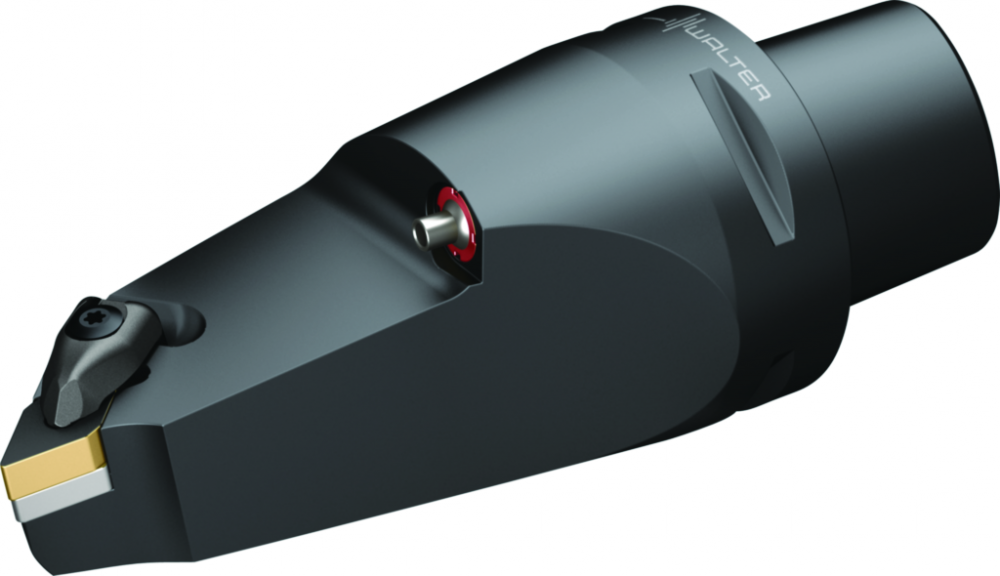

45° turning tools – Rigid clamping C8-DDMNL-00160-15
45° turning tools – Rigid clamping C...-DDMN • Walter Turn • metric • Walter CaptoTM ISO 26623 • ?=93° • Left • C8 • rhombic insert • DN .. 1506 ..
45° turning tools – Rigid clamping C...-DDMN • Walter Turn • metric • Walter CaptoTM ISO 26623 • ?=93° • Left • C8 • rhombic insert • DN .. 1506 ..
Specifications
Details
Category:
Turning
Subcategory:
Indexable Cutting Tools
Subtype:
Turning Toolholders
A1 Cutting edge length:
15,5 mm
A1_INCH Cutting edge length:
0,610236220472441 inch
A2 Functional width:
0,5 mm
A2_INCH Functional width:
0,0196850393700787 inch
A3 Functional length:
160 mm
A3_INCH Functional length:
6,2992125984252 inch
A4 Functional height:
0 mm
A4_INCH Functional height:
0 inch
ART_ID_TO type=accessories:
5098060,5098065,5102612,6258616,6258656
ART_ID_TO type=consists_of:
5040977,5041248,5041490,5041494,5041496,5041500,5043618,5042164
ART_ID_TO type=others:
5202105, ;5566085, ;5566087, ;5592246, ;5595810, ;5638369, ;5847172, ;6057790, ;6059564, ;6059760, ;6121044, ;6121084, ;6318230, ;6342041, ;6353301, ;6353302, ;6356453, ;6389613, ;6389794, ;6410352, ;6410440, ;6411309, ;6411321, ;6431765, ;6431766, ;661353
B3 Protruding length:
208 mm
B3_INCH Protruding length:
8,18897637795276 inch
B5 Overall length:
208 mm
B5_INCH Overall length:
8,18897637795276 inch
BLD Tool style code:
8
BMC Body material code:
S
C11 Connection code type machine side:
CCS
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
9
C15 Connection code style machine side:
5
C2 Connection size code machine side:
800
CICT Cutting item count:
1
CNSC Coolant entry style code:
1
CONTENT_UNIT:
PCE
CP Coolant pressure:
80 MPa
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
C
CURRENCY:
USD
CXSC Coolant exit style code:
3
CZCMS Connection size code machine side:
800
D7 Weight of item:
4,026 kg
D7_INCH Weight of item:
8,8757196 lbs
d<sub>1</sub> Connection size code:
C8
D<sub>min2</sub> Minimum diameter:
120 mm
Designation Tool designation:
C8-DDMNL-00160-15
DMIN Minimum bore diameter:
120 mm
DMIN_INCH Minimum bore diameter:
4,7244094488189 inch
E1 Tool cutting edge angle:
93 °
E2 Tool cutting edge angle type code:
B
E3 Insert included angle:
55 °
E4 Rake angle orthogonal:
-5 °
E5 Inclination angle:
-6 °
EAN:
0586961967
f Functional width:
1 mm
F1 Cutting direction:
L
F2 Tool holder shape code:
G
F5 Clamping type code:
D
FMTMS Form type machine side:
EXT
GAMO Rake angle orthogonal:
-5 °
H21 Coolant entry style code:
1
H22 Coolant exit style code:
3
HAND Cutting direction:
L
HF Functional height:
0 mm
HF_INCH Functional height:
0 inch
Insert seat size Insert seat size:
15
J1 Standard:
ISO26623-1
J21 Article number:
C8-DDMNL-00160-15
J22 Product designation:
147
J3 Company code:
W
J41 Insert interface code:
ISO$DN1506002******
J42 Master insert identification:
DNMG 15 06 08
J6 Connection code machine side:
CCS01C0800$$$$
J7 Data chip provision:
0
J8 Machining operation:
DFA
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
93 °
KEYWORD:
Tool Item|Turning|Walter Turn|Tool heads for turning, external|D61NK
l<sub>4</sub> Functional length:
160 mm
LAMS Inclination angle:
-6 °
LF Functional length:
160 mm
LF_INCH Functional length:
6,2992125984252 inch
LPR Protruding length:
208 mm
LPR_INCH Protruding length:
8,18897637795276 inch
MANUFACTURER_AID:
C8-DDMNL-00160-15
MIID Master insert identification:
DNMG 15 06 08
NOI Insert index count:
400
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-90
OAL Overall length:
208 mm
OAL_INCH Overall length:
8,18897637795276 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
45° turning tools – Rigid clamping C...-DDMN • Walter Turn • metric • Walter CaptoTM ISO 26623 • κ=93° • Left
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181008
REFERENCE_FEATURE_GROUP_ID_GTC:
TRNGEI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153308
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112809
REFERENCE_FEATURE_GROUP_ID_Walter:
DDMNL-CAPTO-AUSSEN
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RMPX Ramping angle maximum:
45 °
SC Insert shape code:
D
SSC Insert seat size code:
15
SUPPLIER_AID:
5674750
SUPPLIER_ALT_AID:
5674750
TERRITORY:
US
TSYCISO Tool style code:
DDMNL-CAPTO-AUSSEN
Type Possible indexable inserts:
DN .. 1506 ..
UDX.APPAREA:
Turning
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Walter CaptoTM
UDX.BULLETTEXT_2:
Toolholders for turning and milling centres
UDX.CATFAM_CODE:
C...-DDMN
UDX.CATFAM_DESCR:
45° turning tools – Rigid clamping
UDX.DESCR_APPLICATION:
Suitable for roughing and finishing applications;First choice for interrupted cuts thanks to stable insert clamping;First choice for machining short-chipping material
UDX.DESCR_BENEFITS:
Functionality is maintained even in "dirty environments", e.g. grey cast iron machining;Reinforced clamps with carbide shoe available for longer clamp tool life;The indexable insert and shim can be replaced using the same wrench
UDX.DESCR_TOOL:
Internal coolant supply on all tools;Walter CaptoTM tool with rigid clamping (D)
UDX.DISCOUNTGROUP:
065
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
8.8773
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
4.1339
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
8.5827
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
8.9457
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
146.6675
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
4.1339
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
D61NK
WF Functional width:
0,5 mm
WF_INCH Functional width:
0,0196850393700787 inch
WT Weight of item:
4,026 kg
WT_INCH Weight of item:
8,8757196 lbs
XYWD xyw plane distance:
-160 mm
XYWD_INCH xyw plane distance:
-6,2992125984252 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0,5 mm
YZWD_INCH yzw plane distance:
0,0196850393700787 inch
γ Orthogonal rake angle:
-5 °
λ<sub>s</sub> Inclination angle:
-6 °
Manufactured By:
Walter Tool
Other Details
Toolholders for turning and milling centres
Walter CaptoTM
Walter CaptoTM|Toolholders for turning and milling centres
