DNGG432EEG-AC5015S by Sumitomo
Call For Price
- Part Number: 10T5W44
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

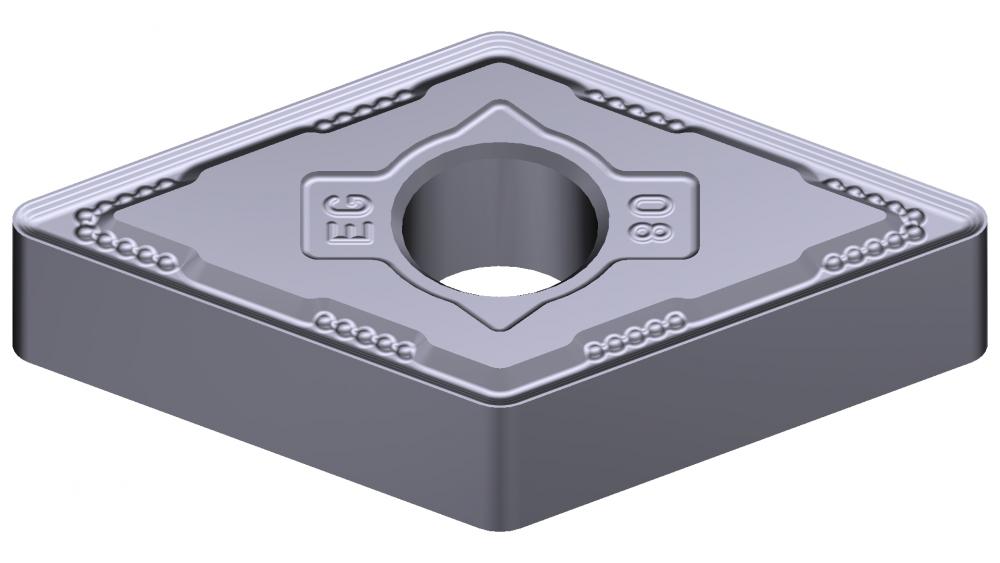

DNGG432 EEG Grade AC5015S Carbide Turning Insert
Specifications
Details
Category:
Cutting Tools
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts
Coating:
Absotech
Coating Process:
PVD
Insert Material:
Carbide
Insert Style:
DNGG
Primary Workpiece Material:
Heat Resistant Alloy
Rake Angle:
Negative
Chip Breaker:
EEG
Collection:
AC5000S
Corner Angle:
55
Country of Origin:
Japan
Cutting Edge Length [Inch]:
0.6102
Cutting Edge Length [mm]:
15.50
Hole Diameter [mm]:
0.00
Inscribed Circle Diameter [Inch]:
0.5000
Inscribed Circle Diameter [mm]:
12.70
Insert Holding Method:
Pin & Clamp
Insert Size:
432
Insert Thickness [Inch]:
0.0000
Insert Thickness [mm]:
0.00
Item Quantity:
10
Manufacturer Grade Identification:
AC5015S
Nose Radius [Inch]:
0.0315
Nose Radius [mm]:
0.80
Product Code - ANSI:
DNGG432EEG-AC5015S
Product Code - ISO:
DNGG150408N-EG
Relief Angle:
0
Secondary Workpiece Material:
Stainless Steel
Standard designation of the grade main application:
S15 S10 S20
Tolerance Class:
G
Manufactured By:
Sumitomo
