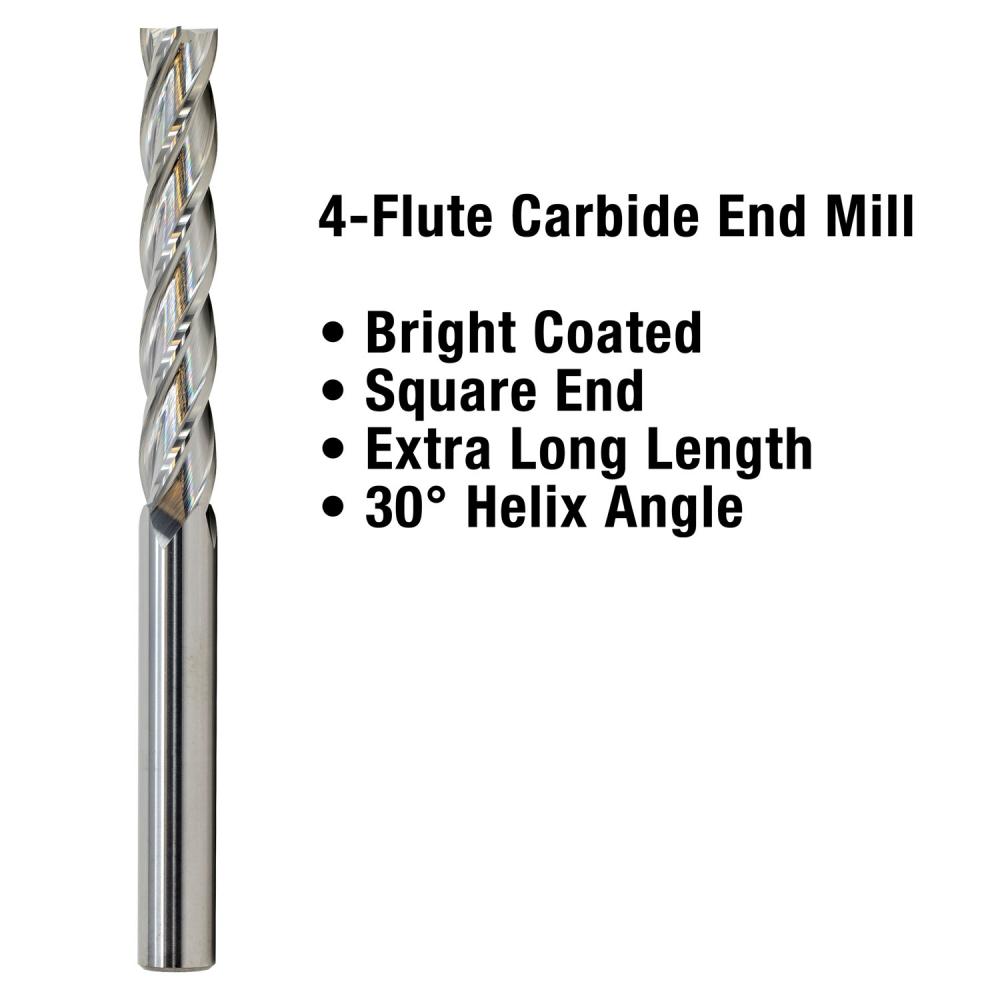

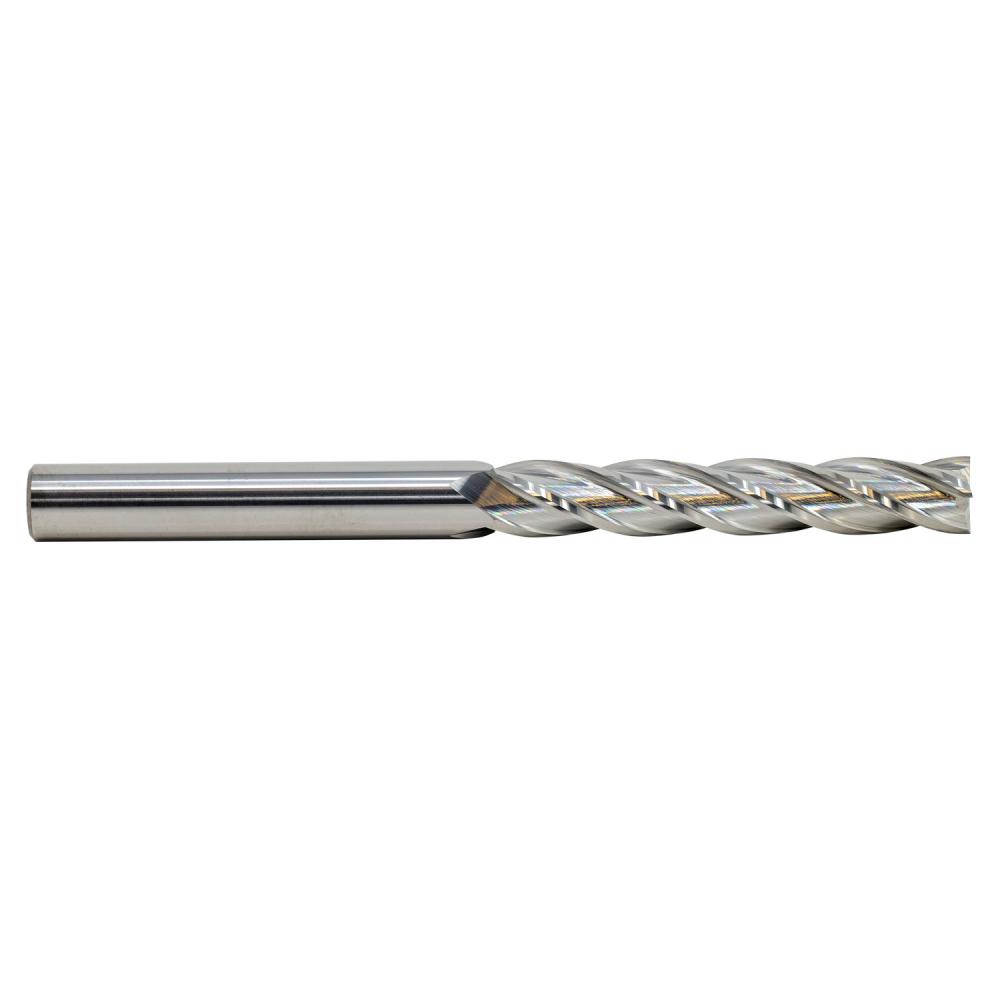

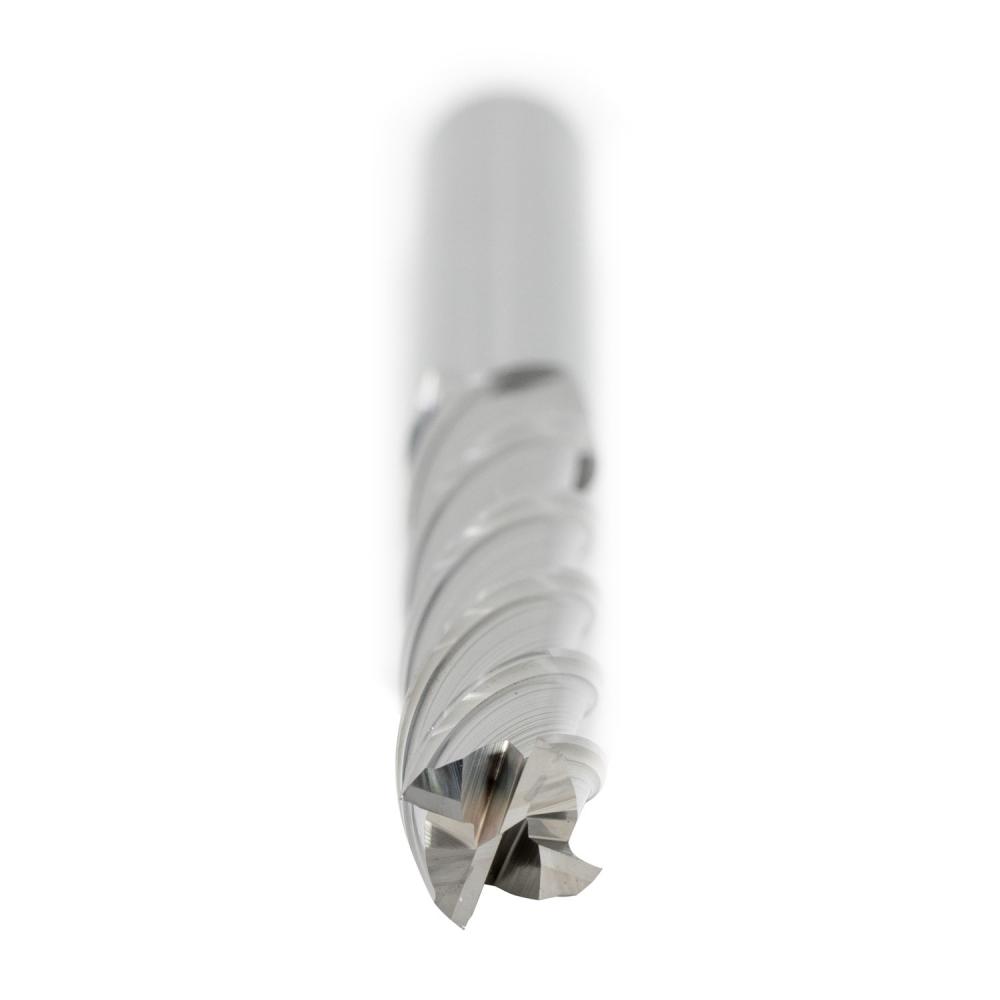

1/4" Diameter x 1/4" Shank 4-Flute Extra Long Length Blue Series Carbide End Mill

1/4" Diameter x 1/4" Shank 4-Flute Extra Long Length Blue Series Carbide End Mill by Sowa Tool

Call For Price
  • Part Number: 102454
  • UPC:
  • Availability:
    Nothing
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
• Brand: GS Tooling
• Length Type : Extra Long
• Mill Diameter (Inch): 1/4"
• Number of Flutes: 4
• Material: Solid Carbide
• Length of Cut (Inch): 1-1/2"
• Shank Diameter (Inch): 1/4"
• Finish/Coating: Bright
• Single or Double End: Single
• Center Cutting: Yes
• Overall Length (Inch): 4"
• Flute Direction: Right
• Cutting Direction: Right
• Variable Helix: No
• Helix Angle: 30
Extra Long Length End mills combine added flute and overall length for greater reach when deep slotting or milling. These end mills have the capability to mill much thicker material in a single pass, thereby eliminating the interrupted cut that may be present with regular length end mills
Specifications
Details
Category:
Milling
Subcategory:
Solid
Subtype:
Square End Mills
Brand:
GS Tooling
Center Cutting:
Yes
Cutting Direction:
Right
Finish/Coating:
Bright
Flute Direction:
Right
Helix Angle:
30
Length of Cut (Inch):
1-1/2"
Material:
Solid Carbide
Mill Diameter (Inch):
1/4"
Number of Flutes:
4
Overall Length (Inch):
4"
Shank Diameter (Inch):
1/4"
Single or Double End:
Single
Variable Helix:
No
Manufactured By:
Sowa Tool
