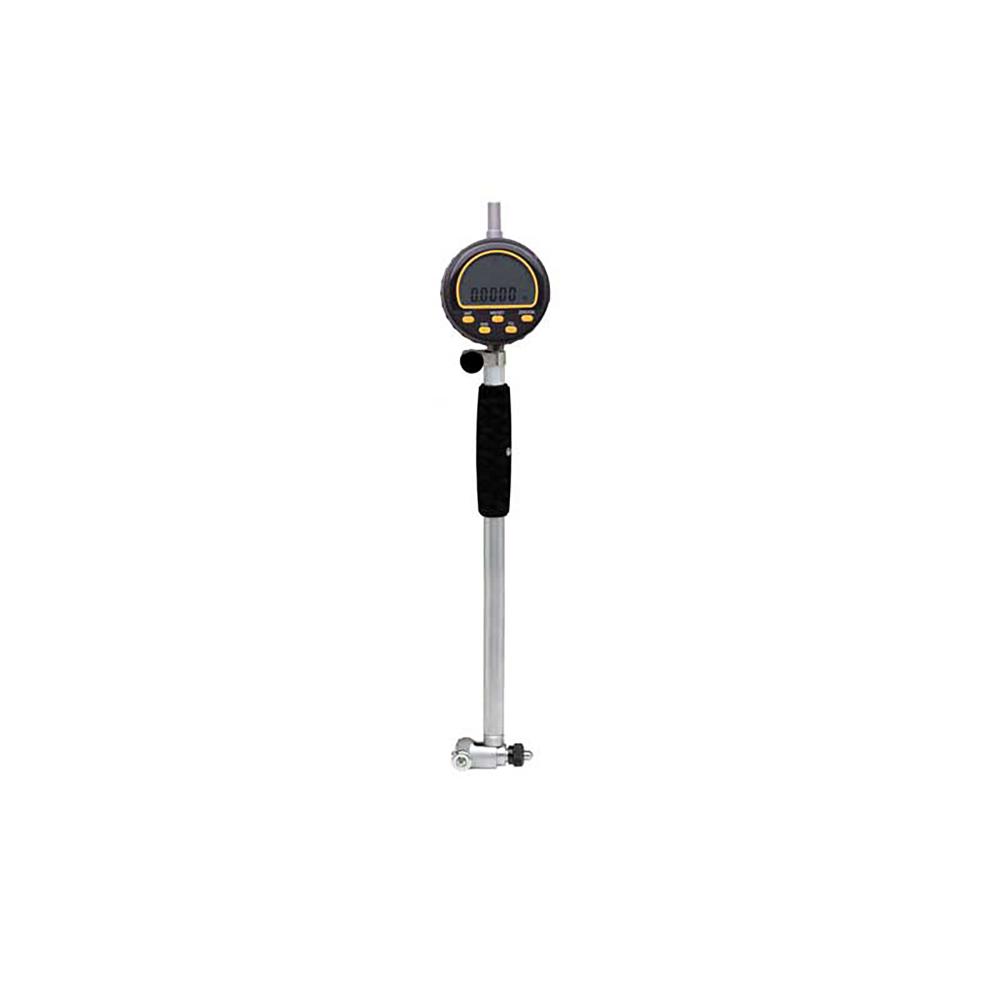

0.7" - 1.5" Digital Bore Gauge

0.7" - 1.5" Digital Bore Gauge by Sowa Tool

Call For Price
  • Part Number: 7485211
  • UPC:
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
• Brand: Asimeto
• Anvils : 10
• Spacers : 2
• Type: Bore Gauge
• Minimum Measurement (Decimal Inch): 0.7
• Gage Depth (Inch): 4"
• Maximum Measurement (Decimal Inch): 1.5
Asimeto Certified Bore Gauges measure diameters of small holes by converting the radial displacement to axial displacement of a measuring rod, which is shown on the digital indicator. Additional accessories to extend the range of our Bore Gauges are available . Furnished With: Warranty card, Instruction manual, Calibration certificate, Features:
• Resolution: 0.00005"/0.002mm
• Dynamic carbide contact point
• Has analog sweep display to determine minimum reading
• Canister and fixed anvils
Specifications
Details
Category:
Testing, Measuring and Inspection
Subcategory:
Inside Diameter Measurement Equipment
Subtype:
Electronic Bore Gages
Brand:
Asimeto
Gage Depth (Inch):
4"
Maximum Measurement (Decimal Inch):
1.5
Minimum Measurement (Decimal Inch):
0.7
Type:
Bore Gauge
Manufactured By:
Sowa Tool
