X4FL2020X2503JETI by Seco Tools
Call For Price
- Part Number: 03244926
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Jetstream Grooving Parting-off Holder

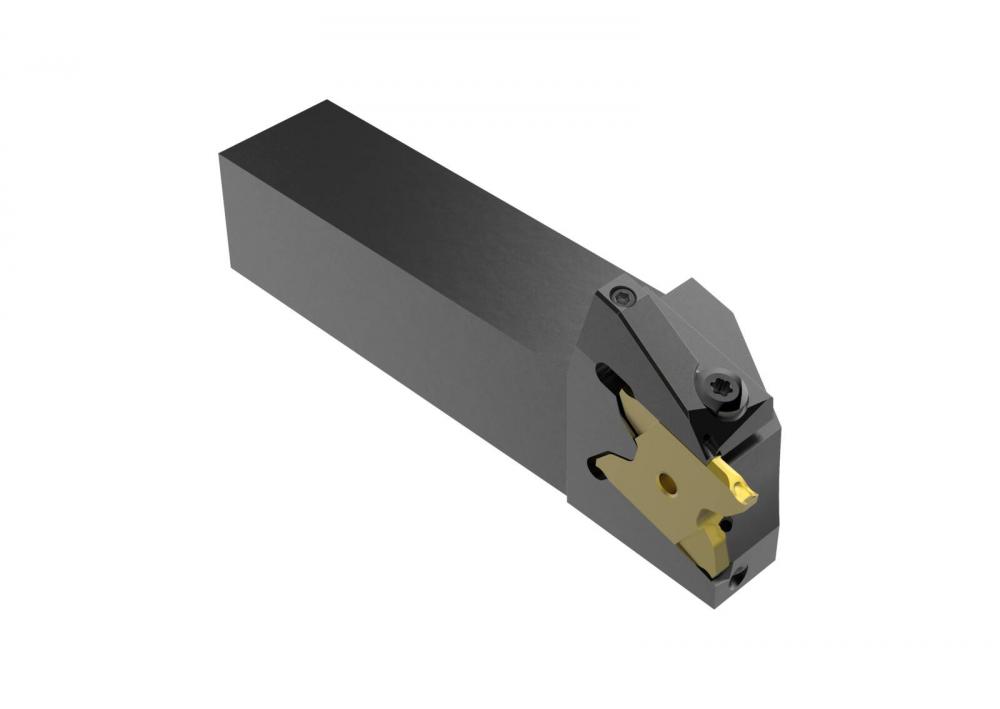

Seco X4FL2020X2503JETI Jetstream Grooving Parting-off Holder X4 External X4GK25..LN/LR/LL... Holder
Seco X4FL2020X2503JETI Jetstream Grooving Parting-off Holder X4 External X4GK25..LN/LR/LL... Holder
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Parting Off Indexable Holders

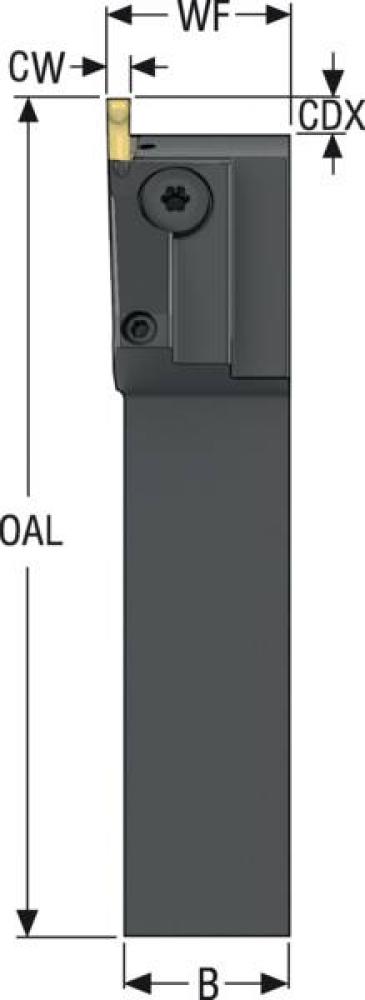

B - Shank Width (mm):
20.0
Brand Name:
Seco
CDX - Cutting Depth Max (mm):
6.50
CP - Coolant Pressure (BAR):
200.0
CSP - Coolant Supply:
Yes
CTMS - Connection Machine Side:
2020
CTWS - Connection Text Workpiece Side:
X4GK25..LN/LR/LL...
CW - Cutting Width (mm):
3.0
H - Height Tool Holder Shank (mm):
20.0
HAND - Cutting Direction:
Left
HF - Functional Height (mm):
19.95
Item Quantity:
1
Item Weight (lbs.):
0.662
KAPR - Cutting Edge Angle (Deg):
90.0
LF - Functional Length (mm):
36.0
LH - Head Length (mm):
36.0
OAL - Overall Length (mm):
100.0
Package Height (inches):
2.047
Package Length (inches):
4.921
Package Weight (lbs):
0.662
Package Width (inches):
2.047
Product Series:
X4
ShankType:
Square shank
UPC Number:
44926032000105
VER - Version (Int/Ext/Both):
External
WF - Functional Width (mm):
22.0
Manufactured By:
Seco Tools
