X4FL0632503DJET by Seco Tools
Call For Price
- Part Number: 02823296
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

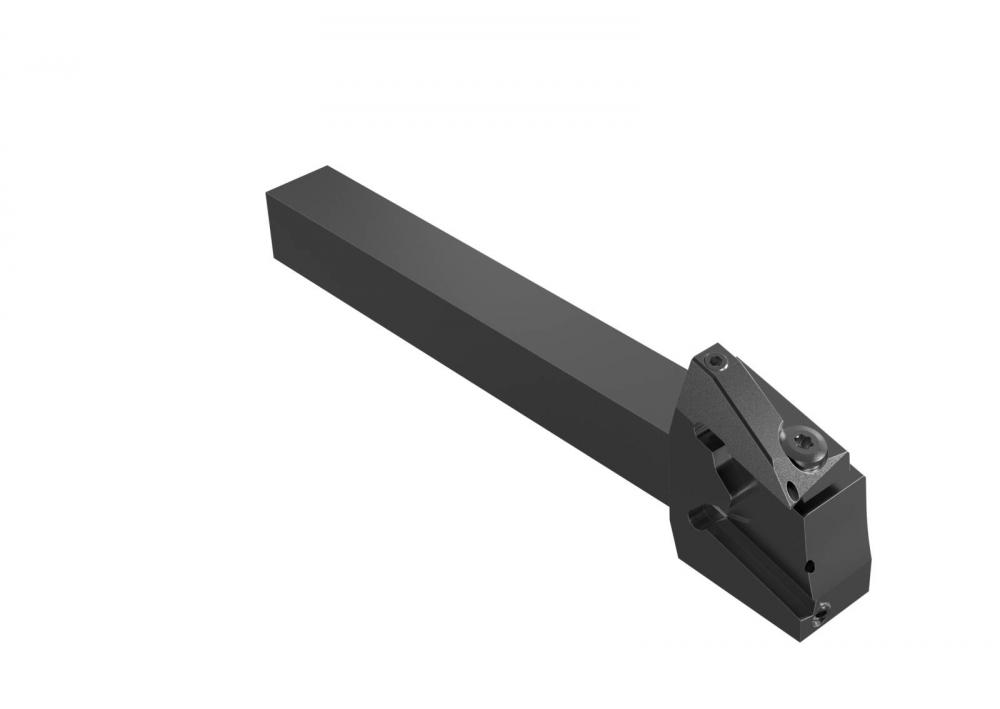

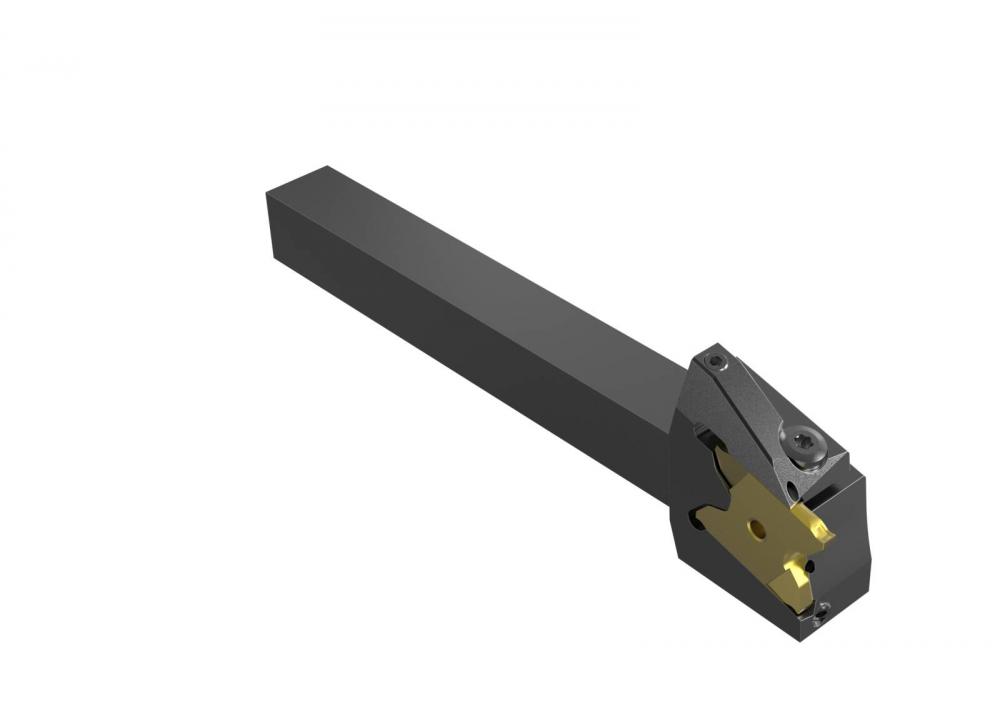

Jetstream Grooving Parting-off Holder
Seco X4FL0632503DJET Jetstream Grooving Parting-off Holder X4 External X42503L Left Hand Holder
Seco X4FL0632503DJET Jetstream Grooving Parting-off Holder X4 External X42503L Left Hand Holder
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Parting Off Indexable Holders

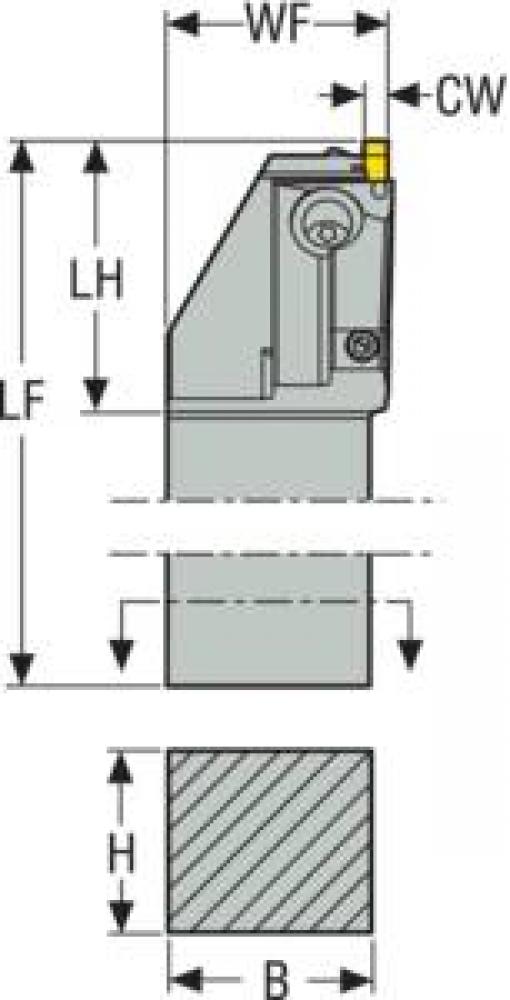

B - Shank Width (In):
0.625
Brand Name:
Seco
CDX - Cutting Depth Max (In):
0.256
CP - Coolant Pressure (PSI):
3988.6
CSP - Coolant Supply:
Yes
CTMS - Connection Machine Side:
15.88
CTWS - Connection Text Workpiece Side:
X42503L
CW - Cutting Width (In):
0.118
H - Height Tool Holder Shank (In):
0.625
HAND - Cutting Direction:
Left
HF - Functional Height (In):
0.625
Item Quantity:
1
Item Weight (lbs.):
0.732
KAPR - Cutting Edge Angle (Deg):
90.0
LF - Functional Length (In):
6.000
LH - Head Length (In):
1.441
Package Height (inches):
2.165
Package Length (inches):
6.85
Package Weight (lbs):
0.732
Package Width (inches):
2.165
Product Series:
X4
ShankType:
Square shank
UPC Number:
23296028000103
VER - Version (Int/Ext/Both):
External
WF - Functional Width (In):
0.750
Manufactured By:
Seco Tools
