E9364-L150.10-175-25JETI by Seco Tools
Call For Price
- Part Number: 03134587
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Jetstream Stationary Adapter

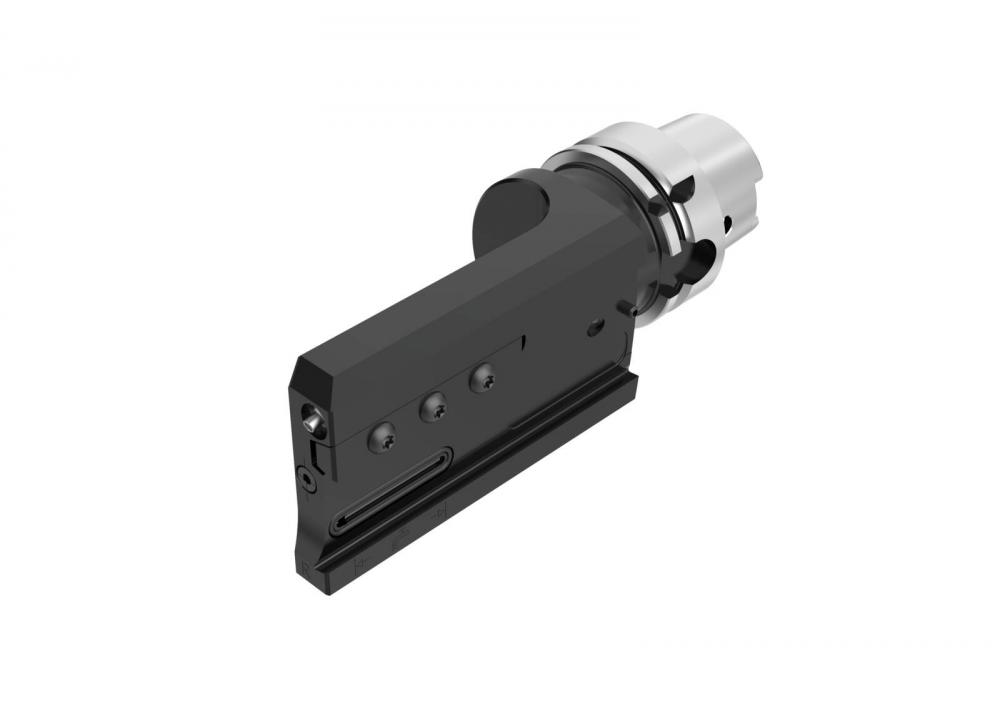

Seco E9364-L150.10-175-25JETI Jetstream Stationary Adapter Parting-off Adapters for Blade-25
Seco E9364-L150.10-175-25JETI Jetstream Stationary Adapter Parting-off Adapters for Blade-25
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Parting Off Indexable Holders
ADIF1 - Miscellaneous Text1:
Star Left
Brand Name:
Seco
CP - Coolant Pressure (BAR):
70.0
CP - Coolant Pressure (PSI):
1015.3
CTMS - Connection Machine Side:
HSK-T63
CTWS - Connection Text Workpiece Side:
Blade-25

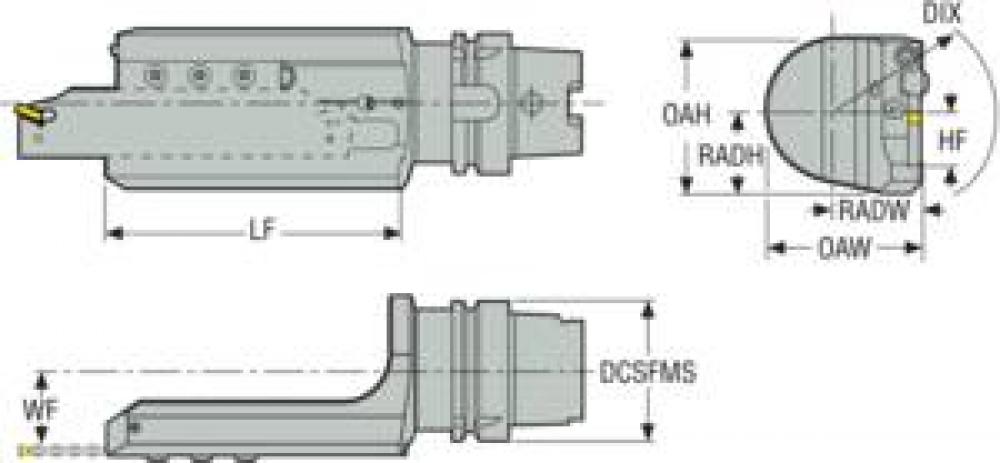

DCSFMS - Contact Surface Dia. Machine Side (In):
2.480
DCSFMS - Contact Surface Dia. Machine Side (mm):
63.0
DIX - Tool Changer Interference Dia. Max (In):
3.937
DIX - Tool Changer Interference Dia. Max (mm):
100.0
HF - Functional Height (In):
0.984
HF - Functional Height (mm):
25.0
Item Quantity:
1
Item Weight (lbs.):
5.504
LF - Functional Length (In):
6.890
LF - Functional Length (mm):
175.0
OAH - Overall Height (In):
2.717
OAH - Overall Height (mm):
69.0
OAW - Overall Width (In):
2.736
OAW - Overall Width (mm):
69.5
Package Height (inches):
4.961
Package Length (inches):
10.827
Package Weight (lbs):
5.504
Package Width (inches):
4.961
Product Series:
E9364
RADH - Radial Body Height (In):
1.457
RADH - Radial Body Height (mm):
37.0
RADW - Radial Body Width (In):
1.457
RADW - Radial Body Width (mm):
37.0
ShankType:
HSK-T
UPC Number:
34587031000102
VER - Version (Int/Ext/Both):
External
WF - Functional Width (In):
1.260
WF - Functional Width (mm):
32.0
Manufactured By:
Seco Tools
