C4-X4FL-27060-2503JET by Seco Tools
Call For Price
- Part Number: 02823290
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Jetstream Grooving Parting-off Holder

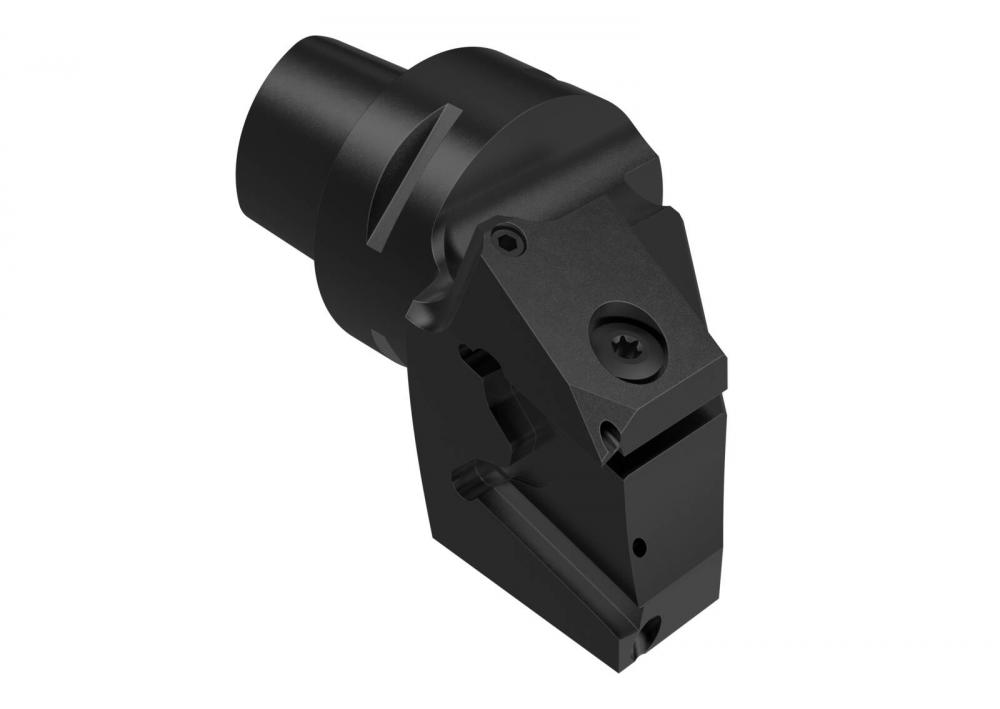

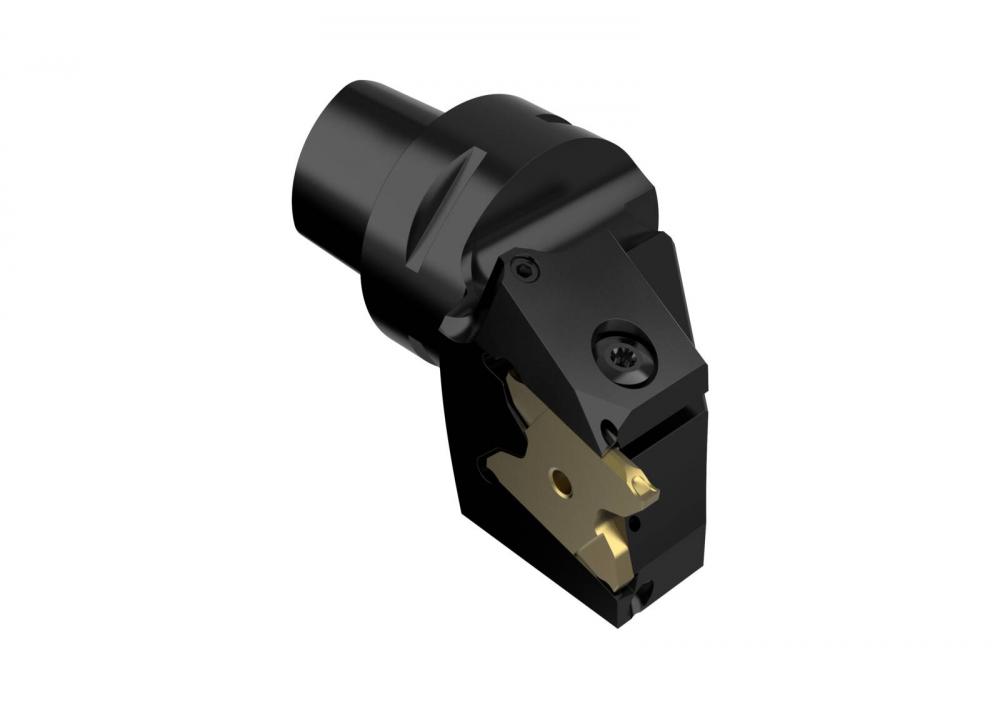

Seco C4-X4FL-27060-2503JET Jetstream Grooving Parting-off Holder Capto X4 External X42503L L.H. Holder
Seco C4-X4FL-27060-2503JET Jetstream Grooving Parting-off Holder Capto X4 External X42503L L.H. Holder
Specifications
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Parting Off Indexable Holders
Brand Name:
Seco
CDX - Cutting Depth Max (In):
0.256
CDX - Cutting Depth Max (mm):
6.50
CP - Coolant Pressure (BAR):
70.0
CP - Coolant Pressure (PSI):
1015.3
CSP - Coolant Supply:
Yes
CTMS - Connection Machine Side:
C4
CTWS - Connection Text Workpiece Side:
X42503L

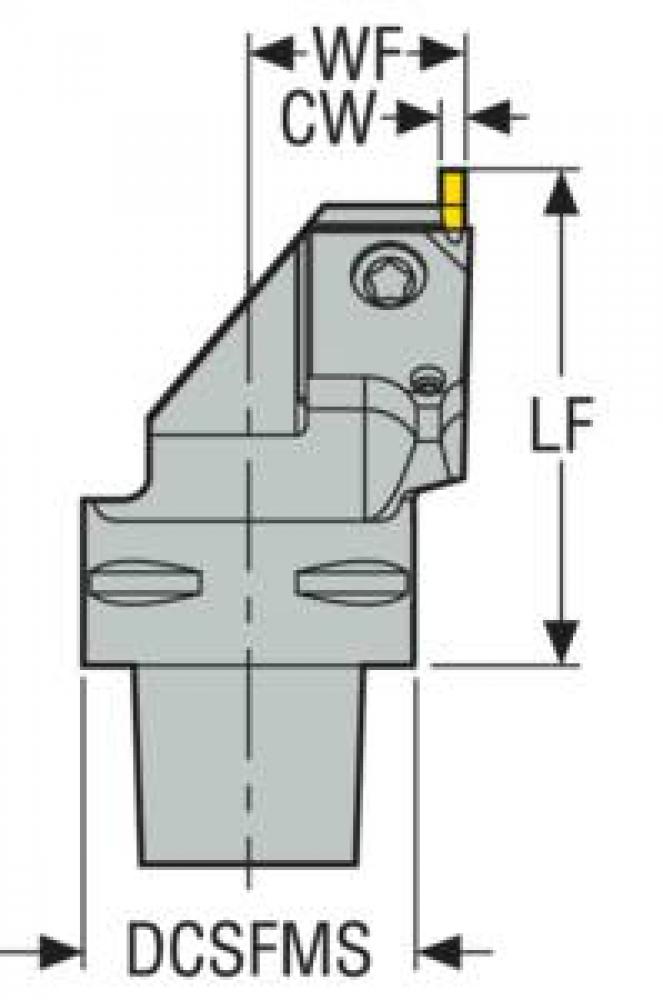

CW - Cutting Width (In):
0.118
CW - Cutting Width (mm):
3.0
DCSFMS - Contact Surface Dia. Machine Side (In):
1.575
DCSFMS - Contact Surface Dia. Machine Side (mm):
40.0
HAND - Cutting Direction:
Left
Item Quantity:
1
Item Weight (lbs.):
1.058
KAPR - Cutting Edge Angle (Deg):
90.0
LF - Functional Length (In):
2.362
LF - Functional Length (mm):
60.0
Package Height (inches):
2.441
Package Length (inches):
4.921
Package Weight (lbs):
1.058
Package Width (inches):
2.441
Product Series:
X4FL
ShankType:
Seco-Capto
UPC Number:
23290028000101
VER - Version (Int/Ext/Both):
External
WF - Functional Width (In):
1.063
WF - Functional Width (mm):
27.0
Manufactured By:
Seco Tools
