PFERD 13101251

PFERD 13101251 by PFERD

Call For Price
  • Part Number: 13101251
  • UPC:
  • Availability:
    Nothing
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

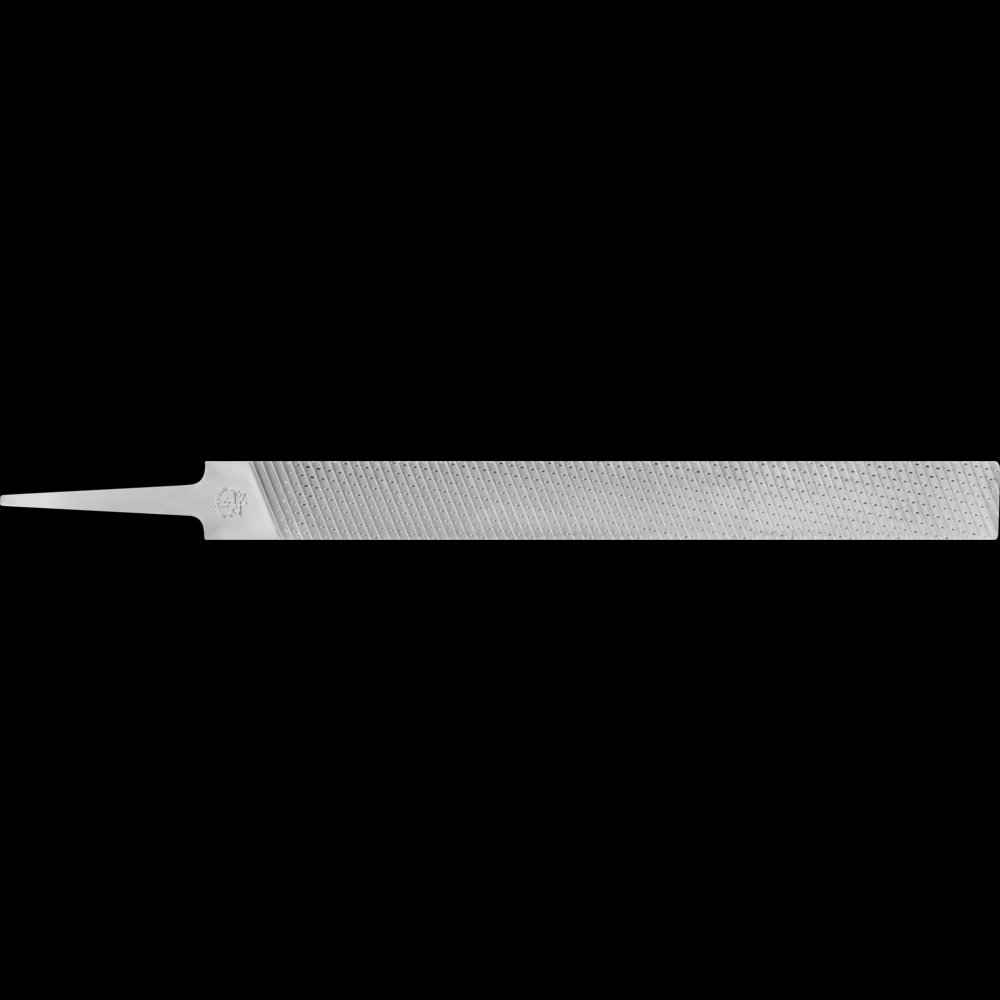

PFERD Milled Tooth Hand File 10" Coarse Cut
Milled tooth files from PFERD are particularly designed for coarse stock removal. The highly abrasive milled tooth geometry with large flutes prevents loading. Rectangular file with cuts on three sides. Tanged version. Angled cut with chip breaker on the flat sides, straight cut on the high edge. Designed for work on rectangular surfaces. Bastard cut for coarse stock removal on soft metals. Milled tooth shape with large flutes prevents teeth from loading. These milled file blades come in industrial packaging.
Specifications
Details
Category:
Abrasives
Subcategory:
Abrasive Files, Sticks and Stones
Subtype:
Abrasive Sharpening Files
Advantages:
Very aggressive.
Advantages 1:
Large flutes prevent loading.
Applications:
Chamfering
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Rounding
Applications 4:
Surface work
Applications 5:
Working on edges (chamfering, rounding)
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
DE
CUSTOMS_NUMBER:
8203109000
Cut:
1
Cut files type:
Bastard
DEPTH:
0.063
Drive types:
Manual application
EAN pcs.:
4007220369494
EAN type:
AR
Gross weight (Piece):
0.185
Gross weight (Piece) UNIT:
kg
Height:
9/32
Height (Packaging unit):
63
Height (Packaging unit) UNIT:
mm
Height UNIT:
Inch
INTERNATIONAL_PID (ean):
4007220015636
INTERNATIONAL_PID (edp):
13001
INTERNATIONAL_PID (gtin):
4007220015636
INTERNATIONAL_PID (upc):
97758130011
KEYWORD:
Milled tooth files
KEYWORD 1:
Babbitt files, tanged
KEYWORD 2:
Hand
LEADTIME:
3
LENGTH:
0.333
Length:
10
Length (Packaging unit):
333
Length (Packaging unit) UNIT:
mm
Length UNIT:
Inch
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
13101251
MANUFACTURER_TYPE_DESCR:
290 250 Z1
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Brass
Materials that can be worked 2:
Cast steel
Materials that can be worked 3:
Copper
Materials that can be worked 4:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Materials that can be worked 5:
Soft non-ferrous metal
Materials that can be worked 6:
Steel, cast steel
Materials that can be worked 7:
Steels up to 370 HV (< 38 HRC)
NO_CU_PER_OU:
1
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD Milled Tooth Hand File 10" Coarse Cut
PFERD type:
290
Product issue name web for bmecat:
Milled tooth files tanged hand
PRODUCT_ORDER:
10
QUANTITY_INTERVAL:
10
QUANTITY_MIN:
10
Recommendations for use:
For coarse stock removal, use cut 1 with 8 teeth per inch.
REFERENCE_FEATURE_GROUP_ID:
P_14558_171739
SEGMENT:
Files
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
UNSPSC 25.0901:
27111919
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758130011
VOLUME:
0.000865
Volume (Packaging unit):
865
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.185
WIDTH:
0.063
Width:
1 1/32
Width (Packaging unit):
63
Width (Packaging unit) UNIT:
mm
Width UNIT:
Inch
