KYOCERA Precision Tools TWE00890 by KYOCERA Precision Tools

Call For Price

Part Number: TWE00890
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

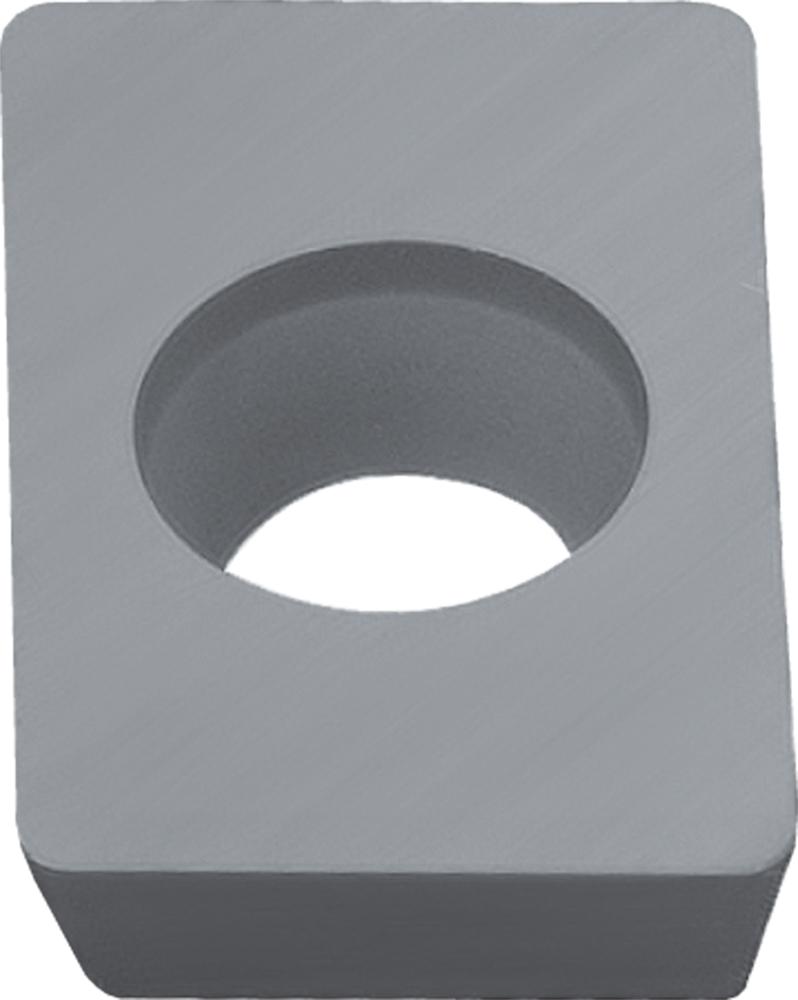

Kyocera NDCW 322FRX KW10 Grade Uncoated Carbide, Indexable Milling Insert
Kyocera NDCW 322FRX KW10 Grade Uncoated Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (N) Non-Ferrous Metals and (K) Gray Cast Iron, (S) Titanium Alloy

Specifications

Details

Category:

Grooving

Subcategory:

Indexable Cutting Tools

Subtype:

Micro Face Grooving Toolholders

Chipbreaker:

FRX

Coating Process:

Uncoated

Insert Holding Method:

Screw

Insert Shape:

Parallelogram

Material:

Carbide

Number of Cutting Edges:

Primary Workpiece Material:

(N) Non-Ferrous Materials

Rake:

Positive

Additional Manufacturer Part Number:

8805790

ANSI Part Number:

NDCW322FRXKW10

Application:

Facing|Shouldering|Slotting

California Prop 65 Item:

Yes

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Cutting Range:

Roughing

Discount Category Description:

Carbide / Cermet

ECCN:

EAR99

Feature 1:

Insert for Facing, Shouldering, Slotting

Feature 2:

Sharp Edge with 2 Cutting Edges

Feature 3:

ISO identification symbol K carbide (K10 relevant)

Feature 4:

Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys

Hand:

Right-Hand

Harmonized Code:

8209.00.0030

Insert Grade:

KW10

Insert Size:

322

ISO Part Number:

NDCW150308FRX

Material Group / Grade:

KW10

Min Order Qty:

Origin:

JPN

Pack Height:

0.394

Pack Length:

4.134

Pack Width:

1.772

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8805790

Series Description:

DMC/CEM Endmills

Series.1:

DMC

Shipping Weight:

0.1259

Tool Style:

NDCW

UNSPSC:

23291601

UNSPSC Title:

Milling Insert

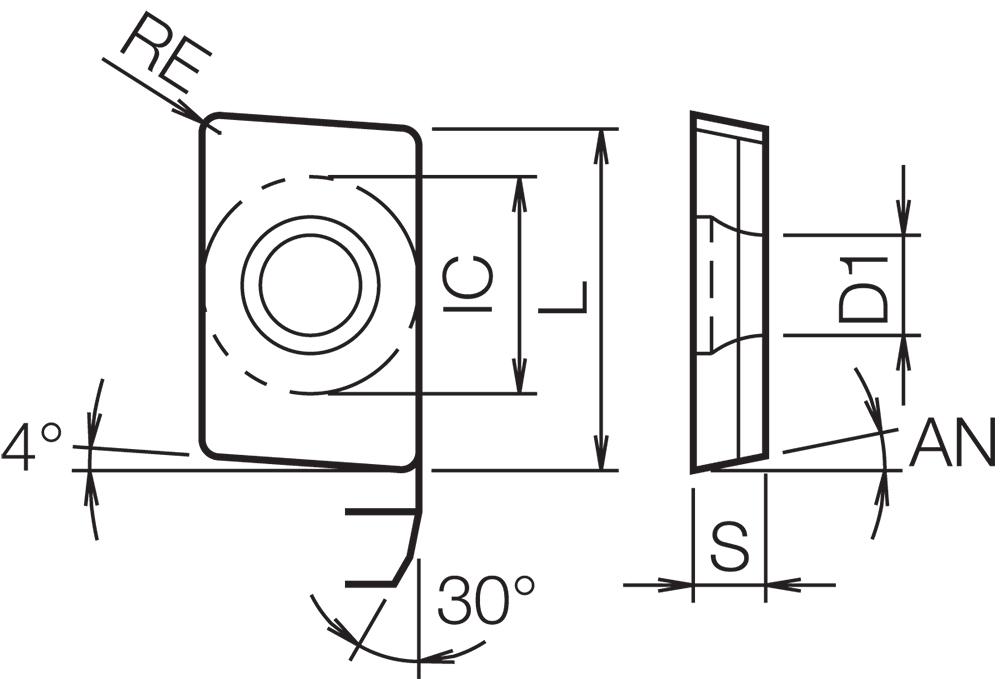

[IC] Inscribed Circle:

3/8"

[IC] Inscribed Circle (mm):

9.525

[RE] Corner Radius:

1/32"

[RE] Corner Radius (mm):

0.80

[S] Thickness:

1/8"

[S] Thickness (mm):

3.18

Manufactured By:

KYOCERA Precision Tools
