KYOCERA Precision Tools TKL05451 by KYOCERA Precision Tools

Call For Price

Part Number: TKL05451
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

Kyocera SLT 1615SKD CA0835 Grade CVD Carbide, Indexable Milling Insert
Kyocera SLT 1615SKD CA0835 Grade CVD Carbide, Rectangle, Positive Rake Angle, Neutral Milling Insert for Roughing in (P) Carbon/Alloy Steel and (M) Stainless Steel, (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Details

Category:

Grooving

Subcategory:

Indexable Cutting Tools

Subtype:

Micro Face Grooving Toolholders

Chipbreaker:

SKD

Coating Process:

CVD

Insert Holding Method:

Self-Clamp

Insert Shape:

90 Degree Rectangle

Material:

Carbide

Number of Cutting Edges:

Primary Workpiece Material:

(P) Carbon/Alloy Steel

Rake:

Positive

Additional Manufacturer Part Number:

8830699

ANSI Part Number:

SLT1615SKDCA0835

Application:

Slot Milling

California Prop 65 Item:

Yes

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Cutting Range:

Roughing

Discount Category Description:

Carbide / Cermet

ECCN:

EAR99

Feature 1:

Insert for Slot Milling

Feature 2:

Chamfered + Honed Edge with 1 Cutting Edge

Feature 3:

TiN+TiCN+Al2O3 based CVD coated carbide

Feature 4:

Application: For carbon steel, alloy steel, stainless steel, and cast iron

Feature 5:

For medium to high speed machining

Hand:

Neutral

Harmonized Code:

8209.00.0030

Insert Grade:

CA0835

Insert Size:

1615

ISO Part Number:

SLT16-15SKD

Material Group / Grade:

CA0835

Min Order Qty:

Origin:

DEU

Pack Height:

0.394

Pack Length:

4.134

Pack Width:

1.772

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8830699

Series Description:

MSTA Milling

Series.1:

MSTA

Shipping Weight:

0.0465

Tool Style:

SLT

UNSPSC:

23291601

UNSPSC Title:

Milling Insert

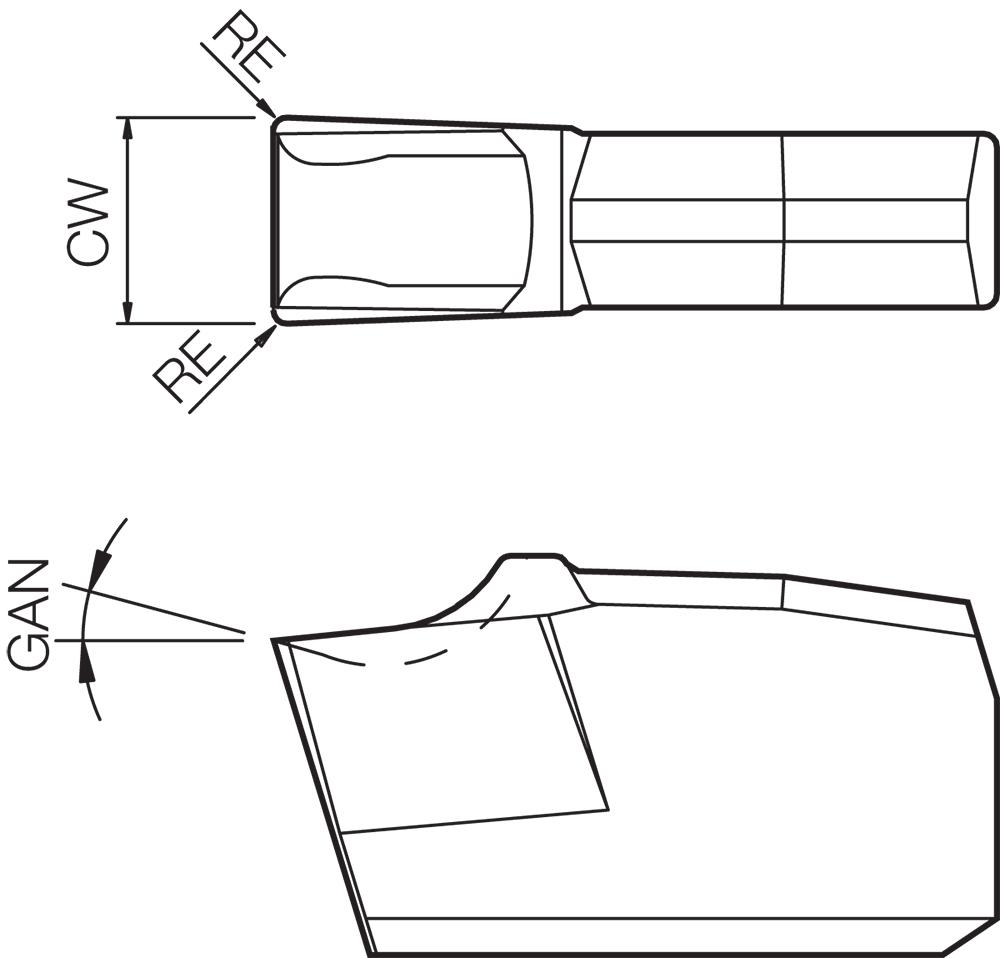

[CWN] Cutting Width Minimum (Decimal Inch):

0.0630

[CWN] Cutting Width Minimum (mm):

1.60

[CWX] Cutting Width Maximum (Decimal Inch):

0.0630

[CWX] Cutting Width Maximum (mm):

1.60

[CW] Cutting Width (Decimal Inch):

0.0630

[CW] Cutting Width (mm):

1.60

[EPSR] Insert Included Angle (Degree):

[RE] Corner Radius:

0.006"

[RE] Corner Radius (mm):

0.15

Manufactured By:

KYOCERA Precision Tools
