KYOCERA Precision Tools TKE15290 by KYOCERA Precision Tools

Call For Price

Part Number: TKE15290
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

Kyocera VNFGR 081010 PR1225 Grade PVD Carbide, Micro Face Grooving Bar
Kyocera VNFGR 081010 PR1225 Grade PVD Carbide, Right-Hand, Micro Face Grooving Bar with a 8.00mm Minimum Face Groove Diameter for Small Diameter Face Grooving in (P) Steel, (M) Stainless Steel, (H) Hardened Materials

Specifications

Details

Coating Process:

PVD

Insert Holding Method:

Screw

Material:

Carbide

Number of Cutting Edges:

Primary Workpiece Material:

(P) Steel|(M) Stainless Steel

Additional Manufacturer Part Number:

8846520

ANSI Part Number:

VNFGR081010PR1225

Application:

Micro Face Grooving

California Prop 65 Item:

Yes

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Discount Category Description:

Carbide / Cermet

ECCN:

EAR99

Feature 1:

PVD Carbide PR1225 Grade Swiss IQ Bars provide efficient Small Diameter Face Grooving of Steel, Stainless Steel

Feature 2:

8.00mm Minimum Face Groove Diameter

Feature 3:

Compatible with S…-SVNR… Sleeves

Grooving Type:

Internal Face Grooving

Hand:

Right-Hand

Harmonized Code:

8209.00.0030

Insert Grade:

PR1225

ISO Part Number:

VNFGR0810-10

Material Group / Grade:

PR1225

Min Order Qty:

Origin:

JPN

Pack Height:

0.394

Pack Length:

3.071

Pack Width:

2.953

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8846520

Series Description:

VNFG Micro Grooving

Series.1:

VNFG

Shipping Weight:

0.1702

Tool Style:

VNFG

Unit (inch/mm):

UNSPSC:

27112232

UNSPSC Title:

Groover

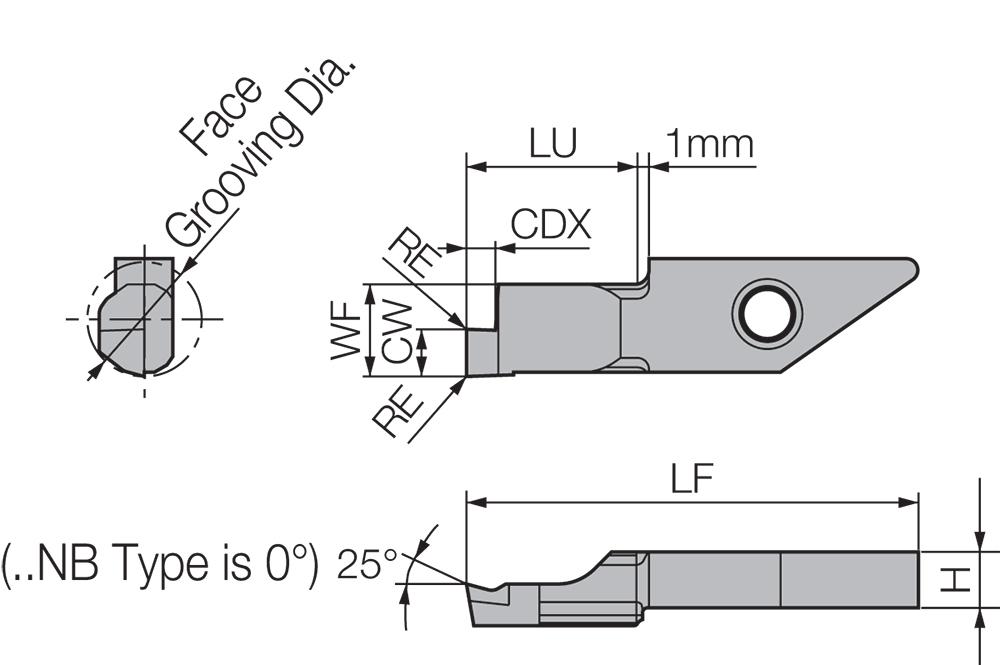

[CDX] Max Depth of Cut (Decimal Inch):

0.0787

[CDX] Max Depth of Cut (mm):

2.00

[CWN] Cutting Width Minimum (Decimal Inch):

0.0394

[CWN] Cutting Width Minimum (mm):

1.00

[CWX] Cutting Width Maximum (Decimal Inch):

0.0394

[CWX] Cutting Width Maximum (mm):

1.00

[CW] Cutting Width (Decimal Inch):

0.0394

[CW] Cutting Width (mm):

1.00

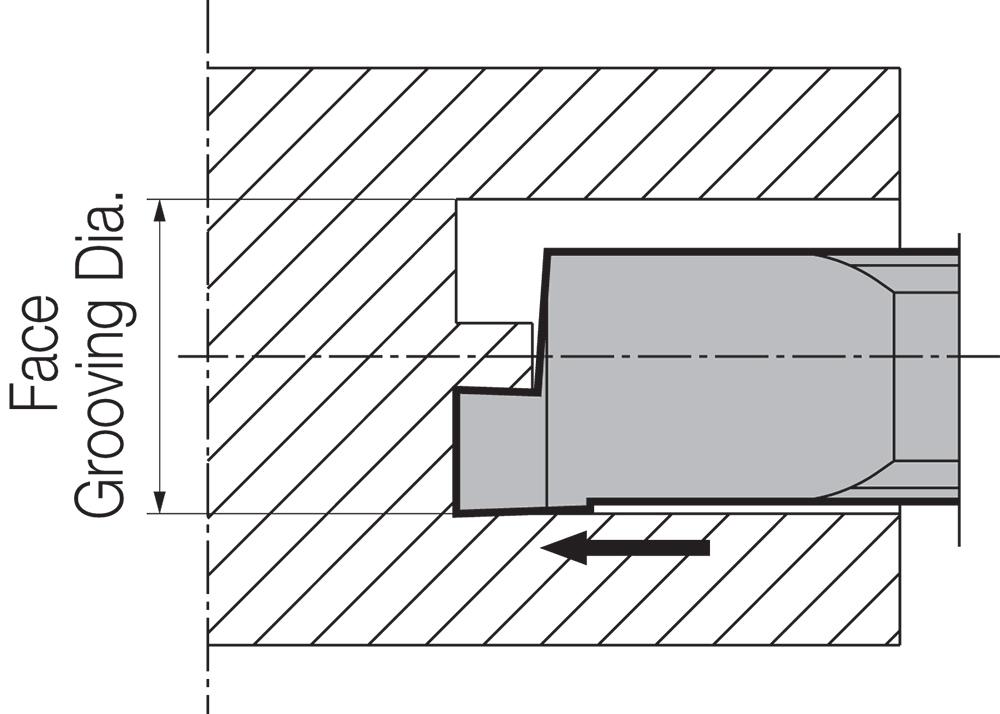

[DAXN] Minimum Face Groove Diameter (Decimal Inch):

0.3150

[DAXN] Minimum Face Groove Diameter (mm):

8.00

[DAXX] Maximum Face Groove Diameter (Decimal Inch):

No Maximum

[DAXX] Maximum Face Groove Diameter (mm):

No Maximum

[H] Shank Height (Decimal Inch):

0.1535

[H] Shank Height (mm):

3.90

[KAPR] Tool Entering Angle (Degree):

[LU] Usable Length (Decimal Inch):

0.3937

[LU] Usable Length (mm):

10.00

[RE] Corner Radius:

0.002"

[RE] Corner Radius (mm):

0.05

Manufactured By:

KYOCERA Precision Tools
