KYOCERA Precision Tools THD11821 by KYOCERA Precision Tools
Call For Price
- Part Number: THD11821
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

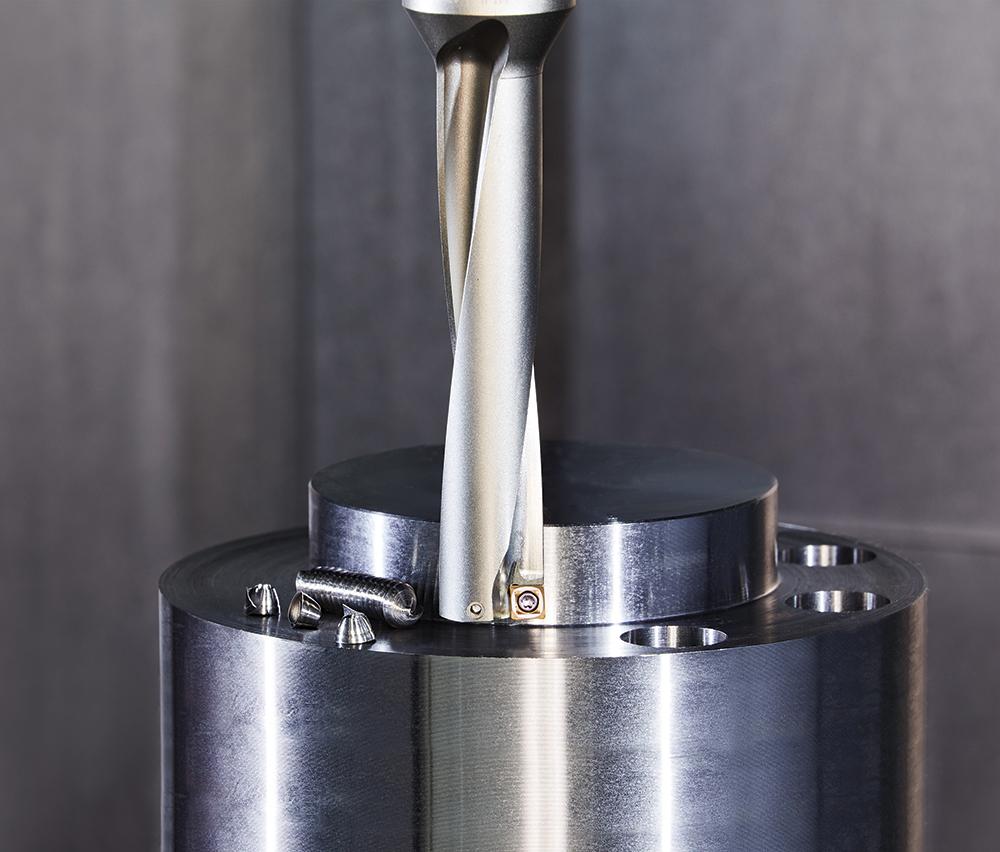

Kyocera S075DRV0578603, DRV Magic Drill 0.5781" Cutting Diameter, 6xD, Coolant-Through Indexable Insert Drill
Kyocera S075DRV0578603, DRV Magic Drill 0.5781" Cutting Diameter, 0.7500" Shank Diameter, 6xD, Coolant-Through Indexable Insert Drill
Kyocera S075DRV0578603, DRV Magic Drill 0.5781" Cutting Diameter, 0.7500" Shank Diameter, 6xD, Coolant-Through Indexable Insert Drill
Specifications
Details
Category:
Grooving
Subcategory:
Indexable Cutting Tools
Subtype:
Micro Face Grooving Toolholders
Drill Depth by Diameter Ratio:
6xD
Insert Holding Method:
Screw
Material:
Steel
Number of Flutes:
2
Shank Type:
Standard Length
Additional Manufacturer Part Number:
8868231
ANSI Part Number:
S075DRV0578604
Application:
Drilling
California Prop 65 Item:
No
Coolant Through (Yes/No):
Yes
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Steel / Hardware
ECCN:
EAR99
Hand:
Right-Hand
Harmonized Code:
8466.10.0130
ISO Part Number:
S075-DRV0578-6-04
Material Group / Grade:
GR99
Min Order Qty:
1
Number of Inserts:
2
Origin:
JP
Pack Height:
1.535
Pack Length:
6.299
Pack Width:
1.535
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8868231
Series Description:
DRV Magic Drill
Series.1:
DRV
Shipping Weight:
0.5381
Tool Style:
DRV
Unit (inch/mm):
inch
UNSPSC:
23291503
UNSPSC Title:
Indexable Insert Drill
Video 1:
https://www.youtube.com/watch?v=PXYiIqN4U8A
Video 2:
https://www.youtube.com/watch?v=Y7H1qU6f-Ek
Video 3:
https://www.youtube.com/watch?v=IAcNPAF3VyQ
Weldon Flat:
Yes

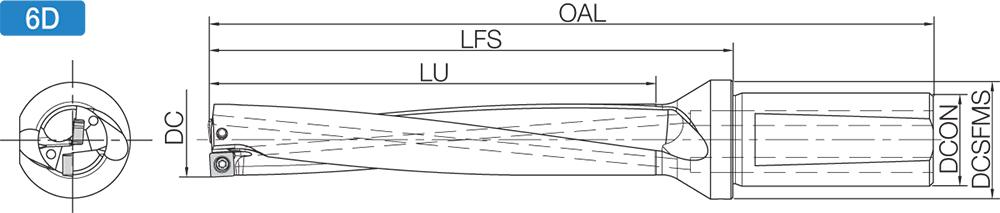

[DCN] Cutting Diameter Minimum (Decimal Inch):
0.5780
[DCN] Cutting Diameter Minimum (mm):
14.68
[DCON] Connection Diameter (Decimal Inch):
0.7500
[DCON] Connection Diameter (mm):
19.05
[DCSFMS] Contact Surface Diameter Machine Side (De:
1.0630
[DCSFMS] Contact Surface Diameter Machine Side (mm:
27.00
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.5780
[DCX] Cutting Diameter Maximum (mm):
14.68
[DC] Cutting Diameter (Decimal Inch):
0.5780
[DC] Cutting Diameter (mm):
14.68
[LU] Usable Length (Decimal Inch):
3.4685
[LU] Usable Length (mm):
88.10
Manufactured By:
KYOCERA Precision Tools
