KYOCERA Precision Tools THC14632 by KYOCERA Precision Tools
Call For Price
- Part Number: THC14632
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

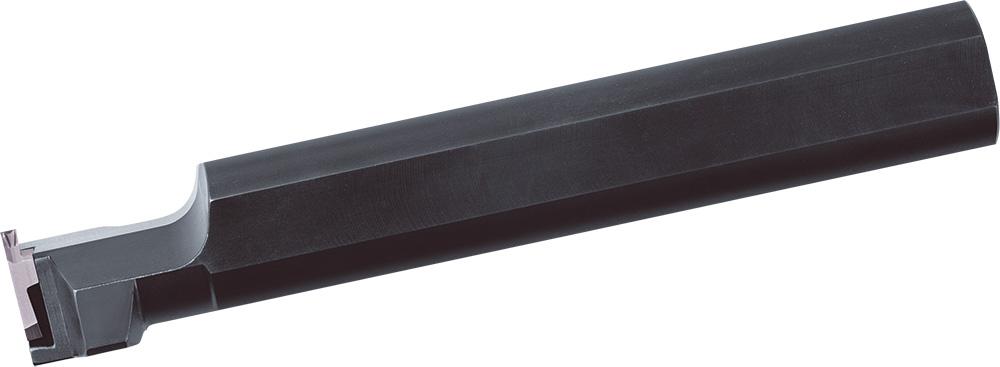

Kyocera S16FKGBFL16, External Grooving ToolholderKyocera S16FKGBFL16, Left-Hand, External Grooving Toolholder with a 3.00mm Max Depth of Cut for Shallow Grooving in Small Parts Applications
Specifications
Details
Category:
Grooving
Subcategory:
Indexable Cutting Tools
Subtype:
External Grooving Round Shank Toolholders
Insert Holding Method:
Screw
Material:
Steel
Additional Manufacturer Part Number:
8867264
ANSI Part Number:
S16FKGBFL16
Application:
Shallow Grooving|Small Parts Machining
California Prop 65 Item:
No
Coolant Through (Yes/No):
No
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Steel / Hardware
ECCN:
EAR99
Feature 1:
High precision grooving with insert width tolerance of +/- 0.02mm
Feature 2:
Stable chip control and low cutting force design
Feature 3:
Sleeve style design
Feature 4:
Compatible with Right-Hand GBF32R… Inserts
Grooving Type:
External Grooving
Hand:
Left-Hand
Harmonized Code:
8466.10.0130
ISO Part Number:
S16F-KGBFL16
Material Group / Grade:
GR99
Min Order Qty:
1
Origin:
CHN
Pack Height:
1.535
Pack Length:
8.268
Pack Width:
1.535
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8867264
Series Description:
GBF Grooving
Series.1:
GBF
Shipping Weight:
0.3413
Tool Style:
S…KGBF
Unit (inch/mm):
mm
UNSPSC:
23242106
UNSPSC Title:
Indexable Tool Bodies or Holders

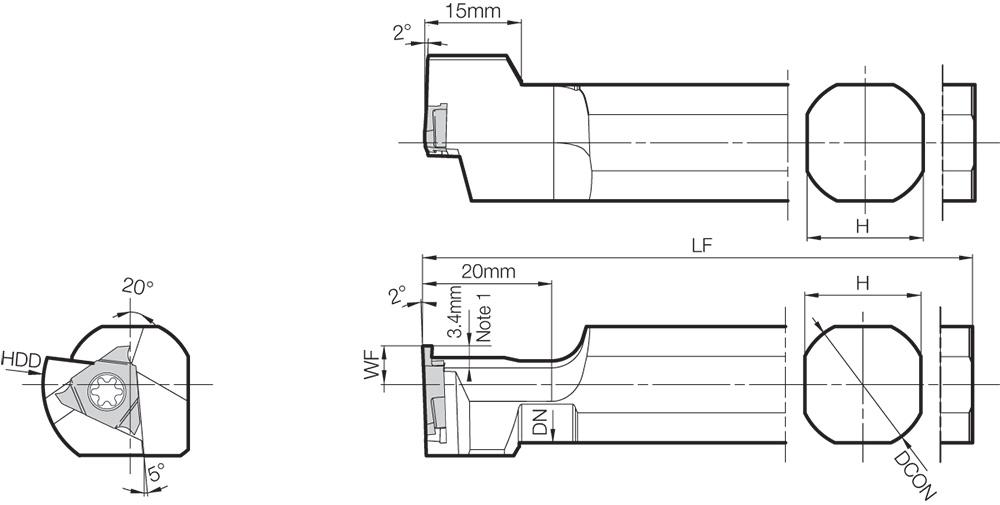

[DCON] Connection Diameter (Decimal Inch):
0.6299
[DCON] Connection Diameter (mm):
16.00
[H] Shank Height (Decimal Inch):
0.5906
[H] Shank Height (mm):
15.00
[LU] Usable Length (Decimal Inch):
0.7874
[LU] Usable Length (mm):
20.00
Manufactured By:
KYOCERA Precision Tools
