KYOCERA Precision Tools THC04156 by KYOCERA Precision Tools

Call For Price

Part Number: THC04156
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

Kyocera S12FSTWL15, Micro Face Grooving Toolholder
Kyocera S12FSTWL15, Left-Hand, Twin Bar, Micro Face Grooving Toolholder with a 3.00mm Max Depth of Cut for Face Grooving Applications

Specifications

Details

Insert Holding Method:

Screw

Material:

Steel

Additional Manufacturer Part Number:

8825098

ANSI Part Number:

S12FSTWL15

Application:

Micro Face Grooving

California Prop 65 Item:

Coolant Through (Yes/No):

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Discount Category Description:

Steel / Hardware

ECCN:

EAR99

Feature 1:

Left-Hand Micro Face Grooving Twin Bar

Feature 2:

3.00mm Max Depth of Cut

Feature 3:

Compatible with TWFGL... inserts

Grooving Type:

External Face Grooving

Hand:

Left-Hand

Harmonized Code:

8466.10.0130

ISO Part Number:

S12F-STWL15

Material Group / Grade:

GR99

Min Order Qty:

Origin:

JPN

Pack Height:

1.142

Pack Length:

5.906

Pack Width:

1.378

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8825098

Series Description:

STW Micro Grooving

Series.1:

STW

Shipping Weight:

0.1874

Tool Style:

S...STW

Unit (inch/mm):

UNSPSC:

23242106

UNSPSC Title:

Indexable Tool Bodies or Holders

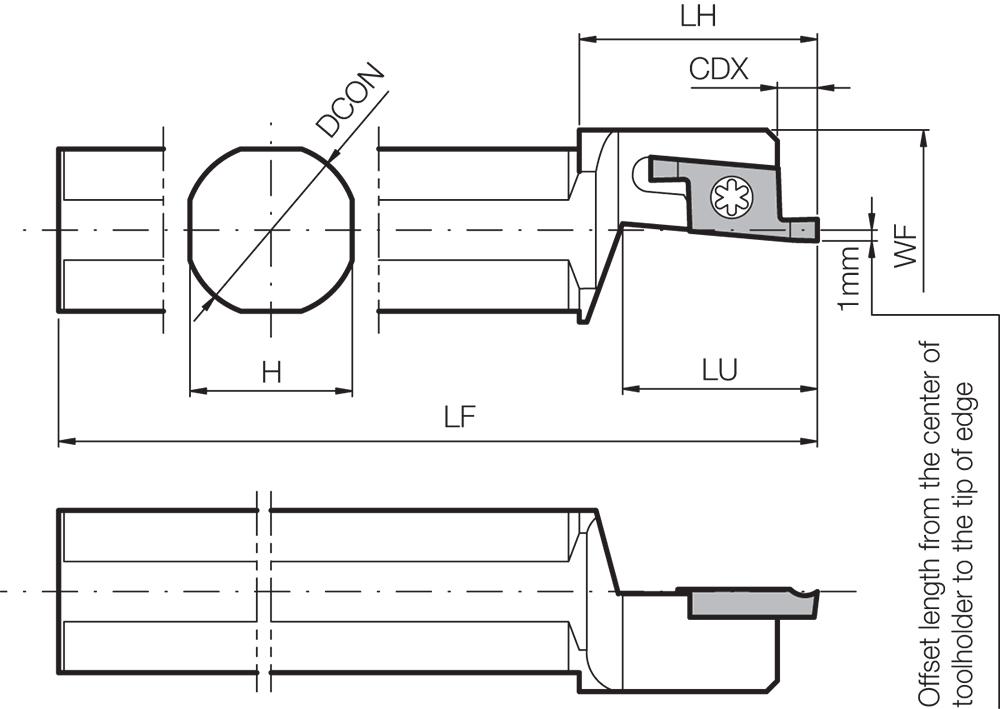

[CDX] Max Depth of Cut (Decimal Inch):

0.1181

[CDX] Max Depth of Cut (mm):

3.00

[CWN] Cutting Width Minimum (Decimal Inch):

0.0197

[CWN] Cutting Width Minimum (mm):

0.50

[CWX] Cutting Width Maximum (Decimal Inch):

0.0787

[CWX] Cutting Width Maximum (mm):

2.00

[CW] Cutting Width (Decimal Inch):

0.0197 - 0.0787

[CW] Cutting Width (mm):

0.50 - 2.00

[DCON] Connection Diameter (Decimal Inch):

0.4724

[DCON] Connection Diameter (mm):

12.00

[H] Shank Height (Decimal Inch):

0.4331

[H] Shank Height (mm):

11.00

[LU] Usable Length (Decimal Inch):

0.7087

[LU] Usable Length (mm):

18.00

Manufactured By:

KYOCERA Precision Tools
