KYOCERA Precision Tools 8858937 by KYOCERA Precision Tools

Call For Price

Part Number: 8858937
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

Kyocera XPMT 090208 CA6535 Grade CVD Carbide, Indexable Milling Insert
Kyocera XPMT 090208 CA6535 Grade CVD Carbide, Indexable Milling Insert, Parallelogram, Rake Angle, Neutral Milling Insert for Roughing in (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Details

Category:

Grooving

Subcategory:

Indexable Cutting Tools

Subtype:

Micro Face Grooving Toolholders

Coating Process:

CVD

Insert Holding Method:

Screw

Insert Shape:

Parallelogram

Material:

Carbide

Number of Cutting Edges:

Primary Workpiece Material:

(M) Martensitic Stainless Steel|(S) Heat-Resistant Alloy

Rake:

Positive

Additional Manufacturer Part Number:

8858937

ANSI Part Number:

XPMT090208CA6535

Application:

Chamfering|Countersinking|Facing|Shouldering|Slotting

California Prop 65 Item:

Yes

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Cutting Range:

Roughing

Discount Category Description:

Carbide / Cermet

ECCN:

EAR99

Feature 1:

Insert for Facing, Shouldering, Slotting, Chamfering, Countersinking

Feature 2:

2 Cutting Edges

Feature 3:

High heat resistance and wear resistance with CVD coating with improved stability due to thin film coating

Feature 4:

Application: CVD for Ni-base heat resistant alloy and martensitic stainless steel

Hand:

Right-Hand

Harmonized Code:

8209.00.0030

Insert Grade:

CA6535

Insert Size:

090208

ISO Part Number:

XPMT090208CA6535

Material Group / Grade:

CA6535

Min Order Qty:

Origin:

JPN

Pack Height:

0.394

Pack Length:

4.134

Pack Width:

1.772

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8858937

Series Description:

OTM Milling Inserts

Series.1:

OTMM

Shipping Weight:

0.2500

Tool Style:

XPMT

UNSPSC:

23291601

UNSPSC Title:

Milling Insert

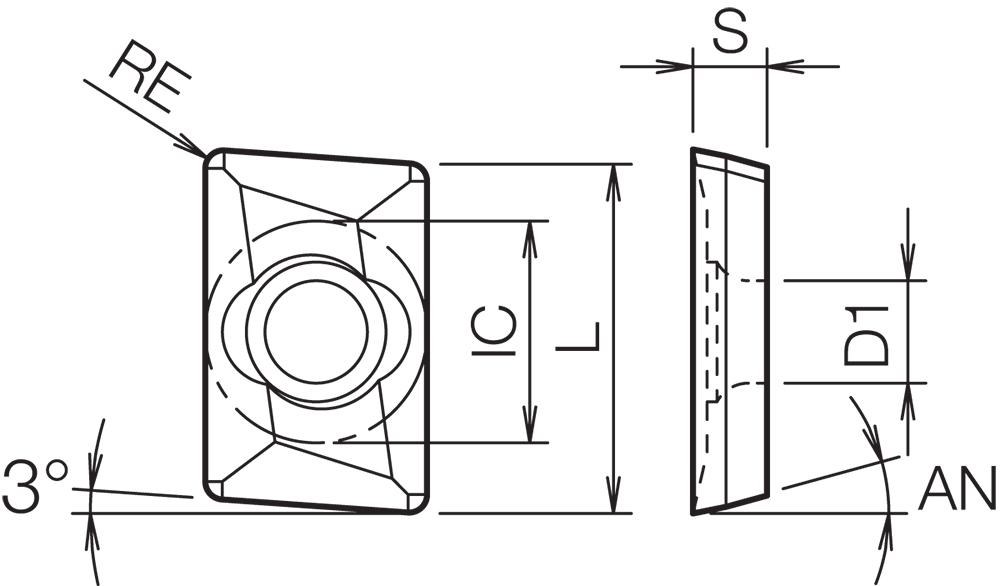

[IC] Inscribed Circle:

1/4"

[IC] Inscribed Circle (mm):

6.35

[INSL] Insert Length (Decimal Inch):

0.3750

[INSL] Insert Length (mm):

9.525

[RE] Corner Radius:

1/32"

[RE] Corner Radius (mm):

0.80

[S] Thickness:

3/32"

[S] Thickness (mm):

2.38

Manufactured By:

KYOCERA Precision Tools
