KYOCERA Precision Tools 8832914 by KYOCERA Precision Tools
Call For Price
- Part Number: 8832914
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

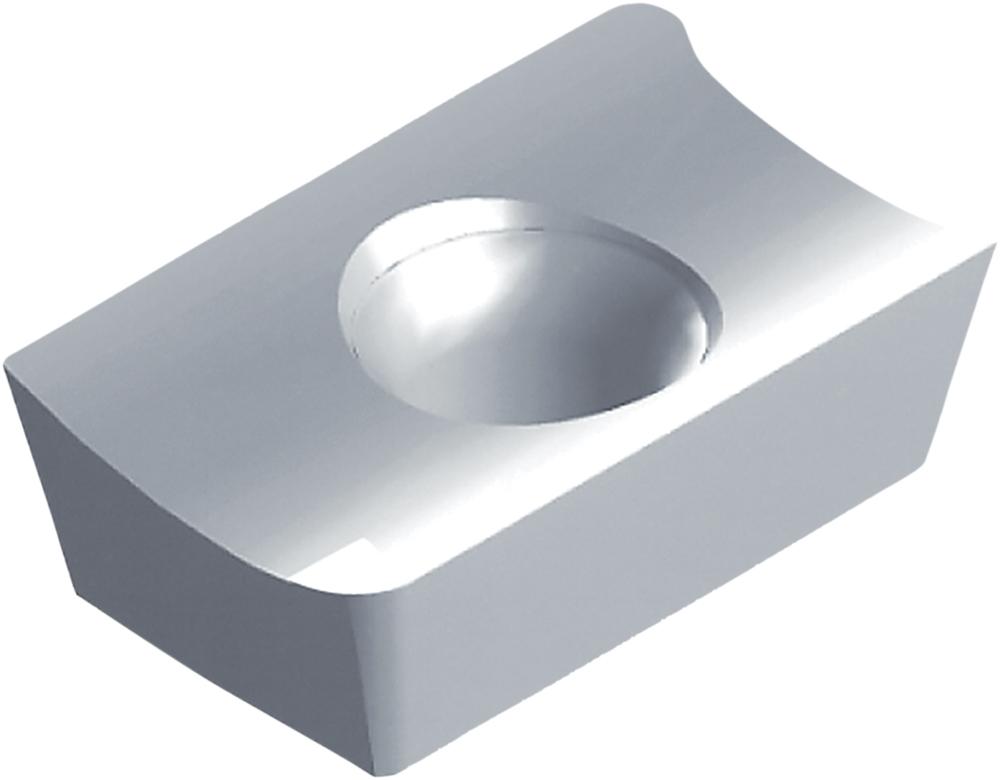

Kyocera APET 160416 KW10 Grade Uncoated Carbide, Indexable Milling Insert
Kyocera APET 160416 KW10 Grade Uncoated Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (N) Non-Ferrous Metals
Kyocera APET 160416 KW10 Grade Uncoated Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (N) Non-Ferrous Metals
Specifications
Details
Category:
Milling
Subcategory:
Indexable
Subtype:
Milling Indexable Inserts
Coating Process:
Uncoated
Insert Holding Method:
Screw
Insert Shape:
85 Degree Parallelogram
Material:
Carbide
Number of Cutting Edges:
2
Primary Workpiece Material:
(N) Non-Ferrous Materials
Rake:
Positive
Additional Manufacturer Part Number:
8832914
ANSI Part Number:
APET160416KW10
Application:
Chamfering|Countersinking|Facing|Shouldering|Slotting
California Prop 65 Item:
Yes
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Cutting Range:
Roughing
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Insert for Facing, Shouldering, Slotting, Chamfering, Countersinking
Feature 2:
2 Cutting Edges
Feature 3:
ISO identification symbol K carbide (K10 relevant)
Feature 4:
Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys
Hand:
Right-Hand
Harmonized Code:
8209.00.0030
Insert Grade:
KW10
Insert Size:
160416
ISO Part Number:
APET160416
Material Group / Grade:
KW10
Min Order Qty:
10
Origin:
JPN
Pack Height:
0.394
Pack Length:
4.134
Pack Width:
1.772
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8832914
Series Description:
OTM Aluminum Milling Inserts
Series.1:
OTMA
Shipping Weight:
0.1887
Tool Style:
APET
UNSPSC:
23291601
UNSPSC Title:
Milling Insert

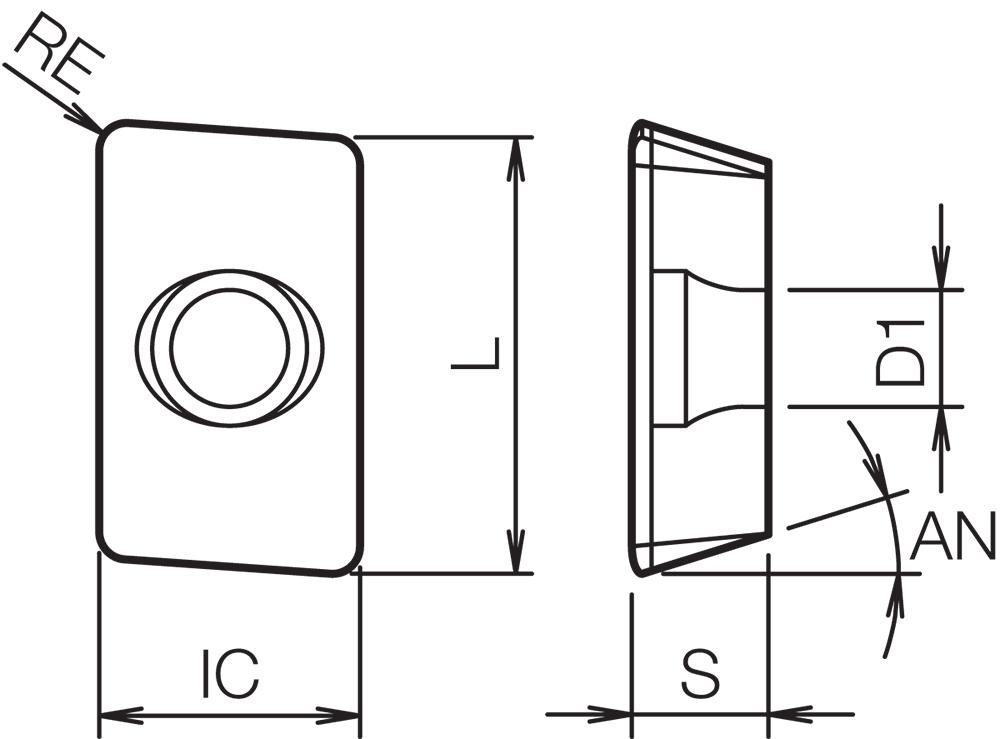

[EPSR] Insert Included Angle (Degree):
85
[IC] Inscribed Circle:
3/8"
[IC] Inscribed Circle (mm):
9.525
[INSL] Insert Length (Decimal Inch):
0.6299
[INSL] Insert Length (mm):
16.00
[RE] Corner Radius:
1/16"
[RE] Corner Radius (mm):
1.60
[S] Thickness:
3/16"
[S] Thickness (mm):
4.76
Manufactured By:
KYOCERA Precision Tools
