KYOCERA Precision Tools 8801370 by KYOCERA Precision Tools
Call For Price
- Part Number: 8801370
- UPC:
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

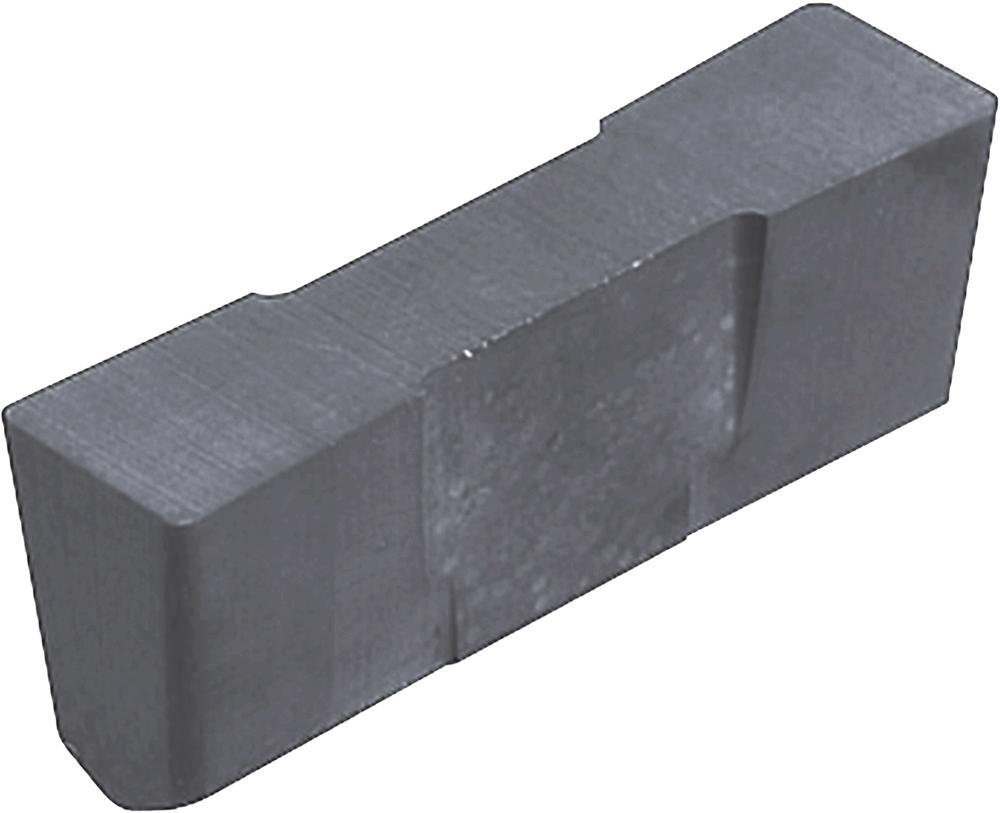

Kyocera GH 312R15 TC40 Grade Uncoated Cermet, Indexable Grooving Insert
Kyocera GH 312R15 TC40 Grade Uncoated Cermet, 0.3125" Groove Width, Right-Hand Grooving Insert for Continuous and Finishing in (P) Steel and (K) Cast Iron
Kyocera GH 312R15 TC40 Grade Uncoated Cermet, 0.3125" Groove Width, Right-Hand Grooving Insert for Continuous and Finishing in (P) Steel and (K) Cast Iron
Specifications
Details
Category:
Grooving
Subcategory:
Indexable Cutting Tools
Subtype:
Grooving Inserts
Coating Process:
Uncoated
Insert Holding Method:
Clamp
Material:
Cermet
Number of Cutting Edges:
2
Primary Workpiece Material:
(P) Steel
Rake:
Positive
Additional Manufacturer Part Number:
8801370
ANSI Part Number:
GH312R15TC40
Application:
External Grooving
California Prop 65 Item:
Yes
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Cutting Range:
Finishing
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Insert for External Grooving
Feature 2:
Ground Chipbreaker
Feature 3:
2 Cutting Edges
Feature 4:
Good balance of wear resistance and toughness
Feature 5:
Application: Grooving and threading of steel
Full Radius:
No
Hand:
Right-Hand
Harmonized Code:
8209.00.0060
Insert Grade:
TC40
Insert Size:
312
ISO Part Number:
GH312R15
Material Group / Grade:
TC40
Min Order Qty:
10
Origin:
JPN
Pack Height:
0.394
Pack Length:
4.134
Pack Width:
1.772
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8801370
Series Description:
Lever Lock Toolholder
Series.1:
LLTH
Shipping Weight:
0.2500
Tool Style:
GH
Unit (inch/mm):
inch
UNSPSC:
23242107
UNSPSC Title:
Insert Carbide
Usage Classification:
Continuous

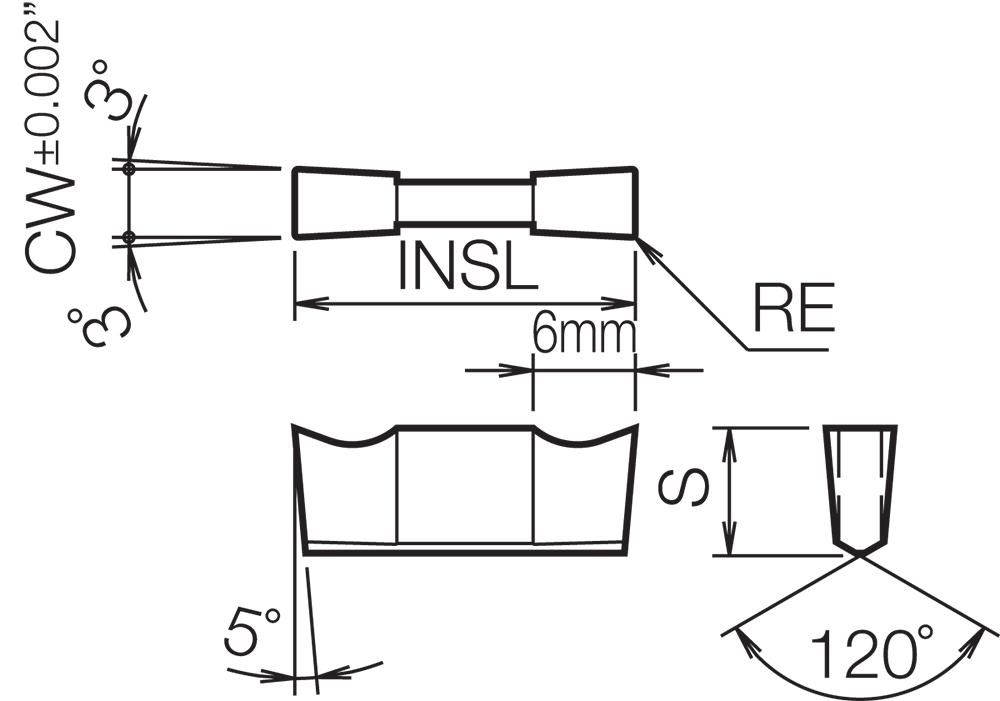

[CWN] Cutting Width Minimum (Decimal Inch):
0.3126
[CWN] Cutting Width Minimum (mm):
7.94
[CWX] Cutting Width Maximum (Decimal Inch):
0.3126
[CWX] Cutting Width Maximum (mm):
7.94
[CW] Cutting Width (Decimal Inch):
0.3126
[CW] Cutting Width (mm):
7.94
[INSL] Insert Length (Decimal Inch):
0.7874
[INSL] Insert Length (mm):
20.00
[RE] Corner Radius:
0.015"
[RE] Corner Radius (mm):
0.38
[S] Thickness:
0.295"
[S] Thickness (mm):
7.50
Manufactured By:
KYOCERA Precision Tools
