KYOCERA Precision Tools 8800821 by KYOCERA Precision Tools

Call For Price

Part Number: 8800821
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

Kyocera DB 125R15T00420 A65 Grade Uncoated Ceramic, Indexable Grooving Insert
Kyocera DB 125R15T00420 A65 Grade Uncoated Ceramic, 0.1252" Groove Width, Right-Hand Grooving Insert for Continuous and Finishing in (K) Cast Iron and (H) Hardened Materials

Specifications

Details

Category:

Cutting Tools

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Inserts

Coating Process:

Uncoated

Insert Holding Method:

Clamp

Material:

Ceramic

Number of Cutting Edges:

Primary Workpiece Material:

(K) Cast Iron

Rake:

Positive

Additional Manufacturer Part Number:

8800821

ANSI Part Number:

DB125R15T00420A65

Application:

External Grooving

California Prop 65 Item:

Yes

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Cutting Range:

Finishing

Discount Category Description:

Ceramic

ECCN:

EAR99

Feature 1:

Insert for External Grooving

Feature 2:

2 Cutting Edges

Feature 3:

Aluminum oxide and titanium carbide ceramic (Al2O3+TiC)

Feature 4:

Application: Semi-roughing to finishing of steel, cast iron, and hard materials

Full Radius:

Hand:

Right-Hand

Harmonized Code:

6909.12.0000

Insert Grade:

A65

Insert Size:

125

ISO Part Number:

DB125R15T00420

Material Group / Grade:

A65

Min Order Qty:

Origin:

JPN

Pack Height:

0.433

Pack Length:

4.331

Pack Width:

2.047

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8800821

Series Description:

KDB Grooving

Series.1:

KDB

Shipping Weight:

0.1124

Tool Style:

Unit (inch/mm):

inch

UNSPSC:

23242108

UNSPSC Title:

Insert Ceramic

Usage Classification:

Continuous

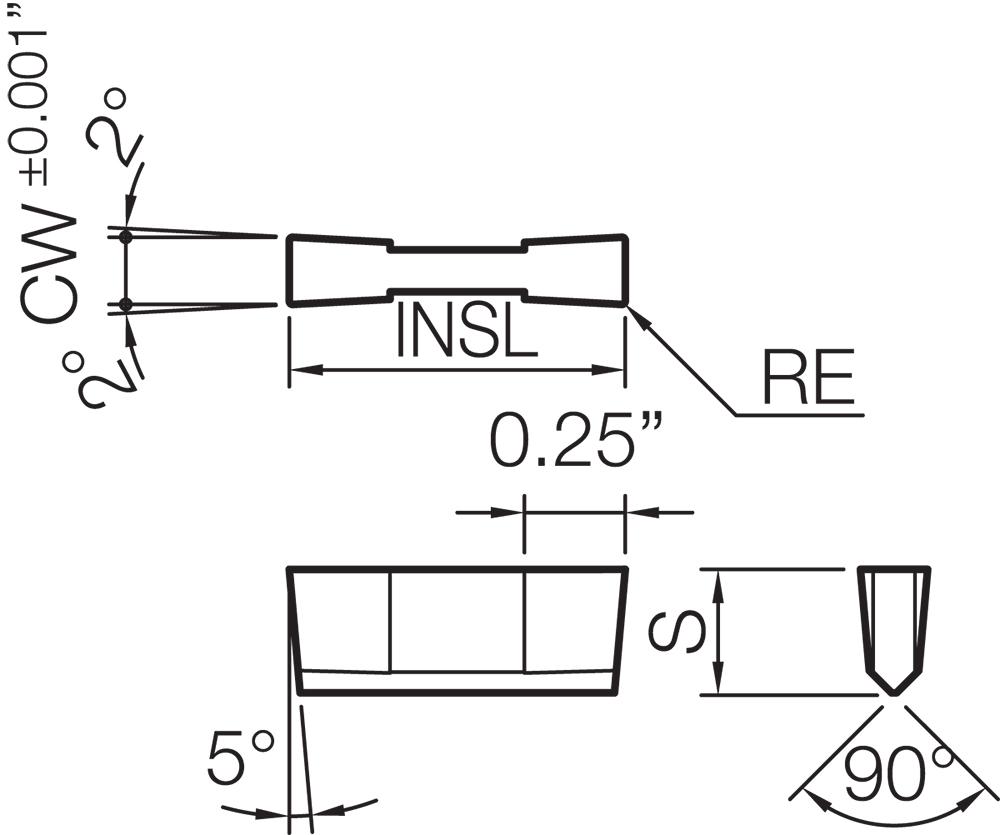

[CDX] Max Depth of Cut (Decimal Inch):

0.7480

[CDX] Max Depth of Cut (mm):

19.00

[CWN] Cutting Width Minimum (Decimal Inch):

0.1252

[CWN] Cutting Width Minimum (mm):

3.18

[CWX] Cutting Width Maximum (Decimal Inch):

0.1252

[CWX] Cutting Width Maximum (mm):

3.18

[CW] Cutting Width (Decimal Inch):

0.1252

[CW] Cutting Width (mm):

3.18

[INSL] Insert Length (Decimal Inch):

1.1252

[INSL] Insert Length (mm):

28.58

[RE] Corner Radius:

0.015"

[RE] Corner Radius (mm):

0.38

[S] Thickness:

1/4"

[S] Thickness (mm):

6.35

Manufactured By:

KYOCERA Precision Tools
