KMT-6423303

KMT-6423303 by Kennametal

Call For Price

Part Number: 6423303
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

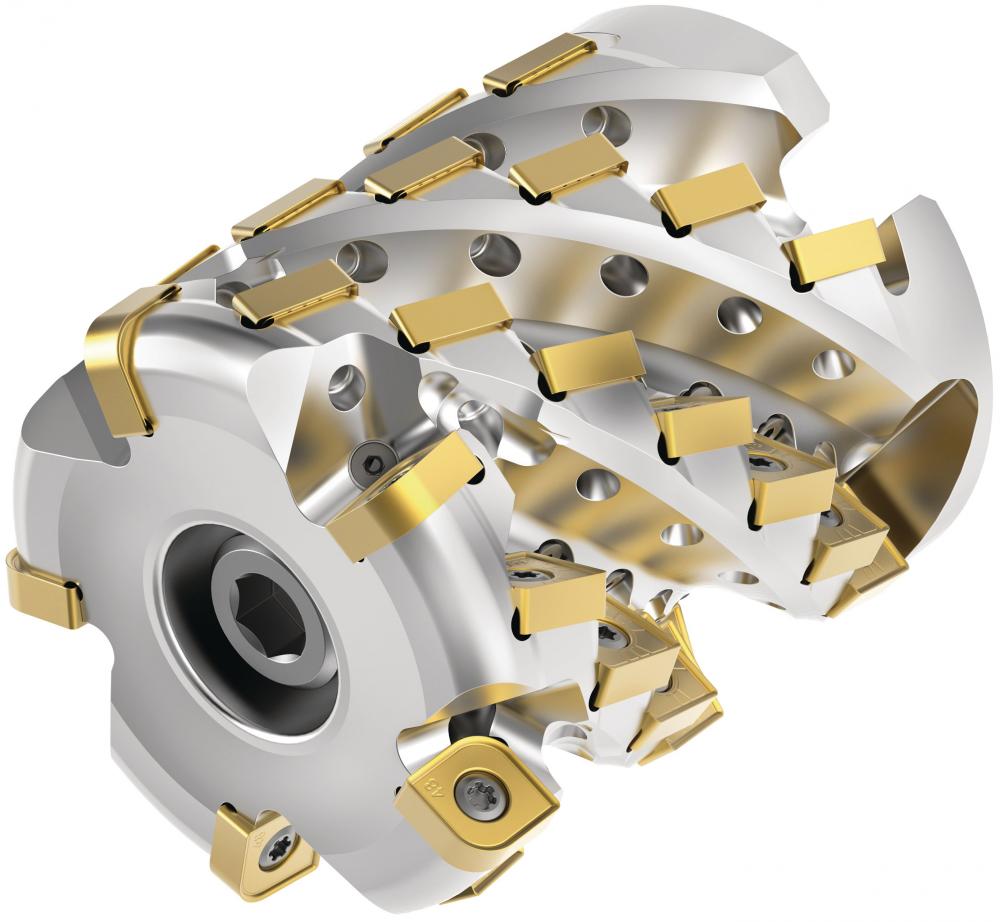

HU8X IC12 SM D63 L81 ZU4 Z32 R Cutter

Specifications

Details

Category:

Milling

Subcategory:

Solid

Subtype:

Milling Cutters

Insert Shape:

S-Square 90

Number of Flutes:

4

Adapter Style Machine Side:

A-Socket Head Cap Screw

Adapter Style Machine Side-Marcom Calc:

A-Socket Head Cap Screw

Adapter Type Machine Side:

Shell Mill

Body Material Group:

Steel

Catalog Gage Insert 1:

SNHJ120624SNGDH

Catalog Gage Insert 2:

SNHJ120608SNGDH

Center Cutting Tool:

No Center Cutting

Clamping Type:

S - Screw Clamping

Coolant Supply:

Yes

Engineering Tool Family:

HU8X

Hand of Tool:

R - Right

Helix Hand:

R - Right Hand Helix/Flute

Insert Shape - Marcom Calc:

Square 90

IntFace Catalog Gage Insert 1:

SNHJ120624SNGDH

ISO Catalog Number:

HU8X063S12S27ZU4AP81Z32R

MAR_PLATFORM_KMT:

HARVI Ultra 8X

Max RPM:

14600

Milling Type:

E-End Mill

Number of Adjustable Inserts:

0

Number of Center Cutting Edges:

0

Number of Inserts:

32

[A1]Coolant Hole Dia. Exit In:

0.0550

[A1]Coolant Hole Dia. Exit mm:

1.4000

[AP1MAX]1st Max Cut Depth In:

3.1960

[AP1MAX]1st Max Cut Depth mm:

81.1800

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[D1]Effective Cutting Dia In:

2.4800

[D1]Effective Cutting Dia mm:

63.0000

[D2]Body Diameter Max Inch:

2.3530

[D2]Body Diameter Max Metric:

59.7700

[D6] Hub Diameter Inch:

2.3620

[D6] Hub Diameter Metric:

60.0000

[D]Adapter/Shank/Bore Dia Inch:

1.0630

[D]Adapter/Shank/Bore Dia mm:

27.0000

[GAMMAF] Radial Rake Angle:

-10.000

[GAMMAP] Axial Rake Angle:

-6.000

[KRA] Lead Angle ANSI:

0.000

[KRI] Lead Angle ISO:

90.000

[L1]Gage Length Inch:

3.7390

[L1]Gage Length Metric:

95.0000

[LF]Functional Length Inch:

3.7390

[LF]Functional Length Metric:

95.0000

[LTA]Tool Assembly Length Inch:

3.7390

[LTA]Tool Assembly Length mm:

95.0000

[L] Overall Length Inch:

3.7390

[L] Overall Length Metric:

95.0000

Manufactured By:

Kennametal
