KMT-6303102 by Kennametal

341

/ 1

Part Number: 6303102
UPC:
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

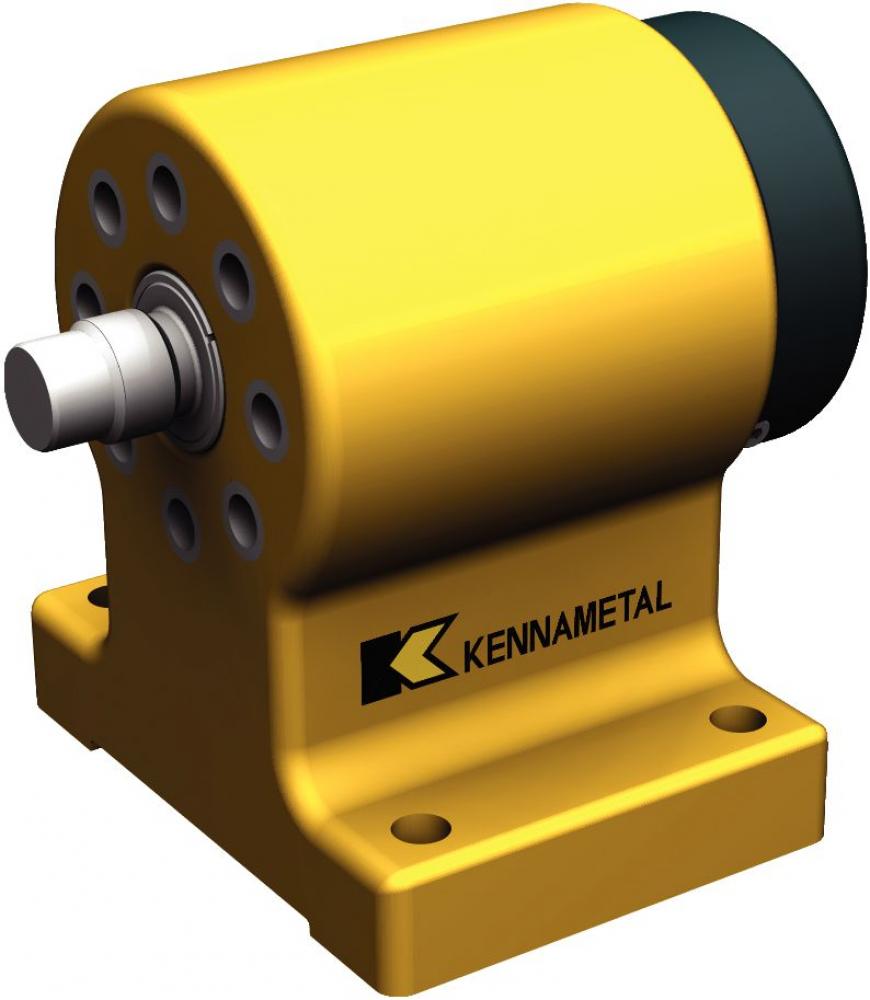

ASSEMBLY STATION TABLE MOUNTING BASE

Specifications

Details

Category:

Tooling Systems

Subcategory:

Tool Holder Accessories

Subtype:

Cooling System Accessories

ISO Catalog Number:

ASTMB

MAR_PLATFORM_KMT:

Assembly Station

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[H2] Overall Height Inch:

5.9060

[H2] Overall Height Metric:

150.0000

[L1]Gage Length Inch:

5.1220

[L1]Gage Length Metric:

130.1000

[L] Overall Length Inch:

6.2910

[L] Overall Length Metric:

159.8000

[W1]Unit Base Width Inch:

5.5120

[W1]Unit Base Width Metric:

140.0000

[W2]Unit Base Depth Inch:

4.0550

[W2]Unit Base Depth Metric:

103.0000

[W]Overall Width Inch:

5.5120

[W]Overall Width Metric:

140.0000

Manufactured By:

Kennametal
