KMT-4050455

KMT-4050455 by Kennametal

$

16

60

/ 1

Part Number: 4050455
UPC:
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

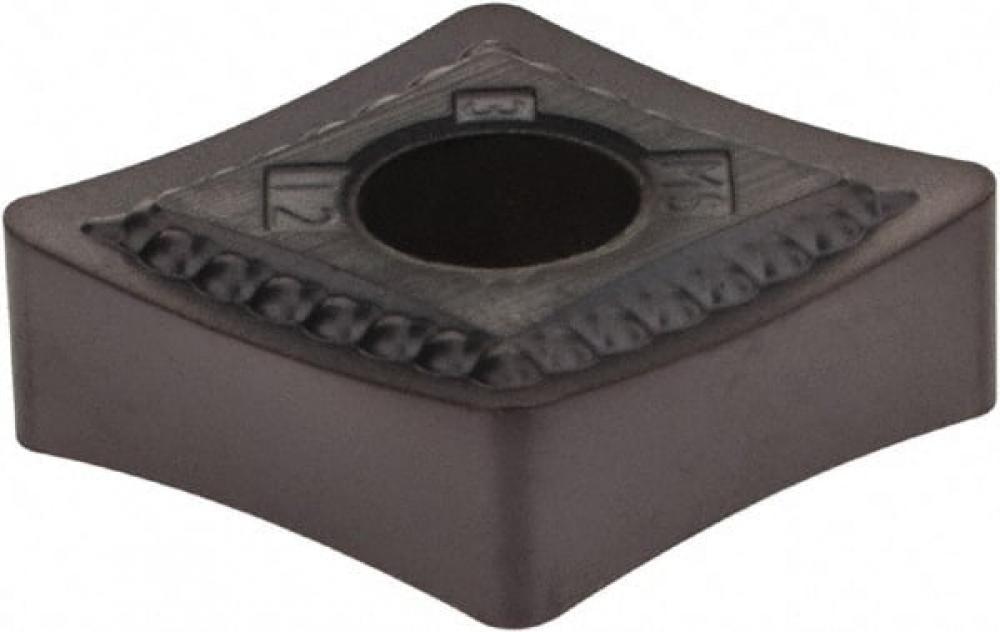

ANSI/ISO Turning Insert CN..

Specifications

Details

Category:

Turning

Subcategory:

External Turning

Subtype:

Turning Indexable Inserts

Corner Radius (Decimal Inch):

0.046875

Corner Radius (Inch):

Mar-64

Corner Radius (mm):

1.2

Grade:

KCU25

Hole Diameter (Decimal Inch):

0.2031

Hole Diameter (mm):

5.16

Inscribed Circle (Decimal Inch):

0.5

Inscribed Circle (Inch):

2-Jan

Inscribed Circle (mm):

12.7

Insert Hand:

N - Neutral

Insert Shape:

C-Diamond/Rhombic 80

Insert Thickness (Decimal Inch):

0.1875

Insert Thickness (Inch):

16-Mar

Insert Thickness (mm):

4.76

ISO Code:

CNMG120412MS

Chipbreaker Mfgr's Designation:

MS

Cutting Tool Material:

Carbide

Engineering Insert Geometry:

MG_MS

Hand of Tool:

N - Neutral

Insert Mounting:

2-Cylindrical Fixing Hole

Insert Num of Cutting Edges:

8

Insert Shape - Marcom Calc:

Diamond/Rhombic 80

Insert Shape-2:

Diamond/Rhombic 80

ISO Catalog Number:

CNMG120412MS

MAR_PLATFORM_KMT:

Kenloc

Secondary Workpiece Material:

Stainless Steel,High-Temp Alloys

Workpiece Material Facets - Secondary:

Stainless Steel,High-Temp Alloys

[ALPHANM] Clearance Ang Minor:

0.000

[ALPHAN] Clearance Angle Major:

0.000

[CUBMS]Unit of Tool:

B - Both Metric & Inch

[CUBWS]Units of Tool (Extract):

B - Both Metric & Inch

[D1] Insert Hole Size Inch:

0.2031

[D1] Insert Hole Size Metric:

5.1600

[D] Insert IC Size Fraction:

1/2

[D] Insert IC Size Inch:

0.5000

[D] Insert IC Size Metric:

12.7000

[L10] Ins Cut Edge Length In:

0.5077

[L10] Ins Cut Edge Length mm:

12.8960

[M] Insert Gage Dimens. Metric:

2.8670

[M] Insert Gage Dimension Inch:

0.1129

[REPSILON] Corner Radius Frac:

3/64

[REPSILON] Corner Radius Inch:

0.046875

[REPSILON] Corner Radius MM:

1.2000

[S] Insert Thickness Fraction:

3/16

[S] Insert Thickness Inch:

0.1875

[S] Insert Thickness Metric:

4.7600

Manufactured By:

Kennametal
