KMT-3769403

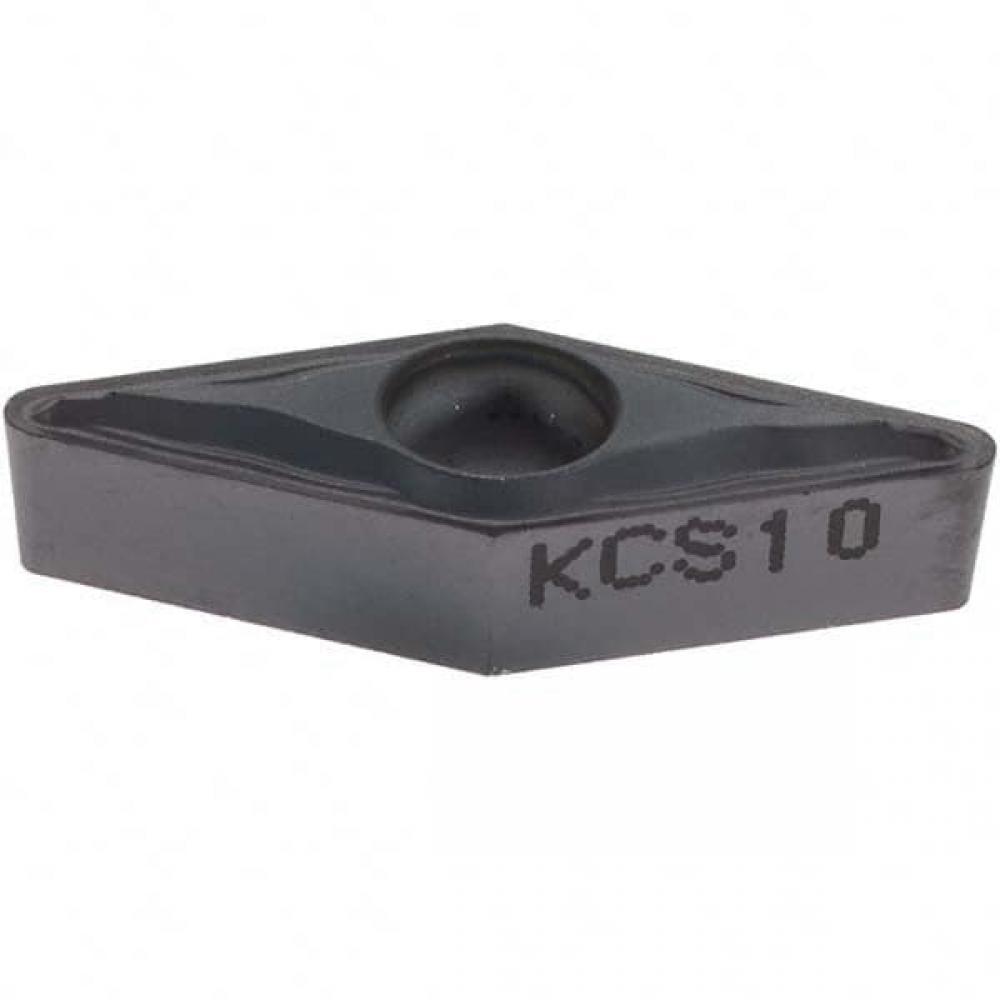

KMT-3769403 by Kennametal

$

23

15

/ 1

Part Number: 3769403
UPC:
Availability:

Nothing

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

ANSI/ISO Turning Insert VB..

Specifications

Details

Category:

Turning

Subcategory:

External Turning

Subtype:

Turning Indexable Inserts

Corner Radius (Decimal Inch):

0.03125

Corner Radius (Inch):

Jan-32

Corner Radius (mm):

0.8

Grade:

KCS10

Hole Diameter (Decimal Inch):

0.1102

Hole Diameter (mm):

2.8

Inscribed Circle (Decimal Inch):

0.25

Inscribed Circle (Inch):

4-Jan

Inscribed Circle (mm):

6.35

Insert Hand:

N - Neutral

Insert Shape:

Diamond/Rhombic 35

Insert Thickness (Decimal Inch):

0.125

Insert Thickness (Inch):

8-Jan

Insert Thickness (mm):

3.18

ISO Code:

VBMT110308FP

Primary Workpiece Material:

High-Temp Alloys

Chipbreaker Mfgr's Designation:

FP

Cutting Tool Material:

Carbide

Engineering Insert Geometry:

MT_FP

Hand of Tool:

N - Neutral

Insert Mounting:

3-Part Cycl w/40-60 TaperScrew

Insert Num of Cutting Edges:

2

Insert Shape - Marcom Calc:

Diamond/Rhombic 35

Insert Shape-2:

V-Diamond/Rhombic 35

ISO Catalog Number:

VBMT110308FP

MAR_PLATFORM_KMT:

Screw-On

Secondary Workpiece Material:

Stainless Steel

Workpiece Material Facets - Secondary:

Stainless Steel

[ALPHANM] Clearance Ang Minor:

5.000

[ALPHAN] Clearance Angle Major:

5.000

[CUBMS]Unit of Tool:

B - Both Metric & Inch

[CUBWS]Units of Tool (Extract):

B - Both Metric & Inch

[D1] Insert Hole Size Inch:

0.1102

[D1] Insert Hole Size Metric:

2.8000

[D] Insert IC Size Fraction:

1/4

[D] Insert IC Size Inch:

0.2500

[D] Insert IC Size Metric:

6.3500

[L10] Ins Cut Edge Length In:

0.4359

[L10] Ins Cut Edge Length mm:

11.0710

[M] Insert Gage Dimens. Metric:

5.5380

[M] Insert Gage Dimension Inch:

0.2180

[REPSILON] Corner Radius Frac:

1/32

[REPSILON] Corner Radius Inch:

0.031250

[REPSILON] Corner Radius MM:

0.8000

[S] Insert Thickness Fraction:

1/8

[S] Insert Thickness Inch:

0.1250

[S] Insert Thickness Metric:

3.1800

Manufactured By:

Kennametal
